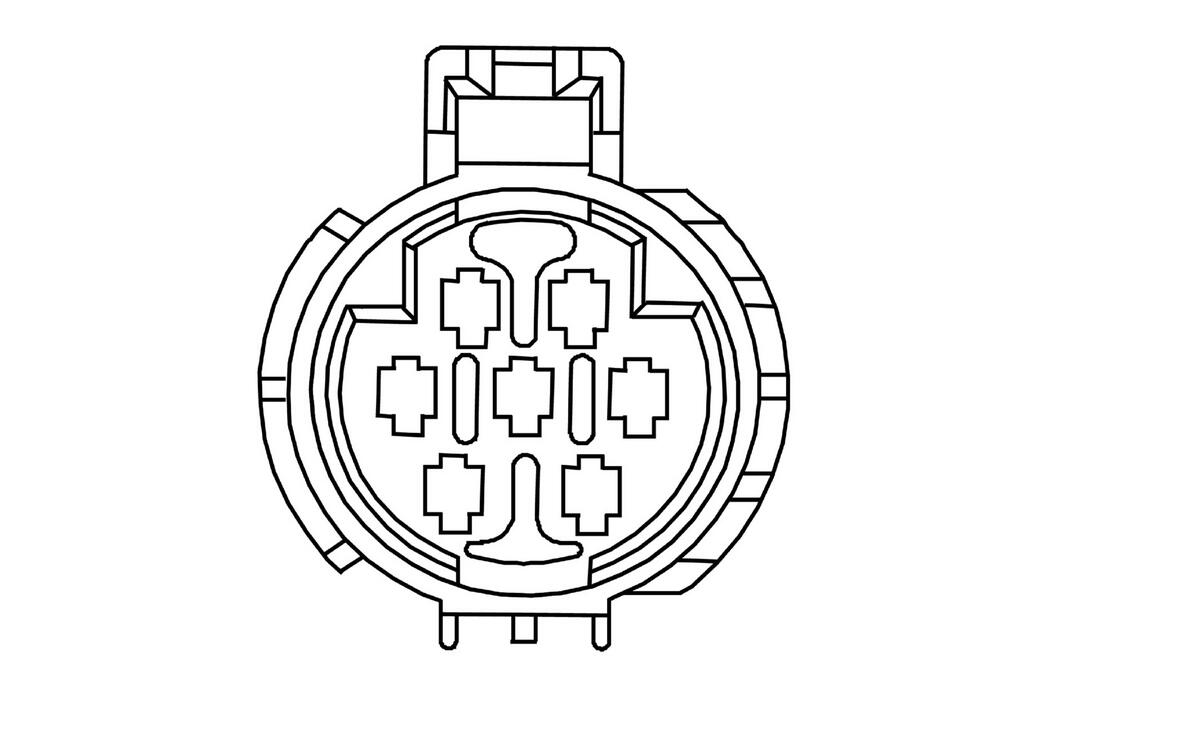

X150 Instrument Panel Harness to Forward Lamp Harness
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-4A (PU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| II | Not Required | J-35616-5 (PU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Terminal Type ID | Option | Function | Pin | Size | Color | Circuit | Terminal Type ID | Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0.5 | PK/BK | 109 | I | - | Hood Ajar Switch Signal Hood Ajar Switch Signal |
A | 0.5 0.5 |
PK/BK BN/GN |
109 109 |
II II |
BTV LV1 |
| B | 0.5 | PU | 5531 | I | - | Hood Closed Switch Signal Hood Closed Switch Signal |
B | 0.5 0.5 |
BK/BN VT |
5531 5531 |
II II |
BTV LV1 |
| C | 0.5 | BU/GY | 636 | I | - | Outside Ambient Air Temperature Sensor Signal Outside Ambient Air Temperature Sensor Signal |
C | 0.5 0.5 |
BU/GY GN/WH |
636 636 |
II II |
UFA LV1 |
| D | 0.5 | BK/D-BU | 61 | I | - | Outside Ambient Temperature Sensor Low Reference Outside Ambient Temperature Sensor Low Reference |
D | 0.5 0.5 |
BK/D-BU YE |
61 61 |
II II |
UFA LV1 |
| E | 0.5 | BK/YE | 407 | I | - | Sensor Low Reference | E | 0.5 | BK/YE | 407 | II | - |
| F | 0.5 | L-GN/BK | 735 | I | - | Outside Ambient Air Temperature Sensor Signal | F | 0.5 | L-GN/BK | 735 | II | - |
| G | - | - | - | - | - | Not Occupied | G | - | - | - | - | - |
