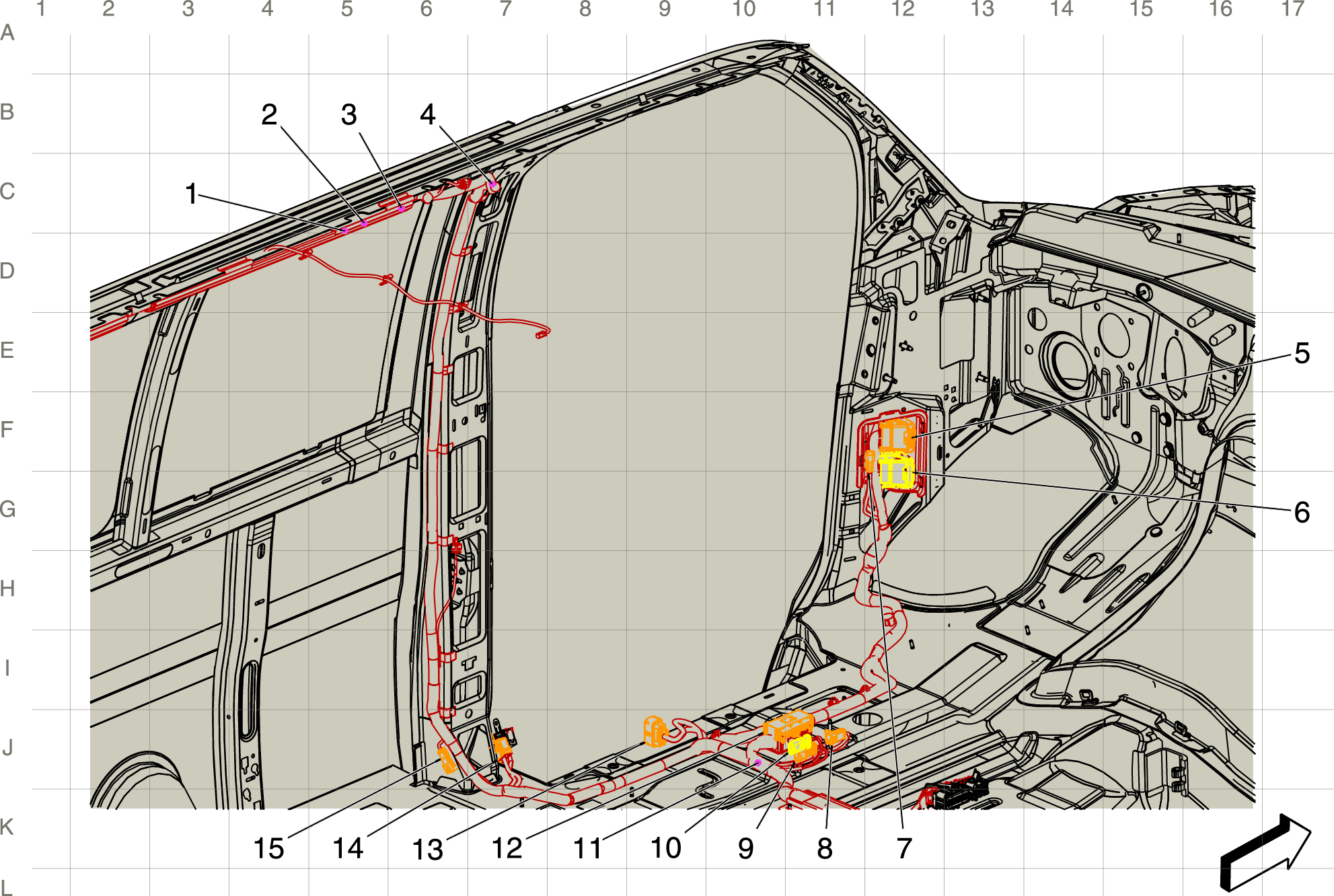

Body Harness Routing - Left Front Passenger Compartment
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J316 Body Harness (WRF) |
| 2. J356 Body Harness |
| 3. J313 Body Harness (WRF) |
| 4. J312 Body Harness (WRF) |
| 5. X318 Instrument Panel Harness to Body Harness X318 Instrument Panel Harness to Body Harness |
| 6. X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness |
| 7. X319 Auxiliary Heater Front Harness to Body Harness (ENC, C69, or C36) X319 Auxiliary Heater Front Harness to Body Harness |
| 8. X329 Instrument Panel Harness to Body Harness (UVC) X329 Instrument Panel Harness to Body Harness |
| 9. X330 Instrument Panel Harness to Body Harness X330 Instrument Panel Harness to Body Harness |
| 10. X331 Instrument Panel Harness to Body Harness X331 Instrument Panel Harness to Body Harness |
| 11. J334 Body Harness (UVC) |
| 12. X52A Fuse Block - Passenger Compartment X52A Fuse Block - Passenger Compartment X1X52A Fuse Block - Passenger Compartment X2X52A Fuse Block - Passenger Compartment X3 |
| 13. X307 Body Harness to Driver Seat Harness X307 Body Harness to Driver Seat Harness |
| 14. JX347 Body Harness JX347 Splice Pack |
| 15. X323 Air Bag Jumper Harness to Body Harness (ASF) X323 Air Bag Jumper Harness to Body Harness |
