Rear Floor Auxiliary Air Outlet Duct Replacement (Front Long Wheel Base Passenger)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

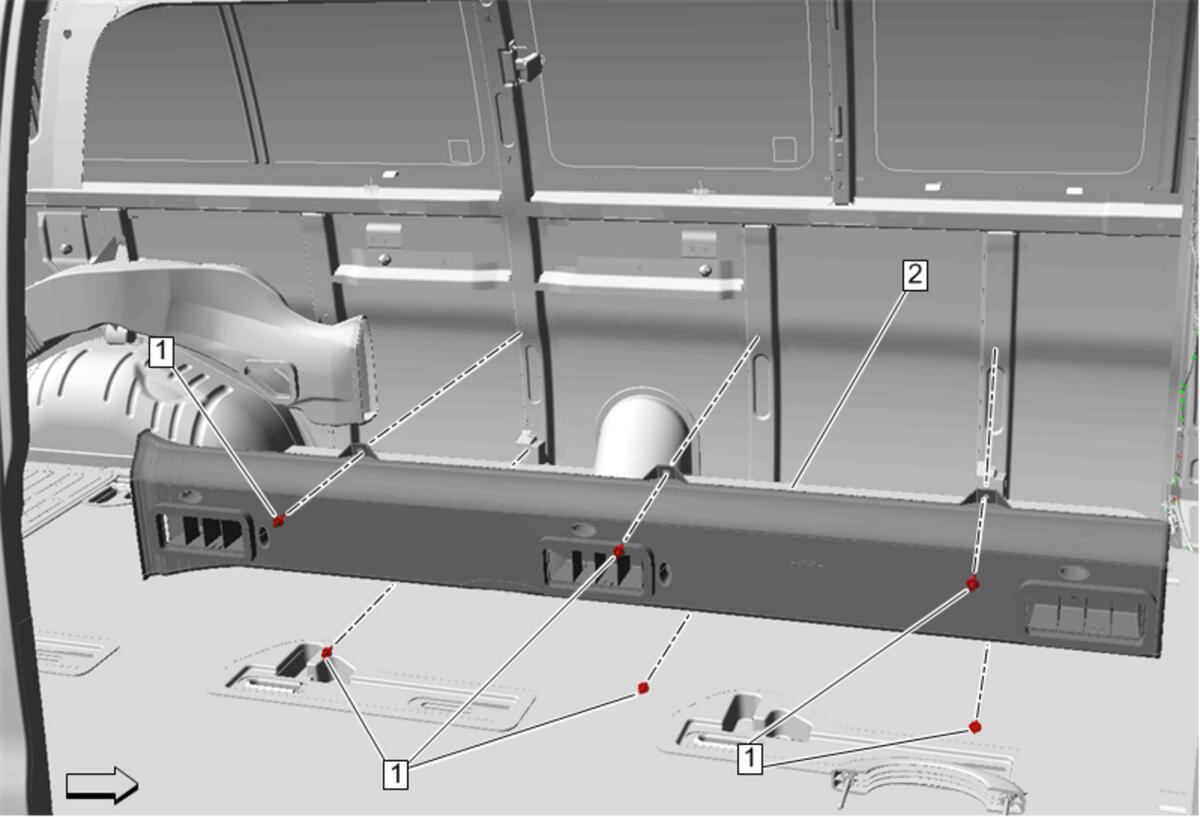

Callout	Component Name
Preliminary Procedures Remove the appropriate rear bench seats. Rear Bench Seat Removal and Installation (With Bench Seat) , or Rear Bench Seat Removal and Installation (With Split Bench) Body Side Rear Garnish Molding - Left Side - Remove - Body Side Rear Garnish Molding Replacement Body Side Front Trim Panel - Left Side - Remove - Body Side Front Trim Panel Replacement - Left Side Body Side Rear Trim Panel- Left Side - Remove - Body Side Rear Trim Panel Replacement
1	Push Pin [6x]
2	Rear Floor Auxiliary Air Outlet Duct - Front

Callout

Component Name

Preliminary Procedures

Remove the appropriate rear bench seats. Rear Bench Seat Removal and Installation (With Bench Seat) , or Rear Bench Seat Removal and Installation (With Split Bench)
Body Side Rear Garnish Molding - Left Side - Remove - Body Side Rear Garnish Molding Replacement
Body Side Front Trim Panel - Left Side - Remove - Body Side Front Trim Panel Replacement - Left Side
Body Side Rear Trim Panel- Left Side - Remove - Body Side Rear Trim Panel Replacement

Push Pin [6x]

Rear Floor Auxiliary Air Outlet Duct - Front
