Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
  2. Remove the drive belt. Drive Belt Replacement
  3. Remove the engine cover. Engine Cover Replacement
  4. Remove the driver seat. Front Seat Removal and Installation

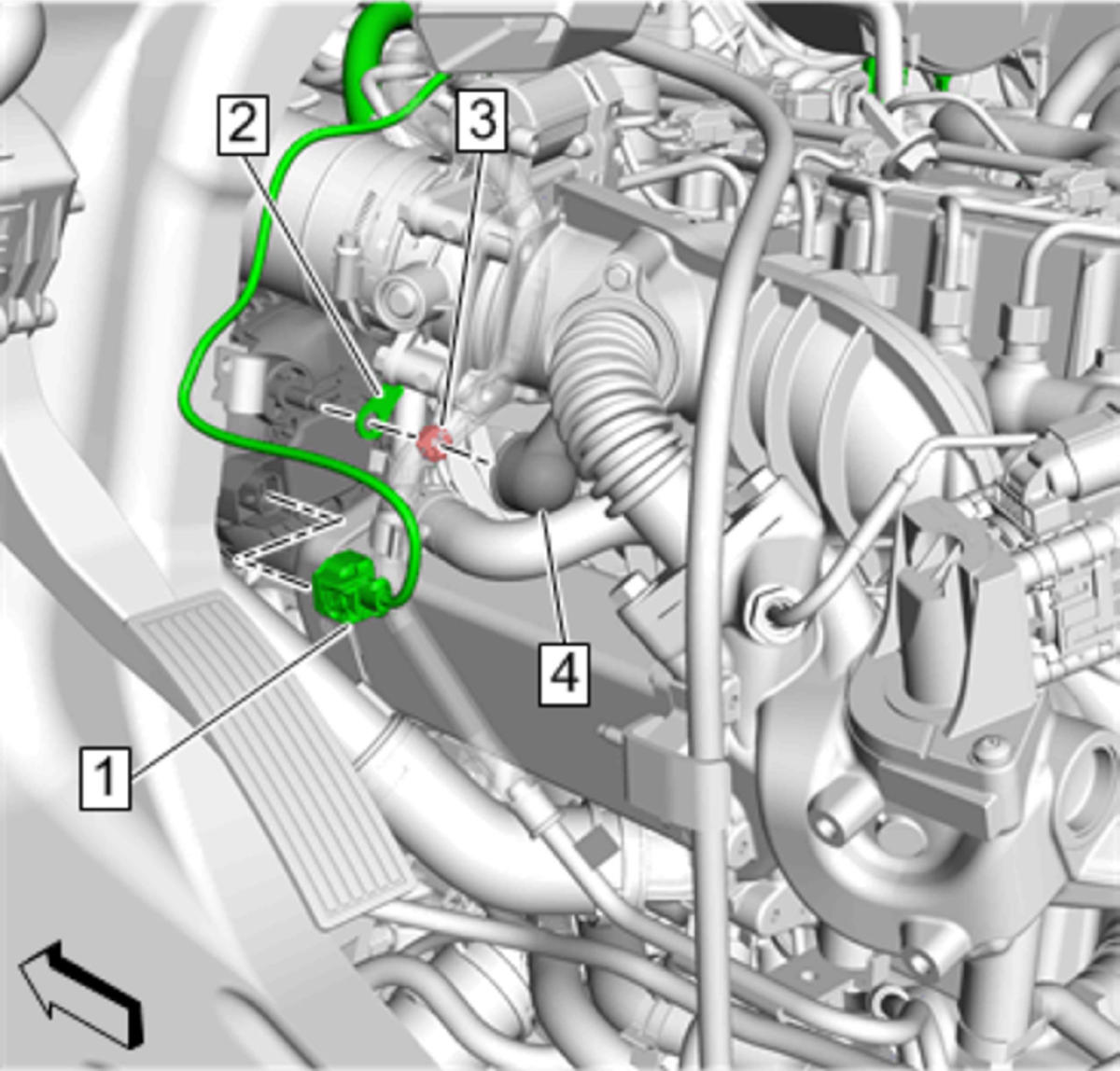

  5. GM4601581Courtesy of GENERAL MOTORS COMPANY

    Generator Terminal Boot (4) - Reposition

  6. Battery Positive Cable Nut(3) - Remove
  7. Battery Positive Cable(2) - Remove
  8. Electrical Connector(1) - Disconnect
  9. Remove the air cleaner assembly. Air Cleaner Assembly Replacement
  10. GM4601582Courtesy of GENERAL MOTORS COMPANY

    Retainer(2) - Disengage

  11. Generator Mounting Bolt(1) - Remove[2x]
  12. Generator(3) - Remove
