Air Cleaner Assembly Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

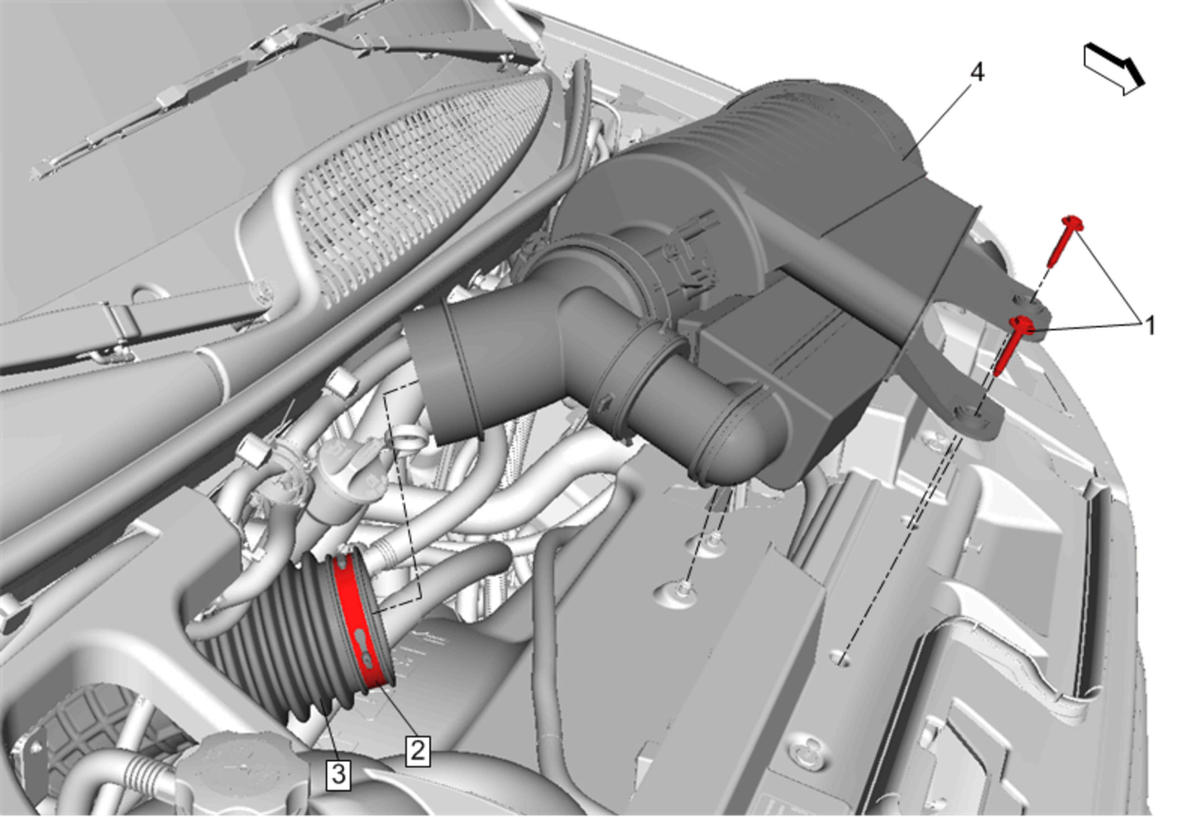

GM4601468Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9N.m (80 lb in)
2 Air Cleaner Outlet Duct Clamp
Tighten
4N.m (35 lb in)
3 Air Cleaner Outlet Duct
4 Air Cleaner Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Remove the air cleaner housing from the retainers.
  3. Transfer parts as necessary.
