Drive Belt Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

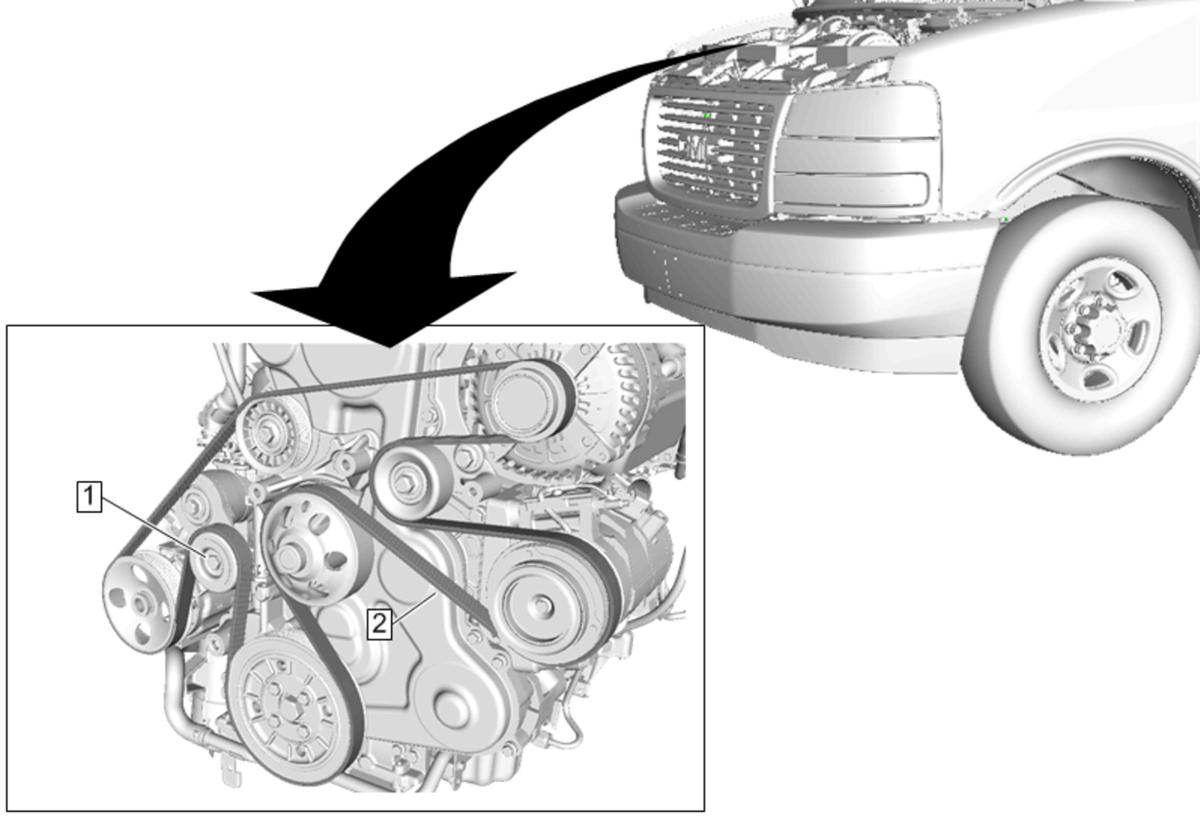

Callout	Component Name
Preliminary Procedure Fan Blade Clutch Replacement (LWN) , or Fan Blade Clutch Replacement (LV1) , or Fan Blade Clutch Replacement (L96, LC8)
1	Drive Belt Tensioner Procedure Rotate the drive belt tensioner clockwise to release the drive belt tension.
2	Drive Belt Procedure Remove the drive belt from the pulleys and tensioner. Clean and inspect the drive belt surfaces of all the pulleys for damage and proper alignment

Callout

Component Name

Preliminary Procedure
Fan Blade Clutch Replacement (LWN) , or Fan Blade Clutch Replacement (LV1) , or Fan Blade Clutch Replacement (L96, LC8)

Drive Belt Tensioner
Procedure
Rotate the drive belt tensioner clockwise to release the drive belt tension.

Drive Belt

Procedure

Remove the drive belt from the pulleys and tensioner.
Clean and inspect the drive belt surfaces of all the pulleys for damage and proper alignment
