Body Side Garnish Molding Replacement

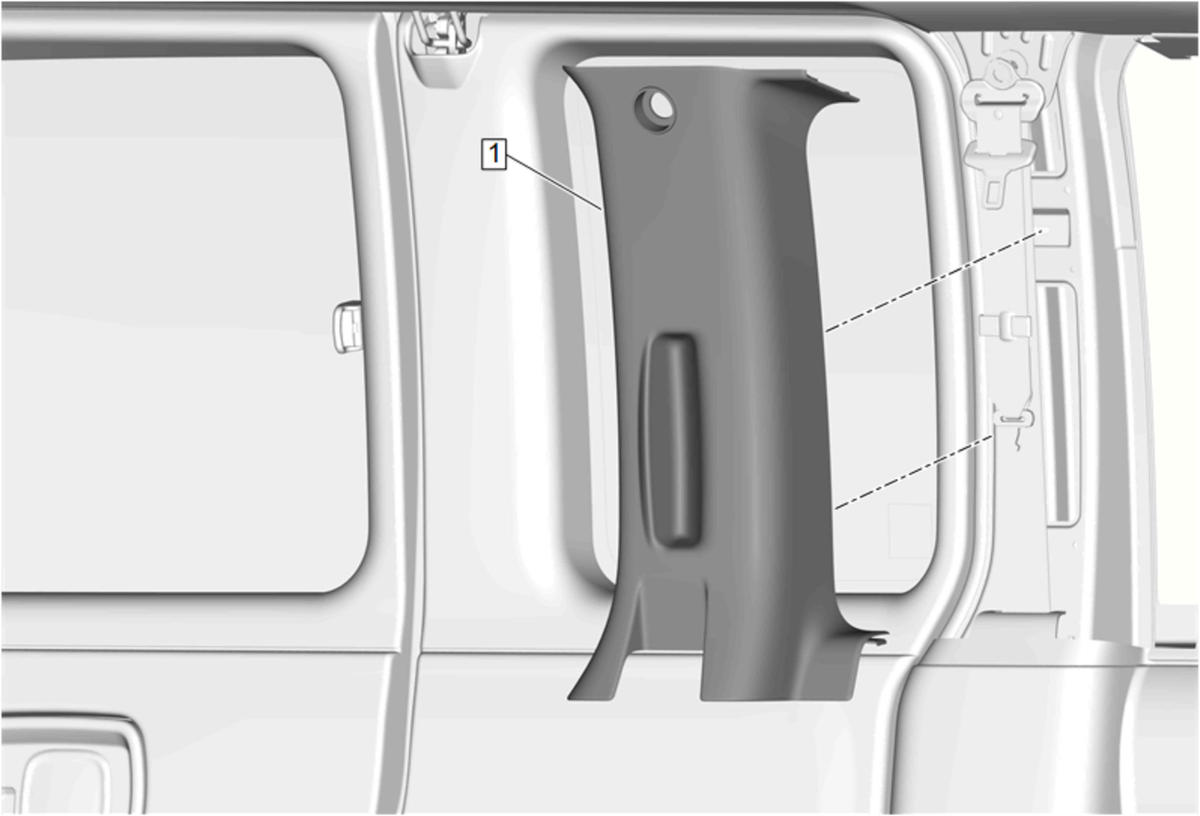

GM5150077Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Remove the rear seat belt D ring cover and bolt from the rear seat belt height adjuster on the 2nd row right side seat belt. Rear Seat Retractor Side Belt Replacement (Back Row) , or Rear Seat Retractor Side Belt Replacement (Middle Rows - Left Side) , or Rear Seat Retractor Side Belt Replacement (Middle Rows - Right Side) , or Rear Seat Retractor Side Belt Replacement (2nd Row - Right Side)
1 Body Side Garnish Molding

Procedure

  1. Pull the body side garnish molding toward the inside of the vehicle to disengage the integral retainers and to clear the rear seat belt assembly.
  2. When replacing the body side garnish molding, feed the seat belt through the panel.
  3. Ensure the seat belt webbing does not become trapped during installation.
  4. Enable the SIR System. SIR Disabling and Enabling
