Rear Seat Retractor Side Belt Replacement (Middle Rows - Right Side)

Courtesy of GENERAL MOTORS COMPANY

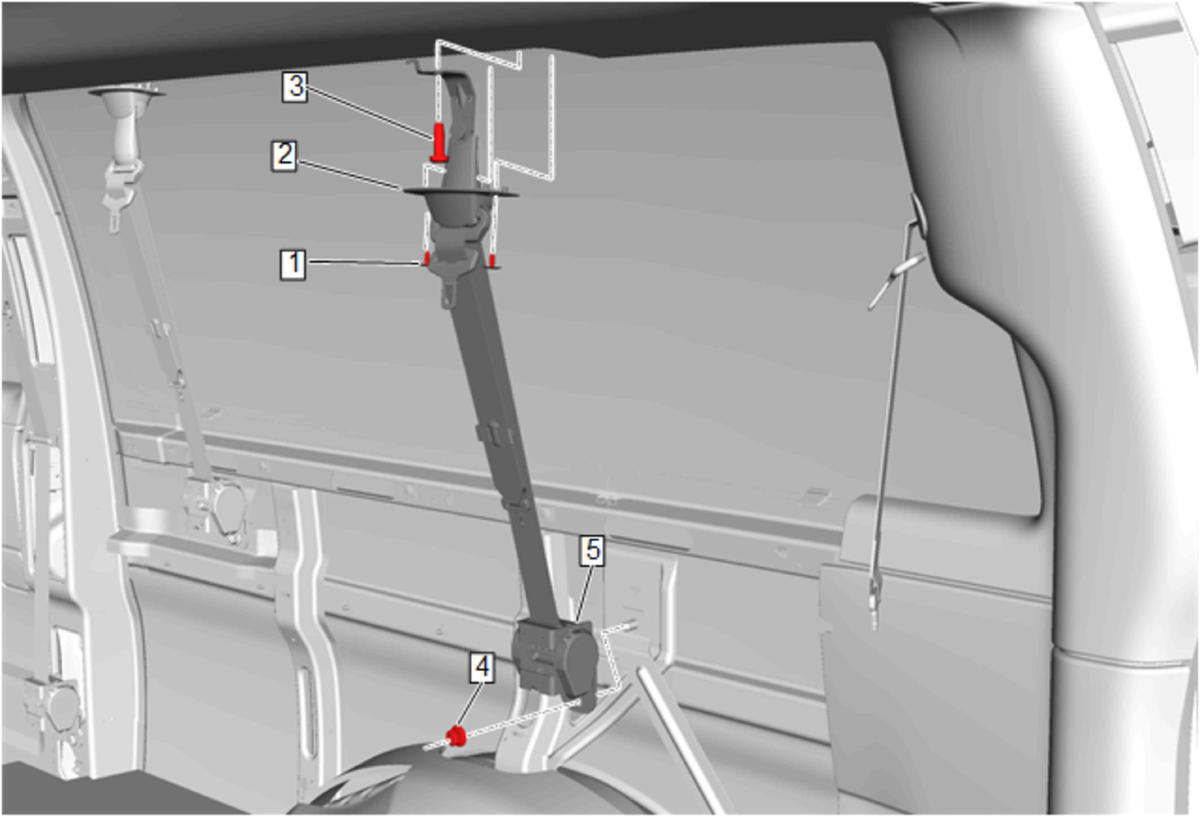

Callout	Component Name
Preliminary Procedures Rear Window Upper Garnish Molding Replacement - Right Side Body Side Trim Panel Replacement - Right Side
1	Rear Seat Belt Guide Trim Cover Retainer [2x]
2	Rear Seat Belt Guide Trim Cover
3	Rear Seat Belt Retractor Bolt- Upper CAUTION: Refer to Fastener Caution . Tighten  52 N.m (38 lb ft)
4	Rear Seat Belt Retractor Nut Tighten  52 N.m (38 lb ft)
5	Rear Seat Retractor Side Belt
