Rear Seat Retractor Side Belt Replacement (Back Row)

Courtesy of GENERAL MOTORS COMPANY

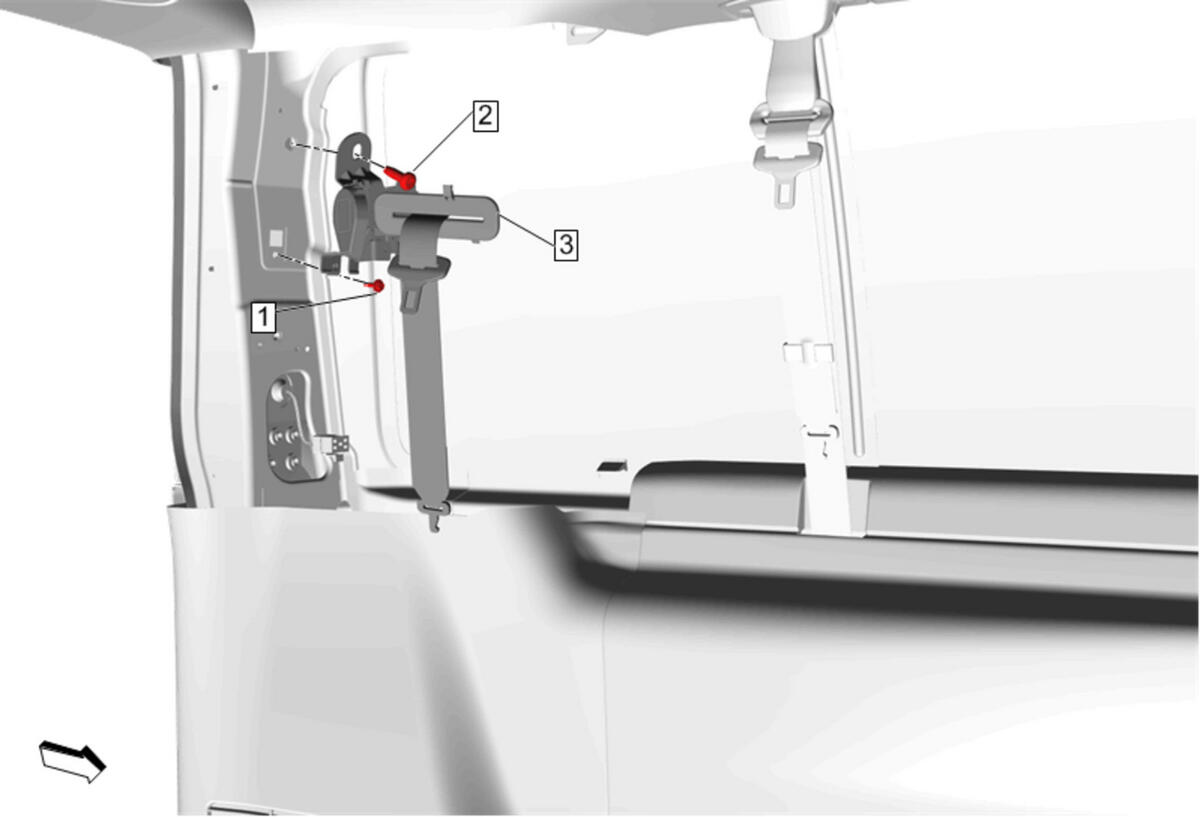

Callout	Component Name
Preliminary Procedure  Body Rear Corner Garnish Molding Replacement
1	Rear Seat Belt Retractor Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Rear Seat Belt Retractor Bolt- Upper Tighten  52 N.m (38 lb ft)
3	Rear Seat Retractor Side Belt
