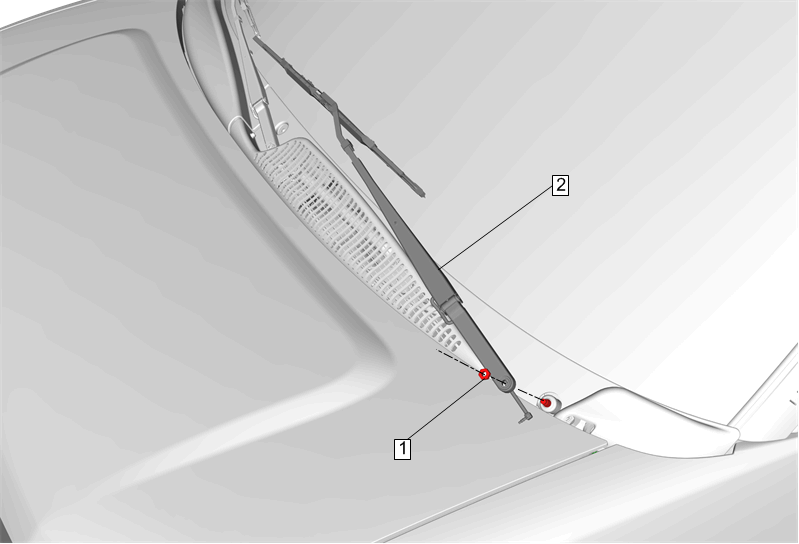

Windshield Wiper Arm Replacement

GM4856335

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Windshield Wiper Arm Nut

CAUTION:

Refer to Fastener Caution .

Tighten
32 N.m (24 lb ft)

2

Windshield Wiper Arm

Procedure

Grasp the outer end of the wiper arm and gently rock the arm back and forth, while holding the wiper arm blade off the windshield.
Remove the windshield wiper arm from the pivot shaft.
Clean the wiper motor pivot shaft knurls with a soft wire brush before installing a new wiper arm.
Position the wiper arm on the wiper motor pivot shaft.
Align the windshield wiper arm. Windshield Wiper Arm Adjustment
