Removal Procedure
- Disable the SIR system. SIR Disabling and Enabling
Windshield Garnish Molding(3) - Remove[2x] - Windshield Garnish Molding Replacement

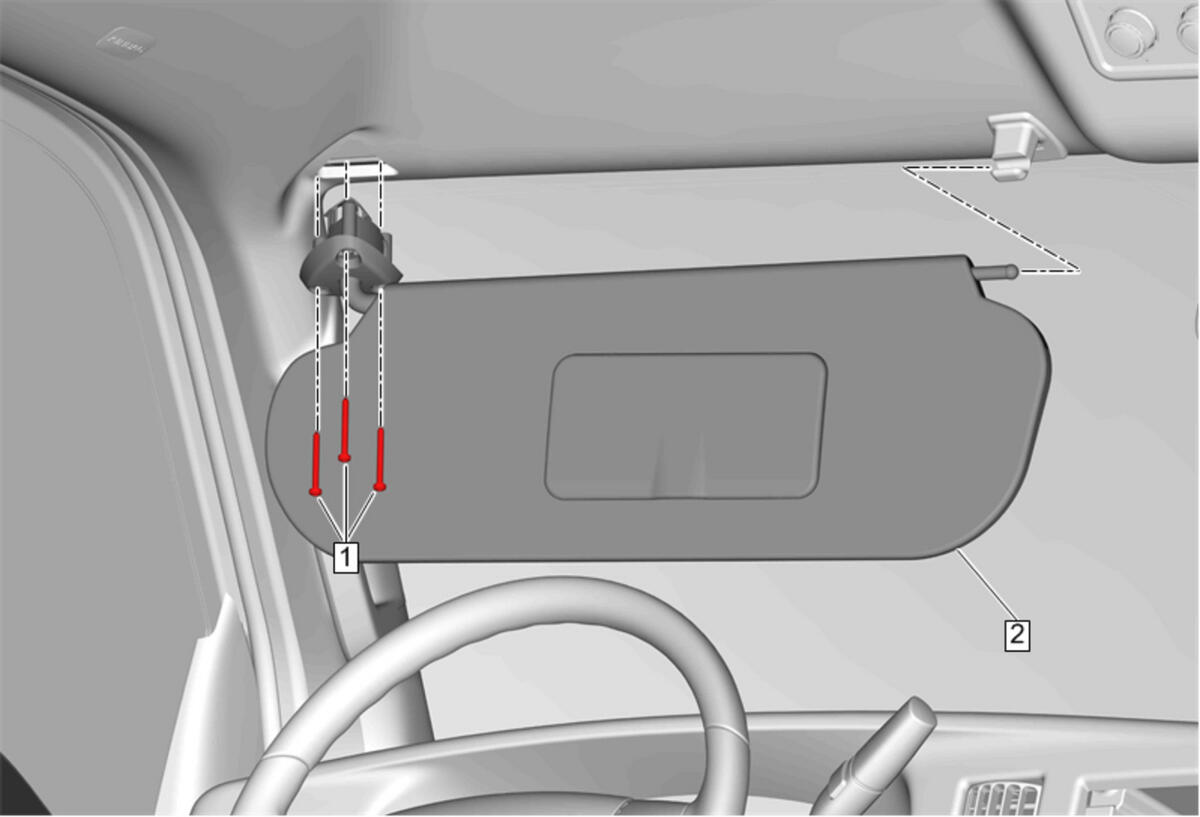

Sunshade(2) - Remove[2x] - Sunshade Replacement

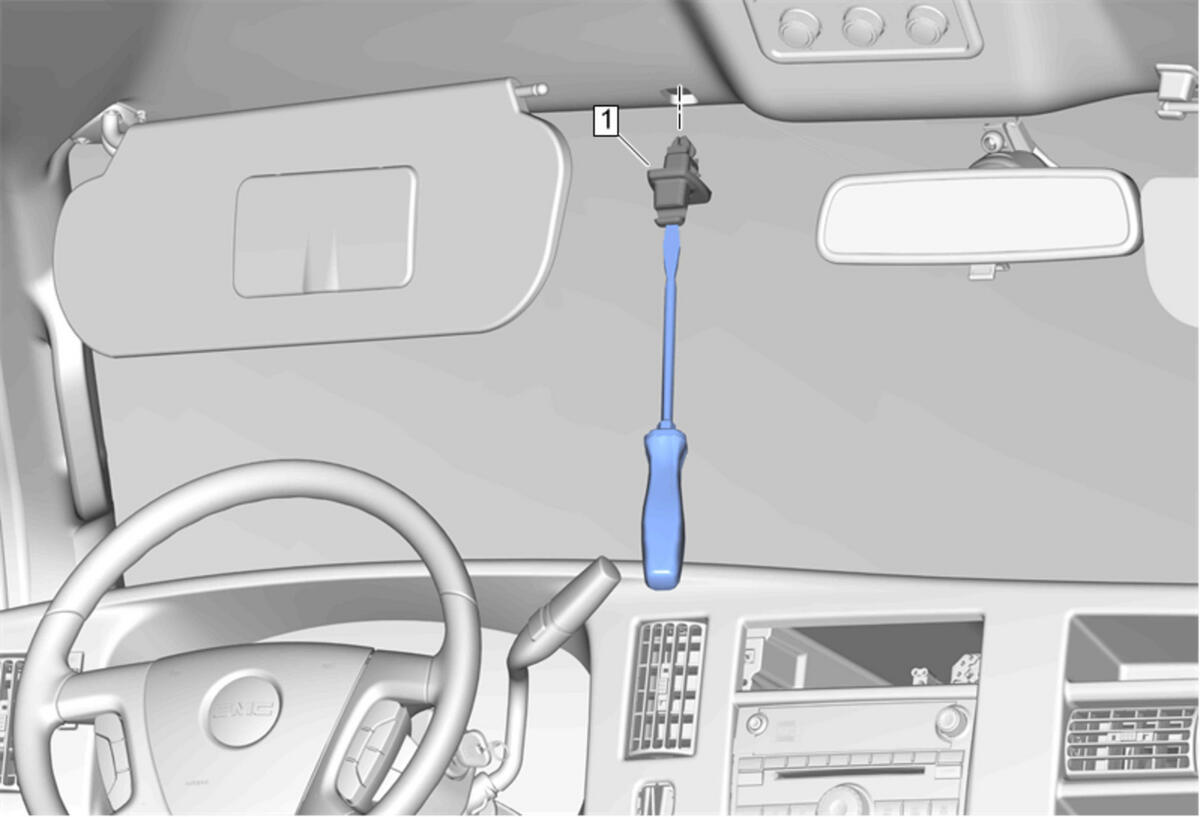

Sunshade Anchor(1) - Remove[2x] - Sunshade Anchor Replacement

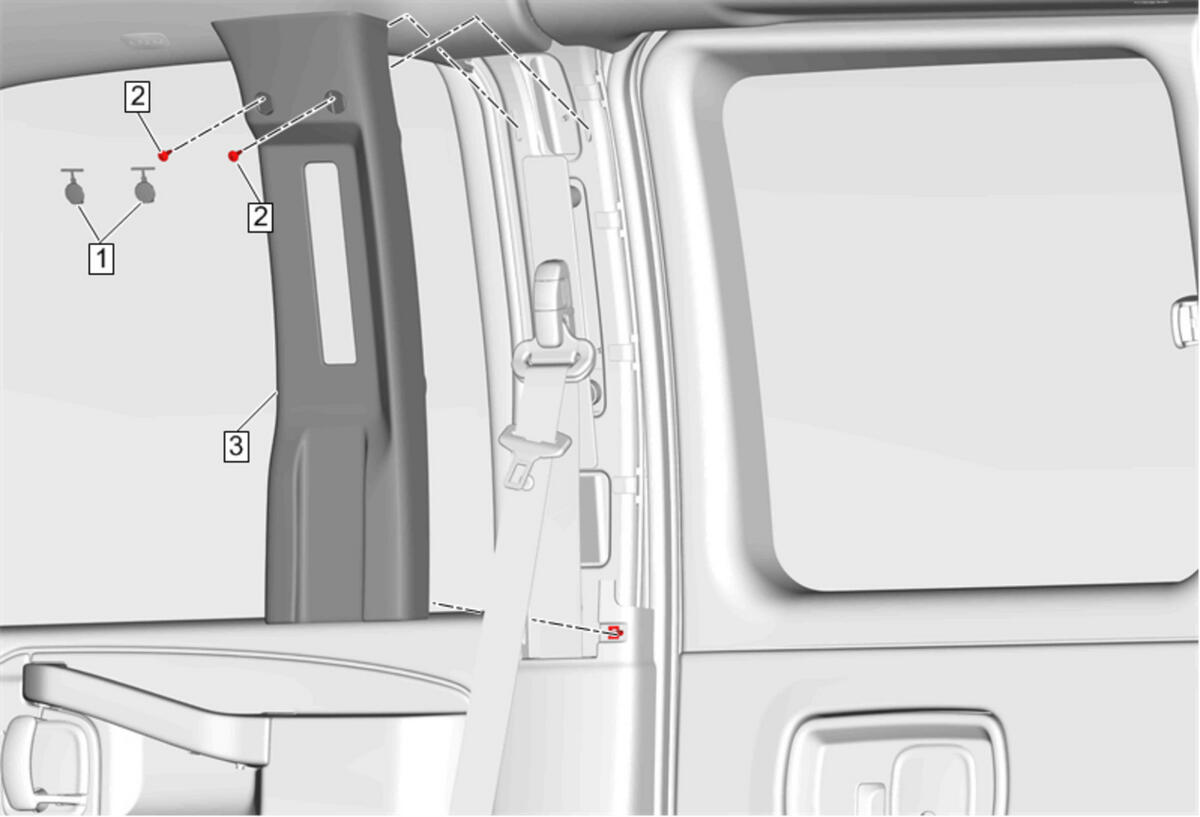

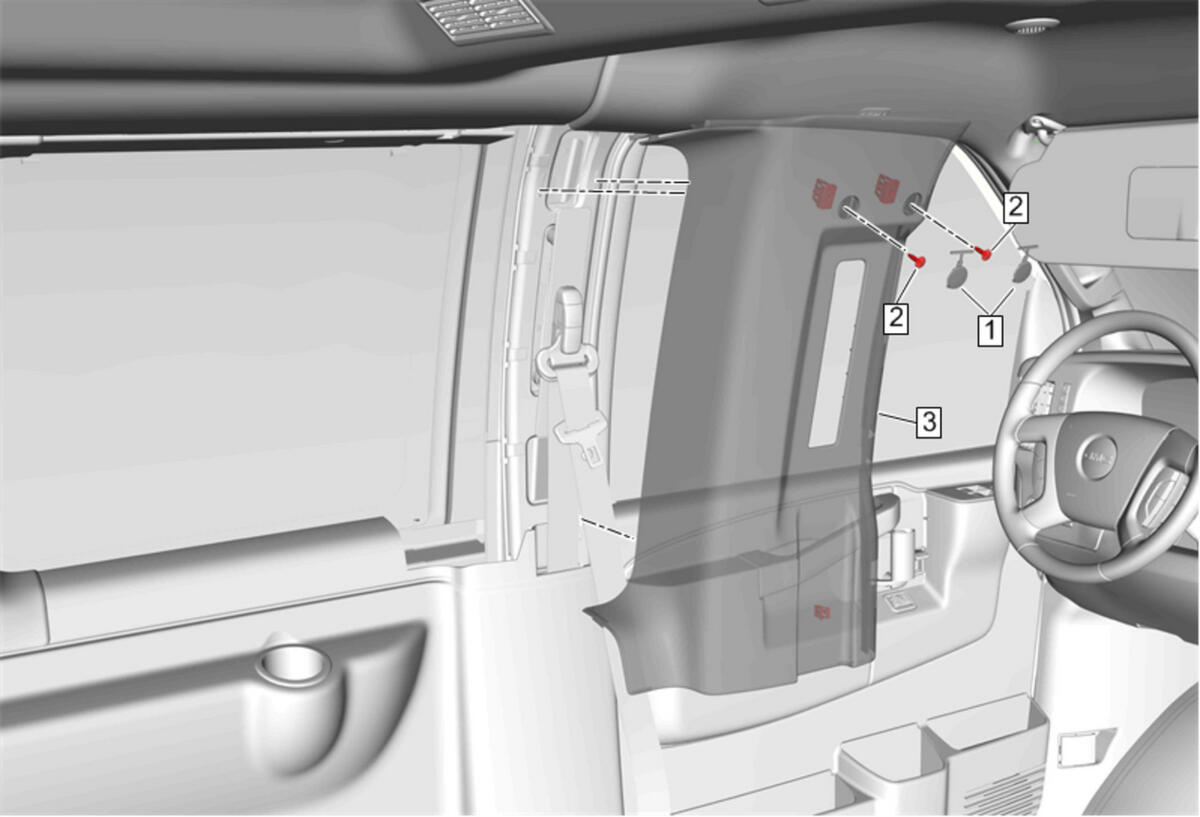

Center Pillar Upper Garnish Molding-Right Side(3) - Remove - Center Pillar Upper Garnish Molding Replacement - Right Side

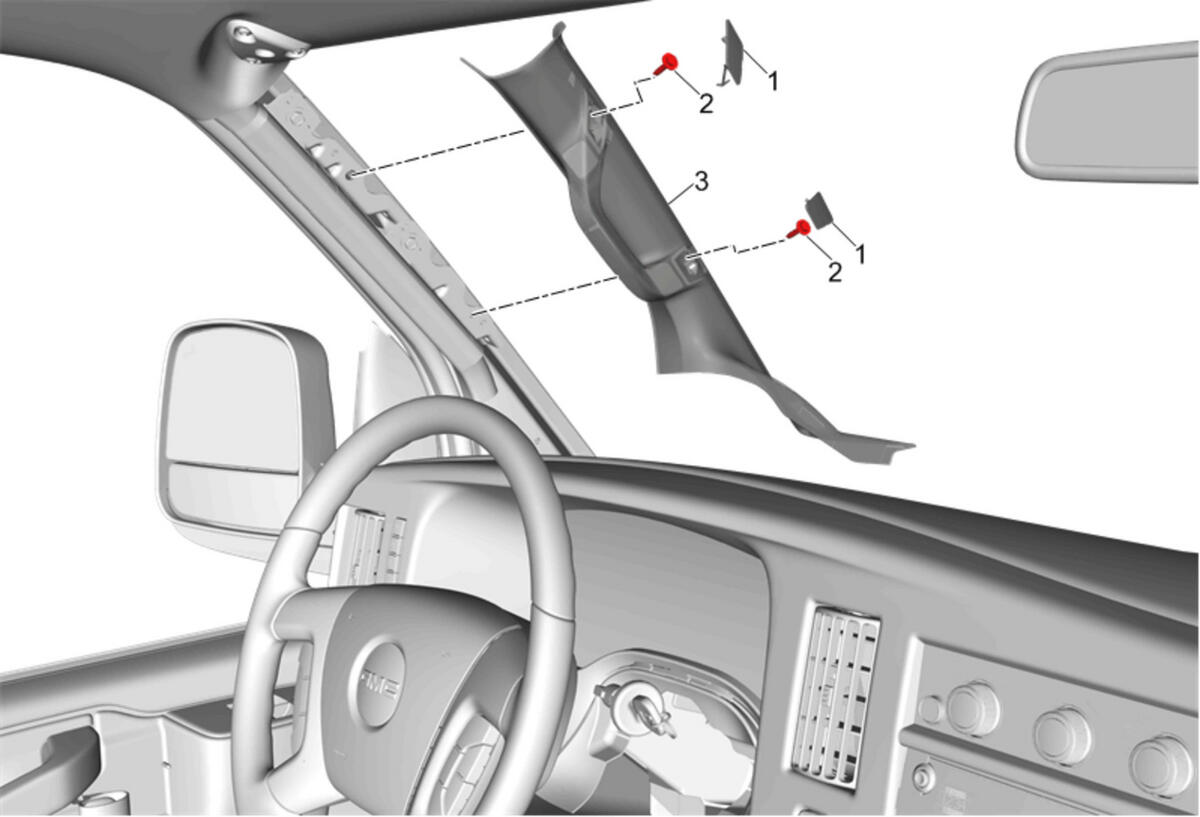

Upper Pillar Garnish Molding(3) - Remove - Upper Pillar Garnish Molding Replacement
- Move the driver and passenger seats fully forward and recline.
- NOTE:
Prior to removal, note the routing of the wire harness to aid in reassembly and to ensure proper installation.

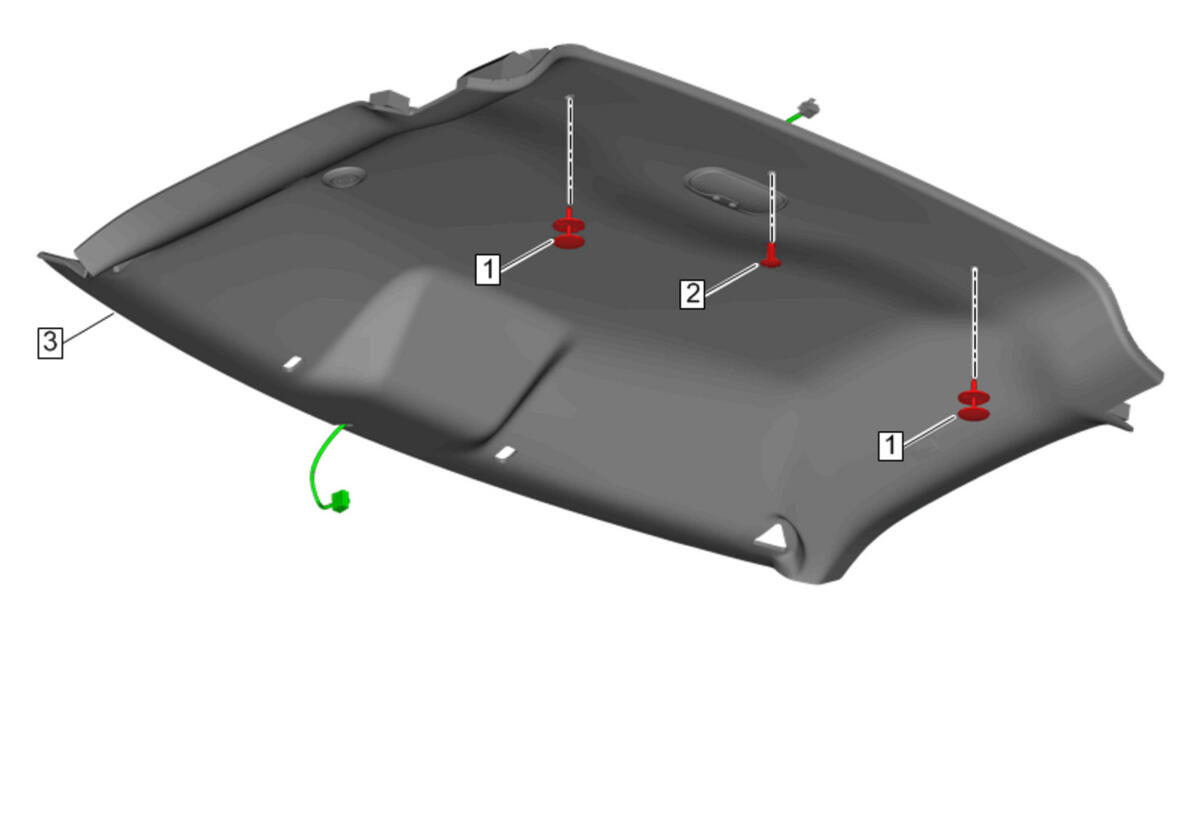

Remove the [2x]headlining trim panel retainers. (1)
- Remove the headlining trim panel integral push-in retainer. (2)
- Disconnect the electrical connectors.
- With the aid of an assistant, remove the headliner trim panel assembly (3)from the vehicle through the liftgate opening.
- Transfer components as necessary.
- Transfer or replace the wiring harness, if necessary. Headliner Harness Replacement
Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.
If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.
Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.
