Installation Procedure
- Clean the clutch hub and the input shaft from any debris and contaminates with a lint-free towel.
- CAUTION:
Applying too much or the wrong type of grease on the transmission input shaft may cause damage, clutch slippage or failure. Always apply the correct type of grease. Never apply more grease than is necessary to coat the transmission input shaft with a very thin film of grease.
Use a clean flat brush (1) to apply very light coating of multi-purpose grease to input shaft until the metal is only shiny. No visible clumps of grease are permissible regardless of size.
- CAUTION:
Ensure that no grease remains on the lead surface of the transmission input shaft. Clean the lead surface of the transmission input shaft prior to the assembly of the transmission to the engine. Failure to maintain a clean surface may cause clutch slippage or failure.
Clean the entire lead surface of the input shaft with a NEW, lint-free towel (1).
- Position the transmission to the engine.
- CAUTION:
Refer to Fastener Caution .

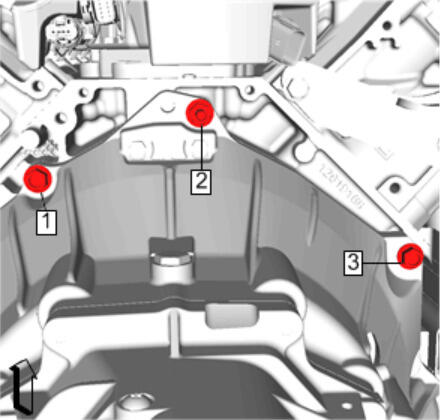

Install the three upper transmission clutch housing to engine fasteners (1, 2, 3) and tighten to 50 N.m (37 lb ft).

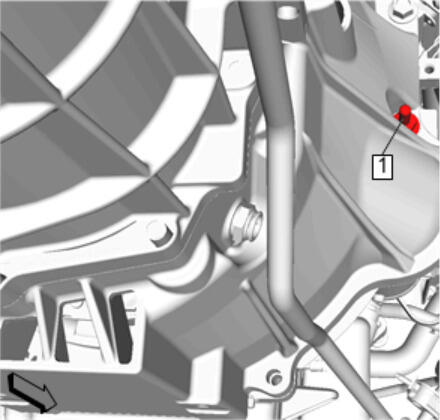

Install the right lower transmission clutch housing to engine fastener (1) and tighten to 50 N.m (37 lb ft).

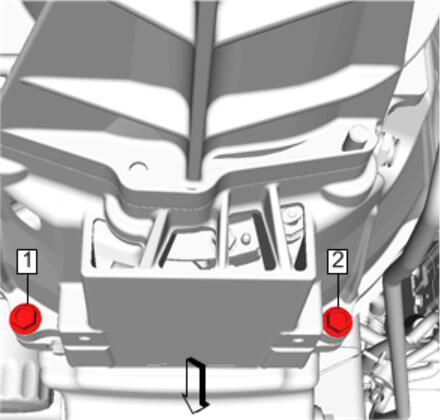

Install the lower transmission clutch housing to engine fasteners (1, 2) and tighten to 50 N.m (37 lb ft).

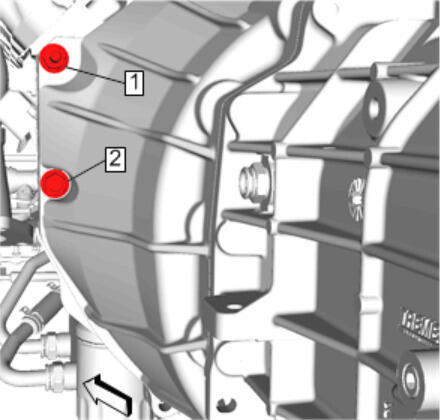

Install the left side transmission clutch housing to engine fasteners (1, 2) and tighten to 50 N.m (37 lb ft).

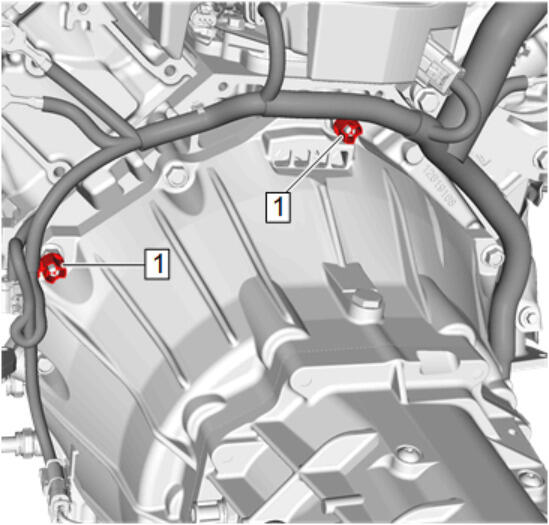

Connect the wiring harness retainers (1) to the transmission clutch housing to engine fasteners.
- Connect the transmission control to the transmission. Transmission Control Replacement (MH3, MJK, MM6)
- Tilt engine and transmission up and tighten all cradle bolts. Drivetrain and Front Suspension Cradle Replacement (LT1, LT4)

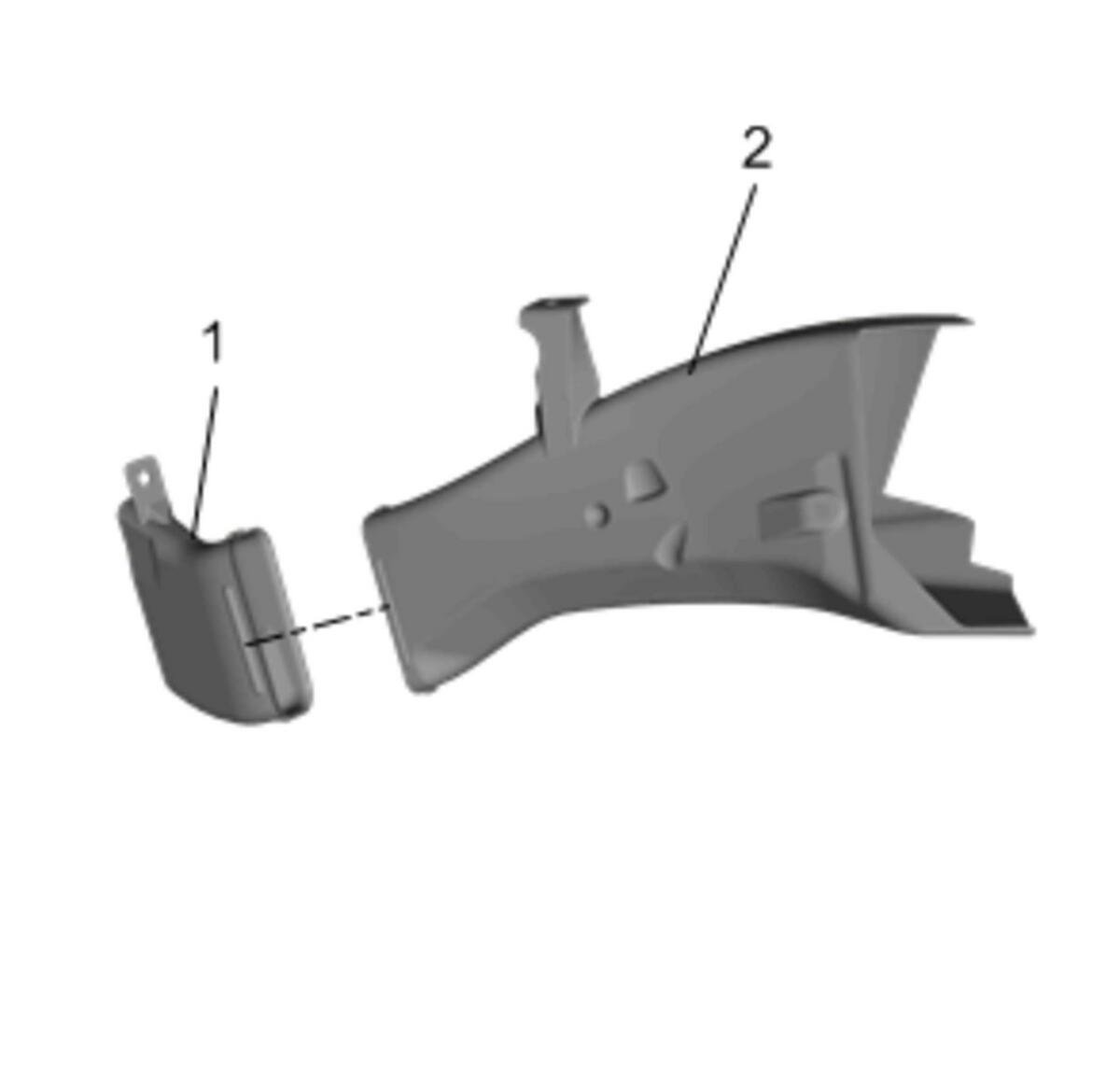

Install the left and right side rear front brake rotor cooling duct (1). Front Brake Rotor Cooling Duct Replacement
- Install the front wheel house liners. Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (ZL1)
- Connect the intermediate steering shaft to the mid intermediate steering shaft. Mid Intermediate Steering Shaft Replacement
- Install the transmission mount. Transmission Rear Mount Replacement (MH3, MJK, MM6 Transmission)
Connect the lower slave cylinder hose (2) to the slave cylinder.
- Install the hydraulic clutch hose/pipe retaining clip (1) to the clutch slave cylinder.

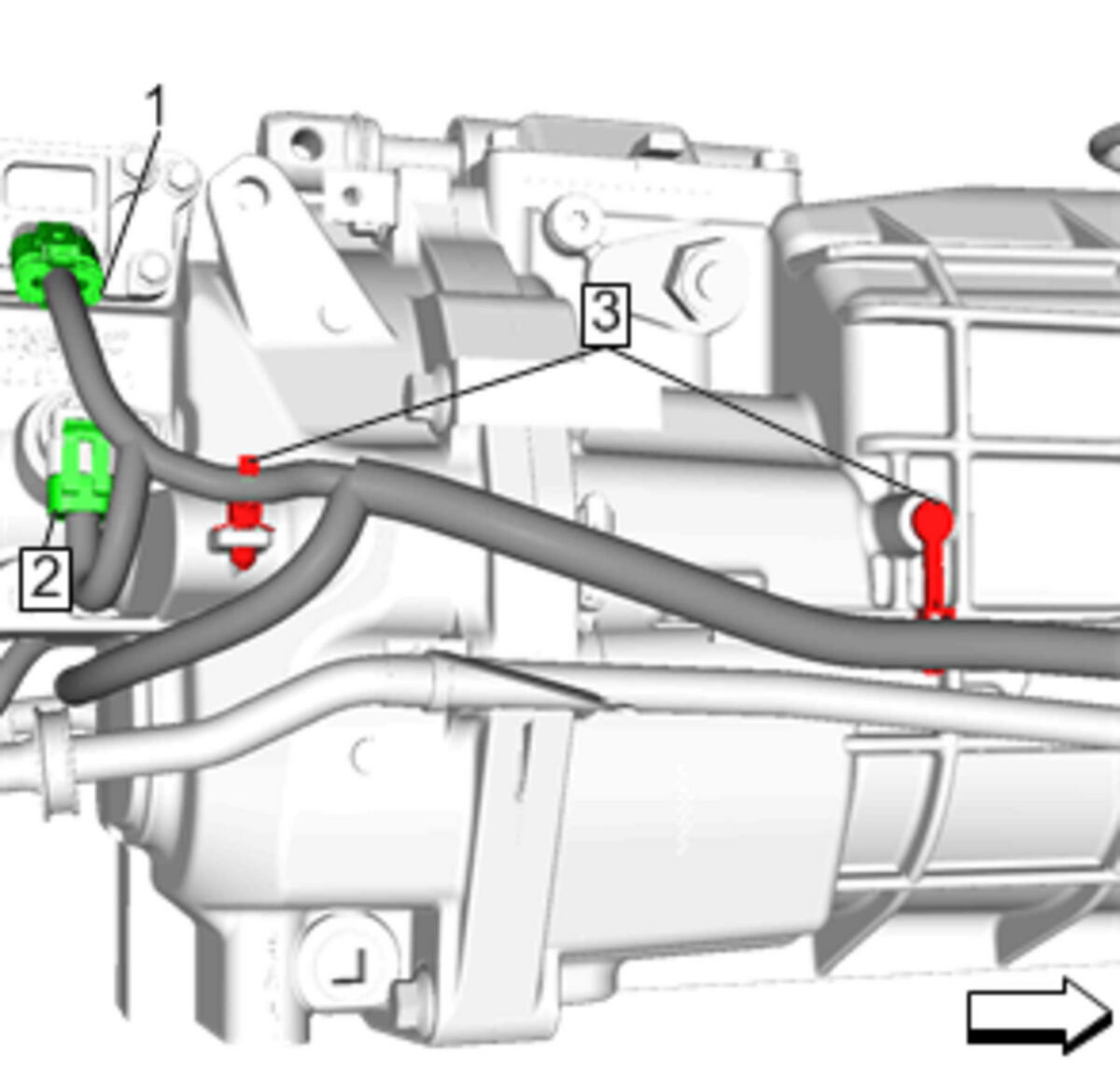

Connect the following electrical connectors:
- Shift Fork Position Sensor (1)
- Vehicle Speed Sensor (2)
- Connect the wiring harness clips (3) to the transmission.

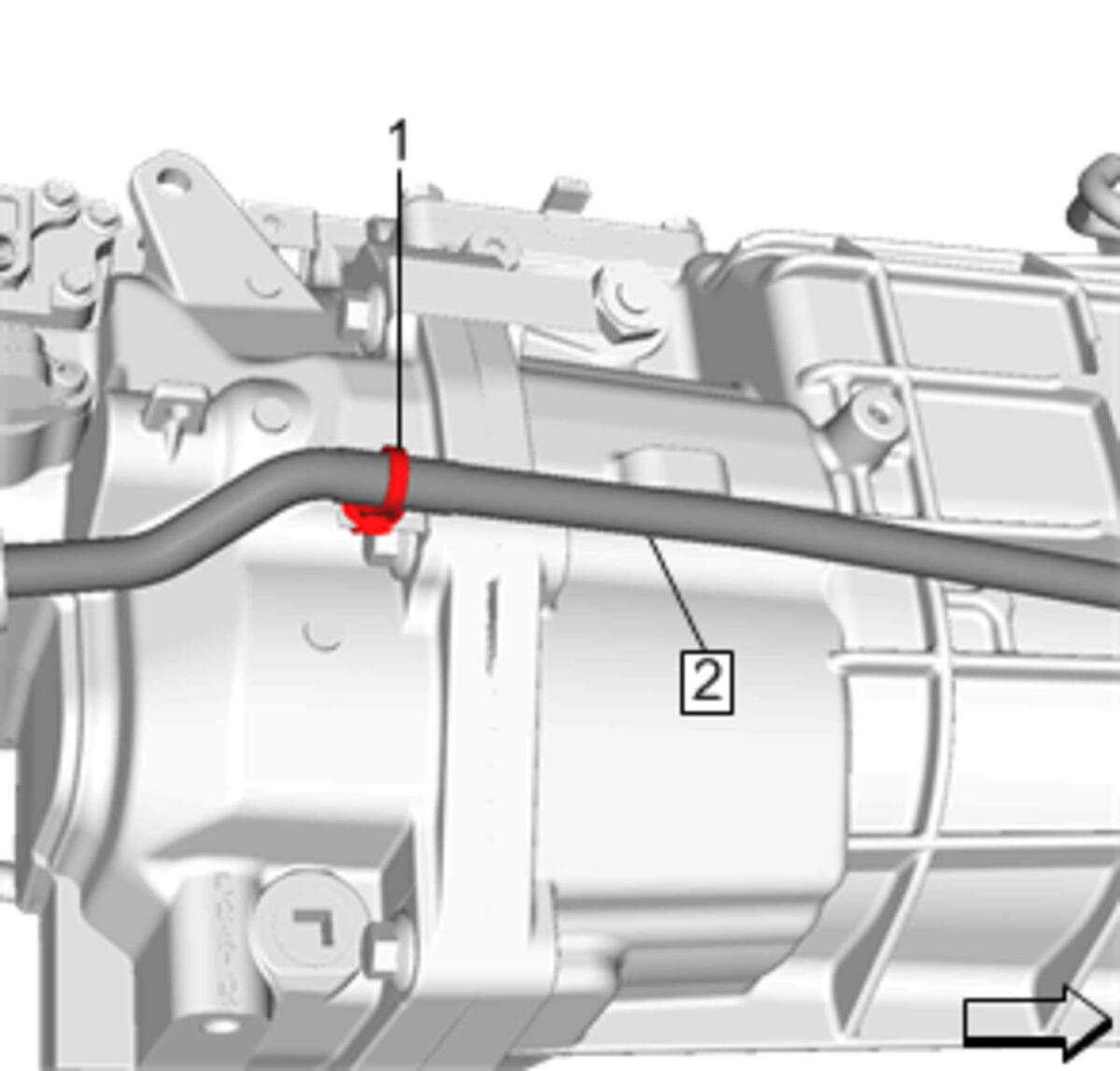

Connect the oil cooler line clip (1) to the transmission.

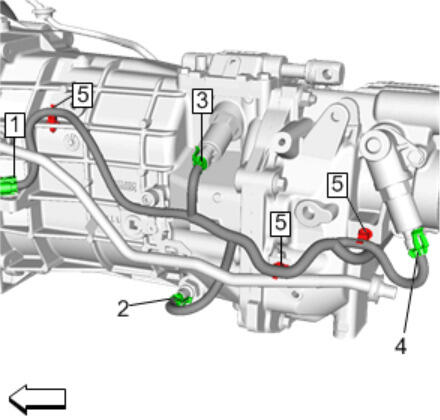

Connect the following electrical connectors:
- Oxygen Sensor (1)
- Fluid Temperature Sensor (2)
- Skip Shift Solenoid (3)
- Reverse Lockout Solenoid (4)

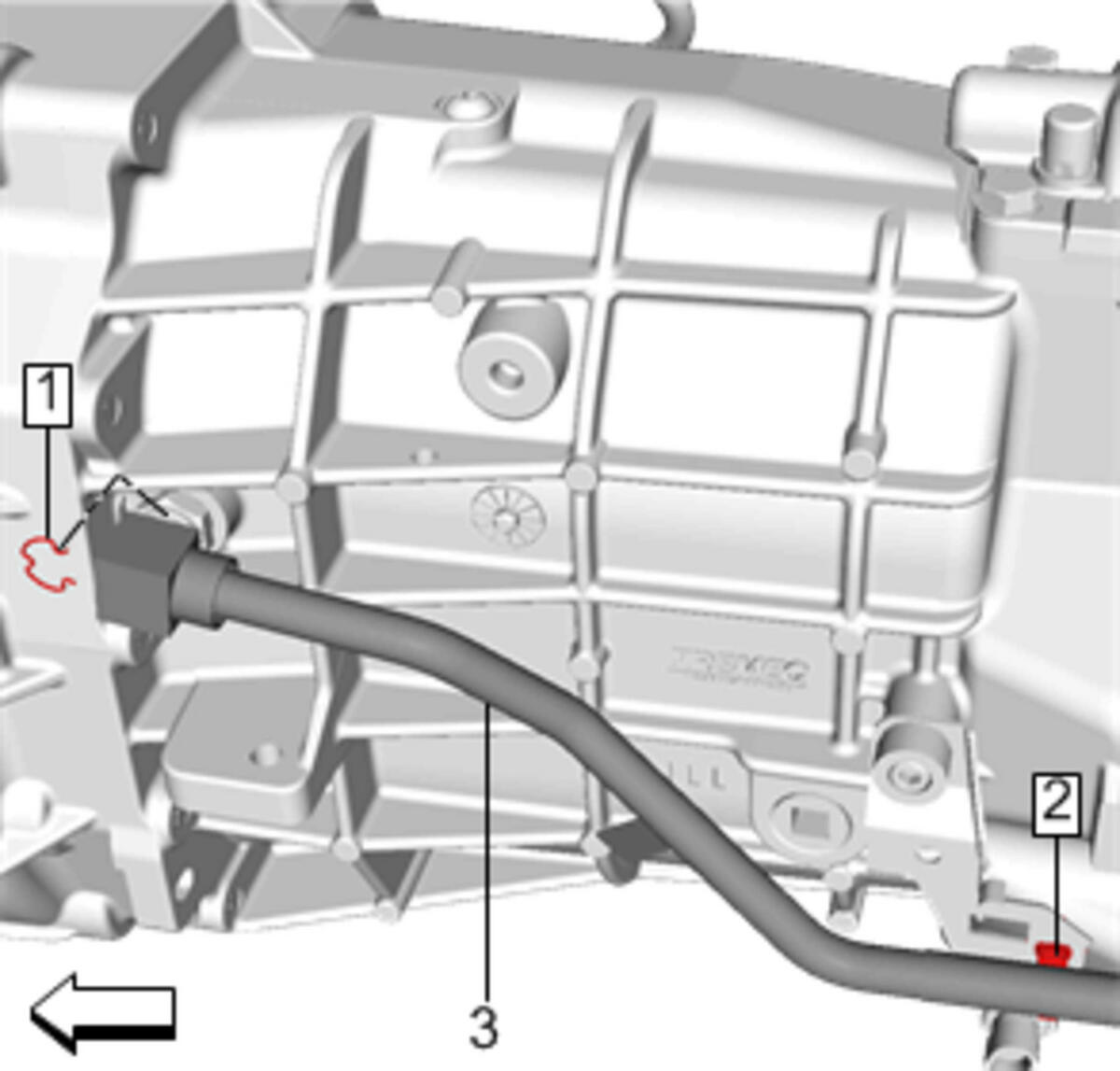

Connect the cooler pipe retainer (2).
- Connect the cooler pipe (3) to the transmission.
- Install the retaining clip (1).

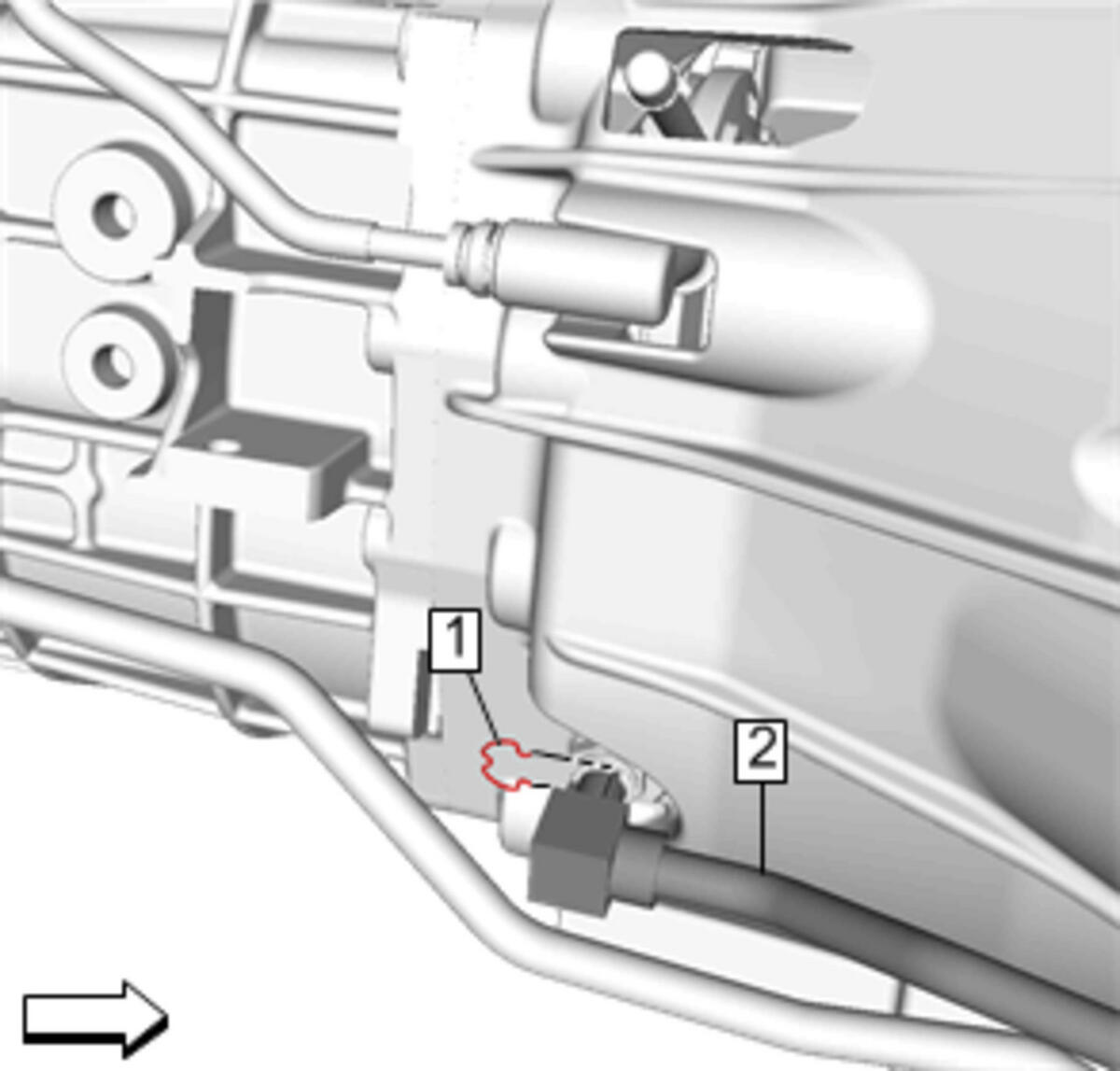

Connect the cooler pipe (2) to the transmission.
- Install the retaining clip (1).
- Bleed to hydraulic clutch system. Hydraulic Clutch System Bleeding
- Check the transmission fluid and fill as necessary. Transmission Fluid Level Inspection (MH3, MJK, MM6)
Install the catalytic converter brace bracket. Catalytic Converter Brace Bracket Replacement (LT1, LT4)
Install the front cradle shear plate (3). Front Cradle Shear Plate Replacement
Use care when cleaning the clutch hub. The clutch hub may have sharp edges and can cause personal injury if contact is made. Wear protective gloves to avoid personal injury.
