Counter Gear Shaft Disassemble (MJK, MH3, or MM6)
WARNING: This page is about a different variant/trim than selected.
Special Tools
- J 22912-B Rear Pinion and Axle Bearing Remover/Split Plate
- J 39473 Mainshaft Bearing Installer
- J 39547 Press Adapter
For equivalent regional tools, refer to Special Tools (MJK, MH3, or MM6) .
NOTE:
Do not replace tapered bearings unless inspection shows bearing damage.

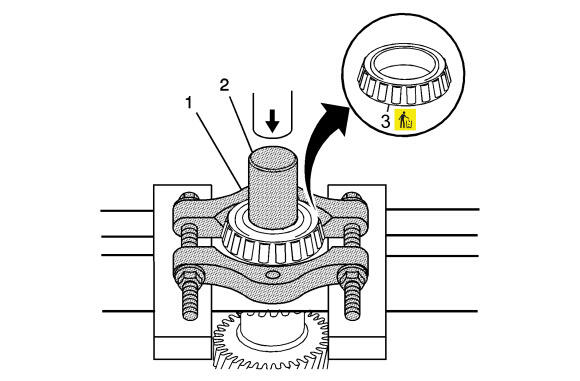

Remove the countershaft front bearing, using the J 22912-B remover (1) with the J 39473 installer (2) and a hydraulic press.
- Discard the countershaft front bearing.

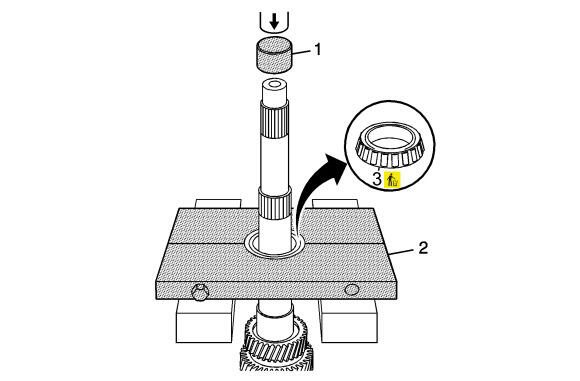

Remove the countershaft rear bearing, using the J 22912-B split plate (2), the J 39547 adapter (1) and a hydraulic press.
- Discard the countershaft rear bearing.
