Special Tools (MJK, MH3, or MM6)

WARNING: This page is about a different variant/trim than selected.

Illustration	Tool Number/Description
Courtesy of GENERAL MOTORS COMPANY	DT 35944-200A Cooler Flushing Adapter
Courtesy of GENERAL MOTORS COMPANY	DT 45096 Transmission Oil Cooling System Flush and Flow Test Tool
Courtesy of GENERAL MOTORS COMPANY	DT 45096-21 Cooler Flushing Adapter
Courtesy of GENERAL MOTORS COMPANY	DT 47678 Transmission Holding Fixture
Courtesy of GENERAL MOTORS COMPANY	DT 47678-10 Transmission Holding Fixture Adapter
Courtesy of GENERAL MOTORS COMPANY	DT 48074 Input and Output Shaft Seal Installer
Courtesy of GENERAL MOTORS COMPANY	DT 48802 Bearing Installer
Courtesy of GENERAL MOTORS COMPANY	DT 49139 Hub Remover Tool
Courtesy of GENERAL MOTORS COMPANY	DT 49216 Bushing Remover
Courtesy of GENERAL MOTORS COMPANY	DT 49293 Gear Select/Skip Shift Solenoid Socket
Courtesy of GENERAL MOTORS COMPANY	J 3289-20 Holding Fixture
Courtesy of GENERAL MOTORS COMPANY	J 6125-1B Slide Hammer with Adapter
Courtesy of GENERAL MOTORS COMPANY	J 8001 Dial Indicator Set

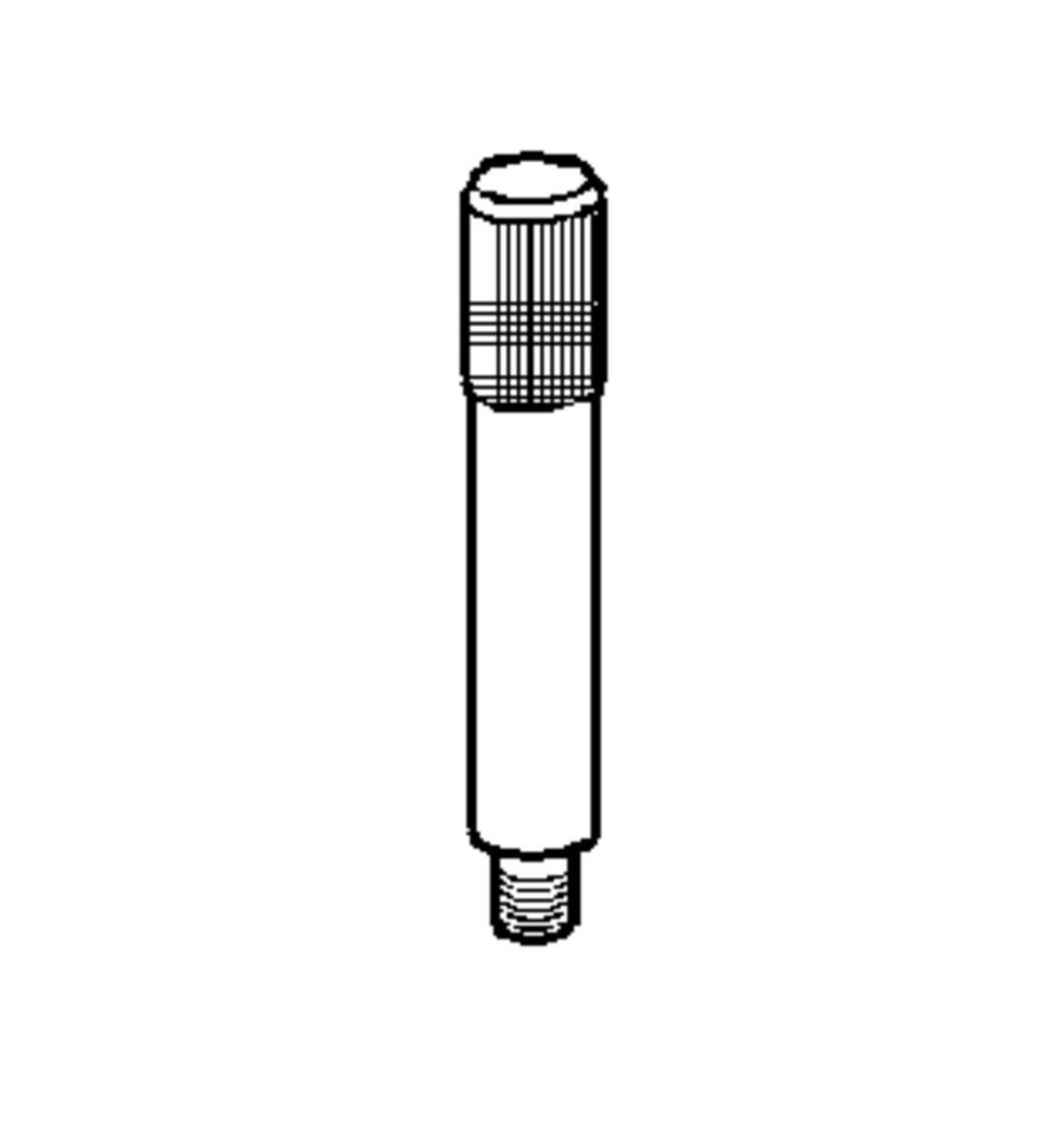

Courtesy of GENERAL MOTORS COMPANY	J 8092 Universal Driver Handle
Courtesy of GENERAL MOTORS COMPANY	J 8433 Universal Bridge Puller
Courtesy of GENERAL MOTORS COMPANY	J 08614-A Pinion Flange Holder and Remover
Courtesy of GENERAL MOTORS COMPANY	J 21426 Extension Housing Seal Installer
Courtesy of GENERAL MOTORS COMPANY	J 22888-20A Universal Two Jaw Puller
Courtesy of GENERAL MOTORS COMPANY	J 22912-B Rear Pinion and Axle Bearing Remover
Courtesy of GENERAL MOTORS COMPANY	J 23129 Universal Seal Remover
Courtesy of GENERAL MOTORS COMPANY	J 23907 Slide Hammer
Courtesy of GENERAL MOTORS COMPANY	J 23907-1 Slide Hammer
Courtesy of GENERAL MOTORS COMPANY	J 26941 Bearing Race Remover
Courtesy of GENERAL MOTORS COMPANY	J 28537-17 Bearing Race Installer
Courtesy of GENERAL MOTORS COMPANY	J 29369-2 Bushing and Bearing Remover - 2-3 in
Courtesy of GENERAL MOTORS COMPANY	J 29873 Injector Nozzle Socket 30 mm
Courtesy of GENERAL MOTORS COMPANY	J 35616 GM Terminal Test Kit
Courtesy of GENERAL MOTORS COMPANY	J 36017 Valve Seal Remover
Courtesy of GENERAL MOTORS COMPANY	J 36183 Press Tube
Courtesy of GENERAL MOTORS COMPANY	J 36184 Press Tube Adapter
Courtesy of GENERAL MOTORS COMPANY	J 36190 Universal Driver Handle
Courtesy of GENERAL MOTORS COMPANY	J 36513 Split Plate
Courtesy of GENERAL MOTORS COMPANY	J 36850 Transjel® Lubricant
Courtesy of GENERAL MOTORS COMPANY	J 38205-1 Press Tube
Courtesy of GENERAL MOTORS COMPANY	J 38416-B Harmonic Balancer Remover
Courtesy of GENERAL MOTORS COMPANY	J 39371 1st/2nd Synchronizer Installer
Courtesy of GENERAL MOTORS COMPANY	J 39431 5th/6th Driven Gear Puller
Courtesy of GENERAL MOTORS COMPANY	J 39431-3 5th Gear Puller Adapter Bolts
Courtesy of GENERAL MOTORS COMPANY	J 39433 Input Shaft Seal Installer
Courtesy of GENERAL MOTORS COMPANY	J 39435 Bearing Race Installer
Courtesy of GENERAL MOTORS COMPANY	J 39437 Bushing Installer
Courtesy of GENERAL MOTORS COMPANY	J 39439-1 Shift Rail Bushing Remover/Installer
Courtesy of GENERAL MOTORS COMPANY	J 39439-2 Bushing Remover
Courtesy of GENERAL MOTORS COMPANY	J 39439-3 Bushing Installer
Courtesy of GENERAL MOTORS COMPANY	J 39441 5th/6th Driven Gear Installer
Courtesy of GENERAL MOTORS COMPANY	J 39441-10 5th Gear Installer Adapter
Courtesy of GENERAL MOTORS COMPANY	J 39441-20 5th Gear Installer Adapter
Courtesy of GENERAL MOTORS COMPANY	J 39441-30 5th Gear Installer Adapter
Courtesy of GENERAL MOTORS COMPANY	J 39442 Press Adapter
Courtesy of GENERAL MOTORS COMPANY	J 39443 Split Plate
Courtesy of GENERAL MOTORS COMPANY	J 39473 Mainshaft Bearing Installer/Adapter
Courtesy of GENERAL MOTORS COMPANY	J 39546 Bearing Race Installer
Courtesy of GENERAL MOTORS COMPANY	J 39547 Press Adapter
Courtesy of GENERAL MOTORS COMPANY	J 39594 Bearing Race Remover
Courtesy of GENERAL MOTORS COMPANY	J 39790 Mainshaft Bearing Race Remover
Courtesy of GENERAL MOTORS COMPANY	J 41099 Skip Shift Sensor Remover/Installer
Courtesy of GENERAL MOTORS COMPANY	J 41816 Crankshaft Balancer Remover
Courtesy of GENERAL MOTORS COMPANY	J 42464 Shift Shaft Seal Installer
Courtesy of GENERAL MOTORS COMPANY	J 44384 Shift Fork Bearing Installer
Courtesy of GENERAL MOTORS COMPANY	J 44395 Transmission Holding Fixture
Courtesy of GENERAL MOTORS COMPANY	J 44735 Installation Tube
Courtesy of GENERAL MOTORS COMPANY	J 44765 Seal Installer
Courtesy of GENERAL MOTORS COMPANY	J 44873 Shoulder Bolts
Courtesy of GENERAL MOTORS COMPANY	J 45012 Holding Fixture
Courtesy of GENERAL MOTORS COMPANY	J 45019 Flange and Pinion Gauge Remover
Courtesy of GENERAL MOTORS COMPANY	J 45124 Removal Bridge
Courtesy of GENERAL MOTORS COMPANY	J 45124-9 Puller Leg
