Front Wheelhouse Liner Replacement (Right Side)

Courtesy of GENERAL MOTORS COMPANY

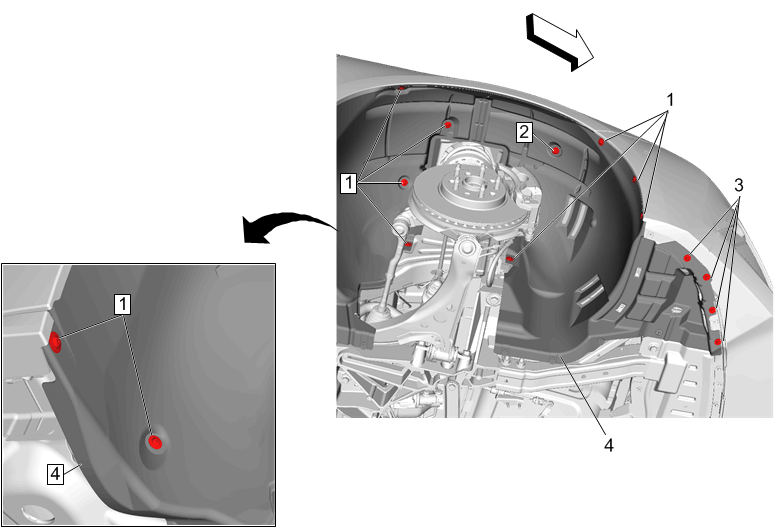

Callout	Component Name
Preliminary Procedures Tire and Wheel Removal and Installation Front Compartment Air Deflector Replacement Front Tire Front Air Deflector Replacement
1	CAUTION: Fastener Caution Front Wheelhouse Liner Screw [10x]Tighten 2.5 N.m (22 lb in)
2	Retainer
3	Front Wheelhouse Liner Bolt [4x] Tighten 2.5 N.m (22 lb in)
4	Front Wheelhouse Liner
