Front Fender Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

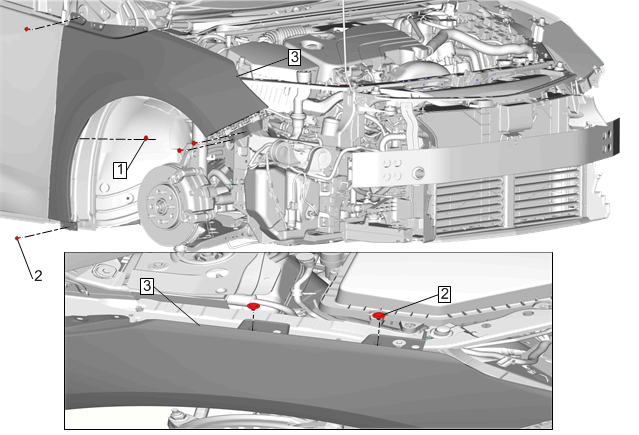

Callout	Component Name
Preliminary Procedures Front Headlamp Replacement Front Fender Upper Rear Molding Replacement Rocker Panel Molding Replacement
1	Front Fender Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Fender Nut Tighten 9 N.m (80 lb in)
3	Front Fender Procedure Transfer components as necessary.
