Rocker Panel Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

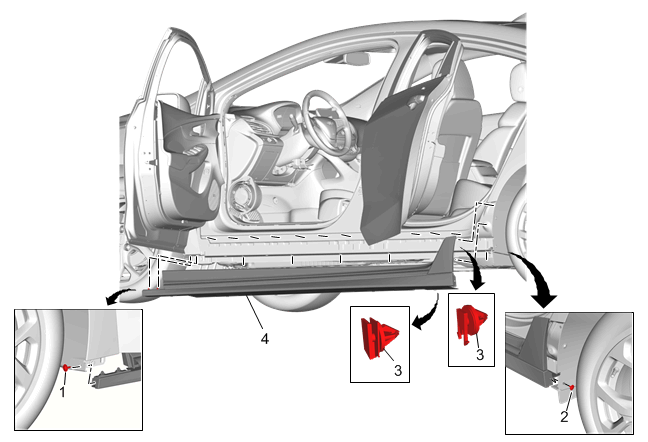

Callout	Component Name
Preliminary Procedure Front and Rear Side Door Lower Auxiliary Weatherstrip Replacement
1	Front Wheelhouse Liner Screw CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Wheelhouse Liner Screw Tighten 2.5 N.m (22 lb in)
3	Rocker Panel Molding Retainer [22x] Procedure Using a trim-type release tool, disengage the [8x] retainers from the bottom side of the rocker panel molding and rocker outer panel reinforcement. Using a trim-type release tool, disengage the [14x] retainers from the side of the rocker panel molding and frame.
4	Rocker Panel Molding Procedure Replace any damaged or broken retainers prior to installing the rocker panel molding.
