Front Fender Upper Rear Molding Replacement

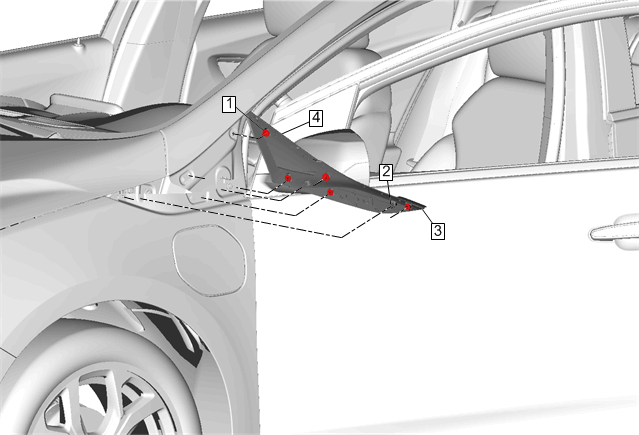

GM4093572Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Open the door.
  2. Open the hood.
1 Front Fender Upper Rear Molding Retainer[5x]
2 Front Fender Upper Rear Molding Guide Pin [2x]
3 Front Fender Upper Rear Molding Adhesive
4 Front Fender Upper Rear Molding

Procedure

  1. Apply a suitable tape around the front fender upper rear molding.
  2. Using a suitable trim-type release tool, carefully release the front fender upper rear molding retainers.
  3. Replace retainers if necessary.
