Installation Procedure

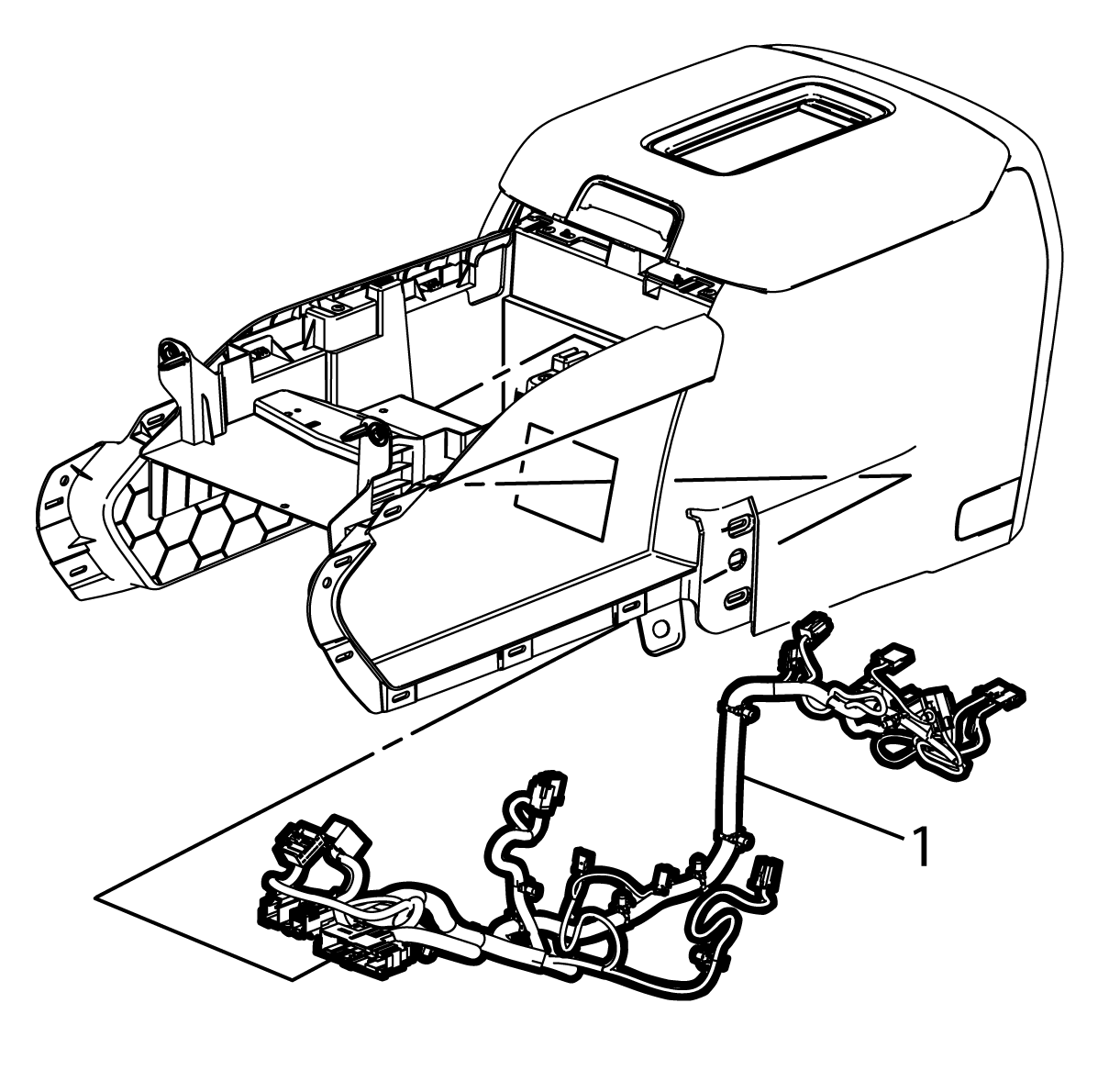

  1. GM3636215Courtesy of GENERAL MOTORS COMPANY

    Reposition the harness (1) through the access hole of the front floor console assembly.

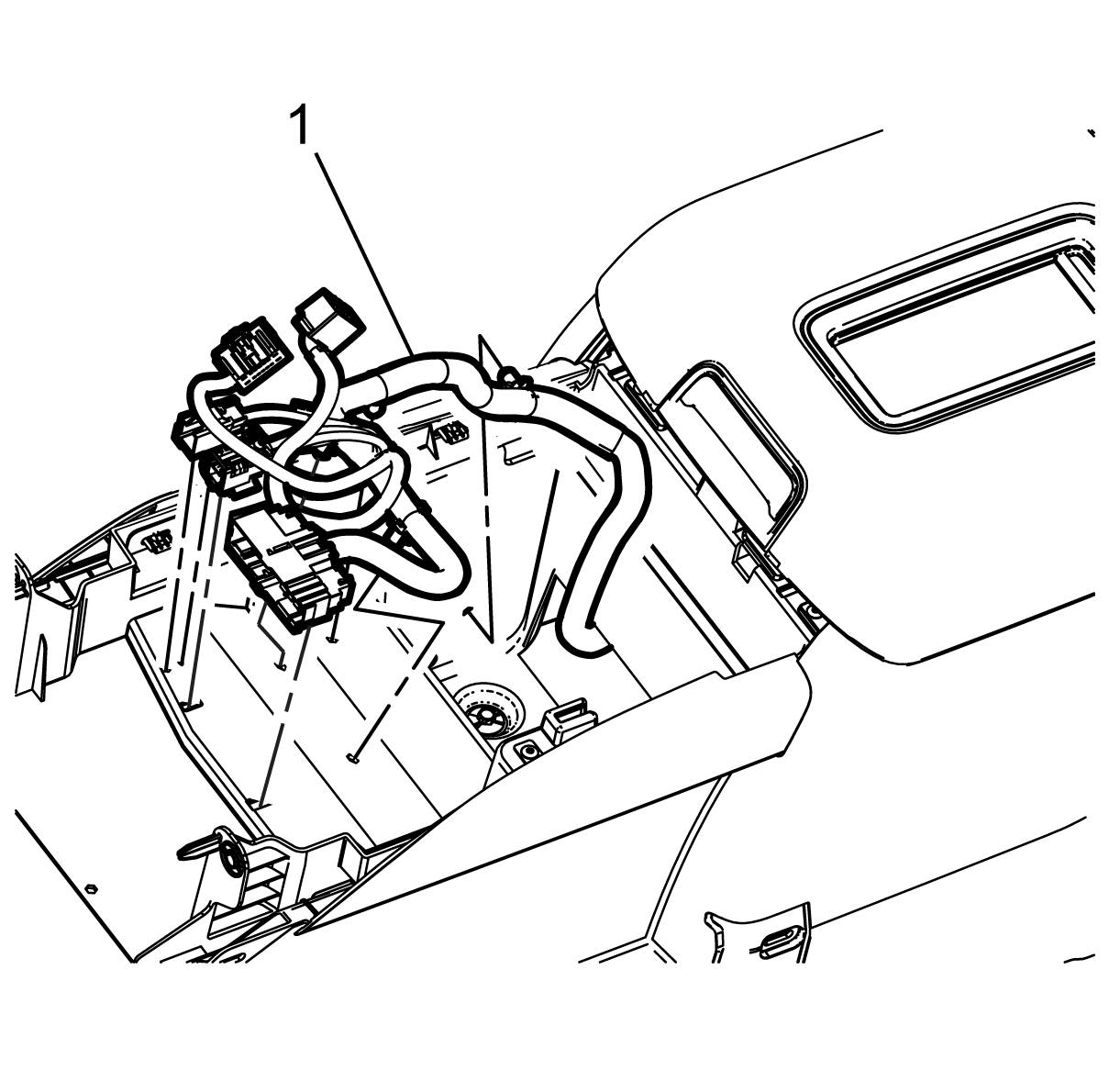

  2. GM3636214Courtesy of GENERAL MOTORS COMPANY

    Connect the harness retainers (1) securing the wiring harness to the front floor console assembly.

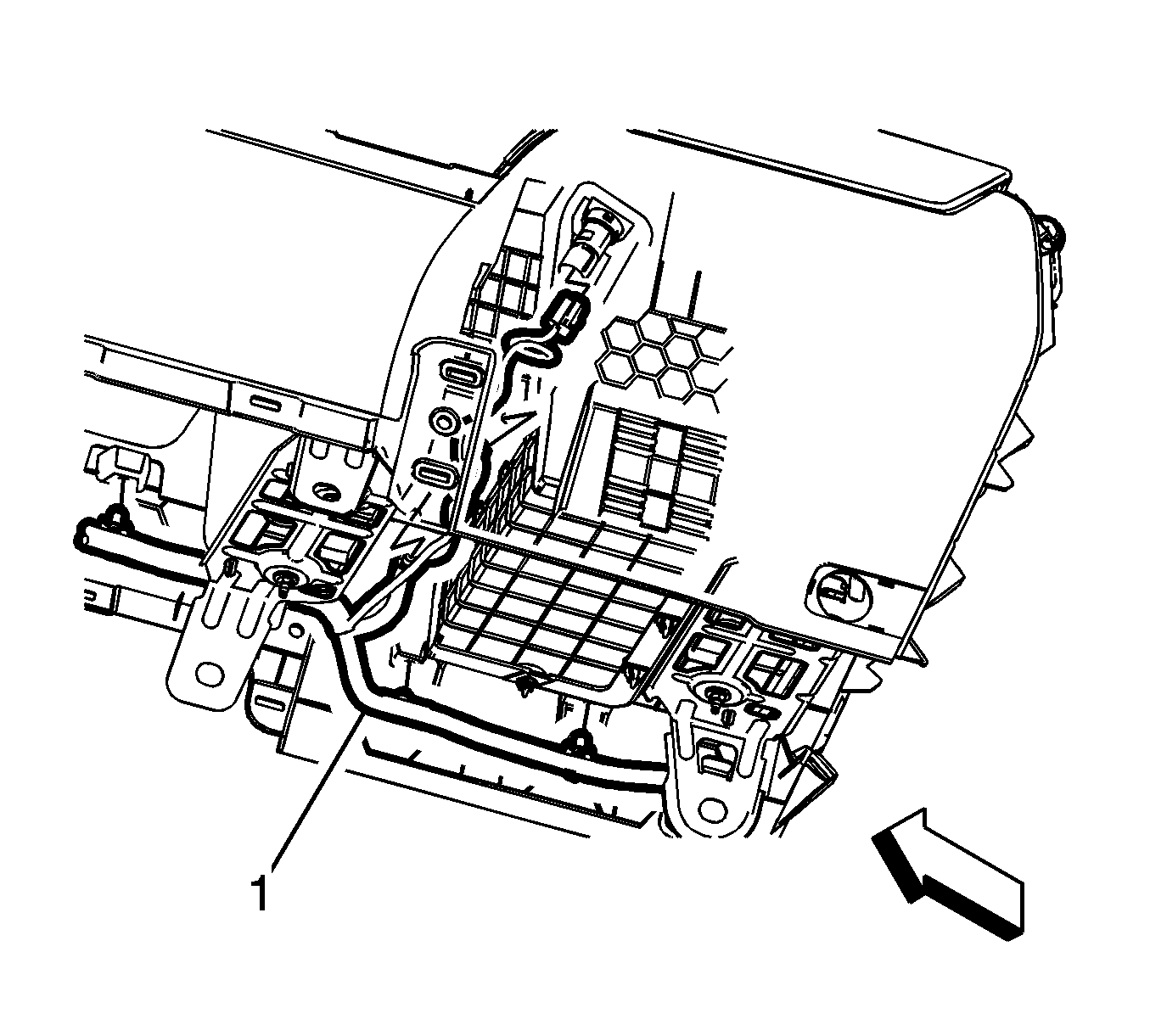

  3. GM3268757Courtesy of GENERAL MOTORS COMPANY

    Connect the harness retainers and connectors (1) securing the wiring harness to the front floor console assembly.

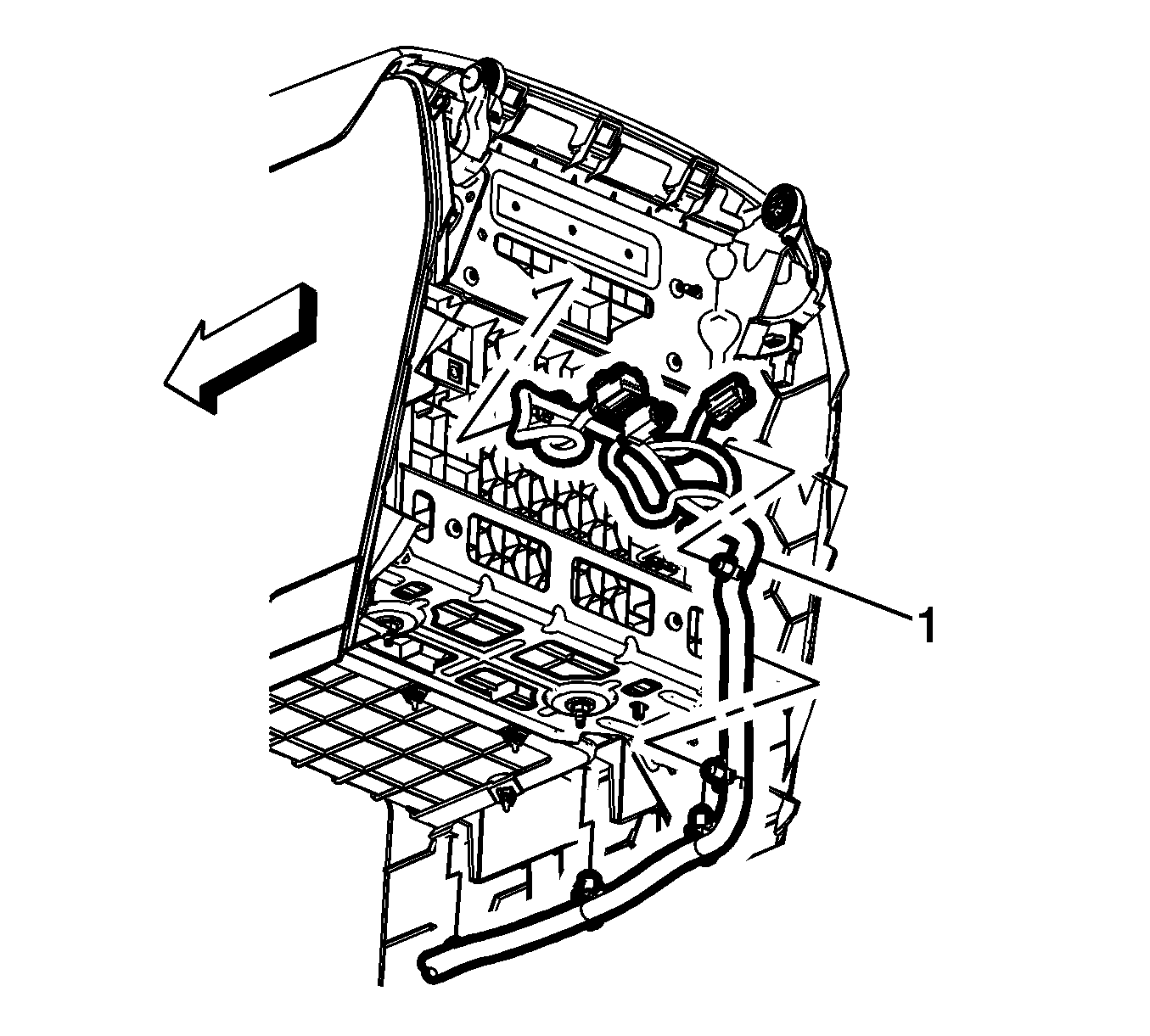

  4. GM3268550Courtesy of GENERAL MOTORS COMPANY

    Connect the harness retainers (1) securing the wiring harness to the front floor console assembly.

  5. Install the front floor console front compartment. Refer to Front Floor Console Front Compartment Replacement (Chevrolet / GMC) .
  6. Install the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement (Chevrolet / GMC) .
  7. Install the front floor console. Refer to Front Floor Console Replacement (Chevrolet / GMC) .
