Front Floor Console Rear Trim Panel Replacement (Chevrolet / GMC)

Courtesy of GENERAL MOTORS COMPANY

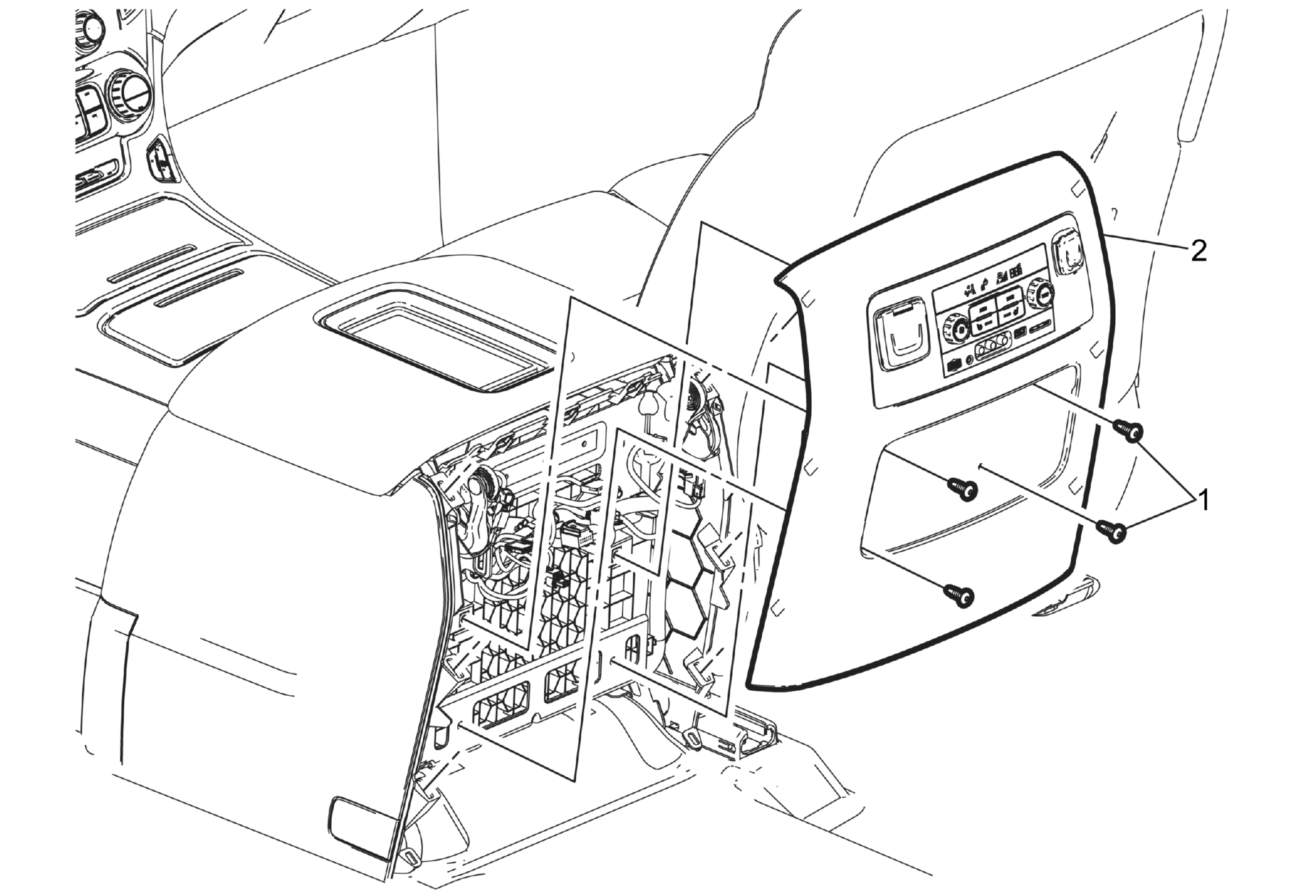

Callout	Component Name
Preliminary Procedure Remove the front floor console rear stowage liner. Refer to Front Floor Console Rear Stowage Liner Replacement (Chevrolet / GMC) .
1	Front Floor Console Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Rear Trim Panel Procedure Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim panel to the front floor console assembly. Release the lower portion first, then lift up and release the top portion. Disconnect the electrical connection. When replacing the trim panel, transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the front floor console rear stowage liner. Refer to Front Floor Console Rear Stowage Liner Replacement (Chevrolet / GMC) .

Front Floor Console Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Rear Trim Panel

Procedure

Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim panel to the front floor console assembly.
Release the lower portion first, then lift up and release the top portion.
Disconnect the electrical connection.
When replacing the trim panel, transfer all necessary components.
