Front Floor Console Side Trim Panel Replacement - Left Side (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

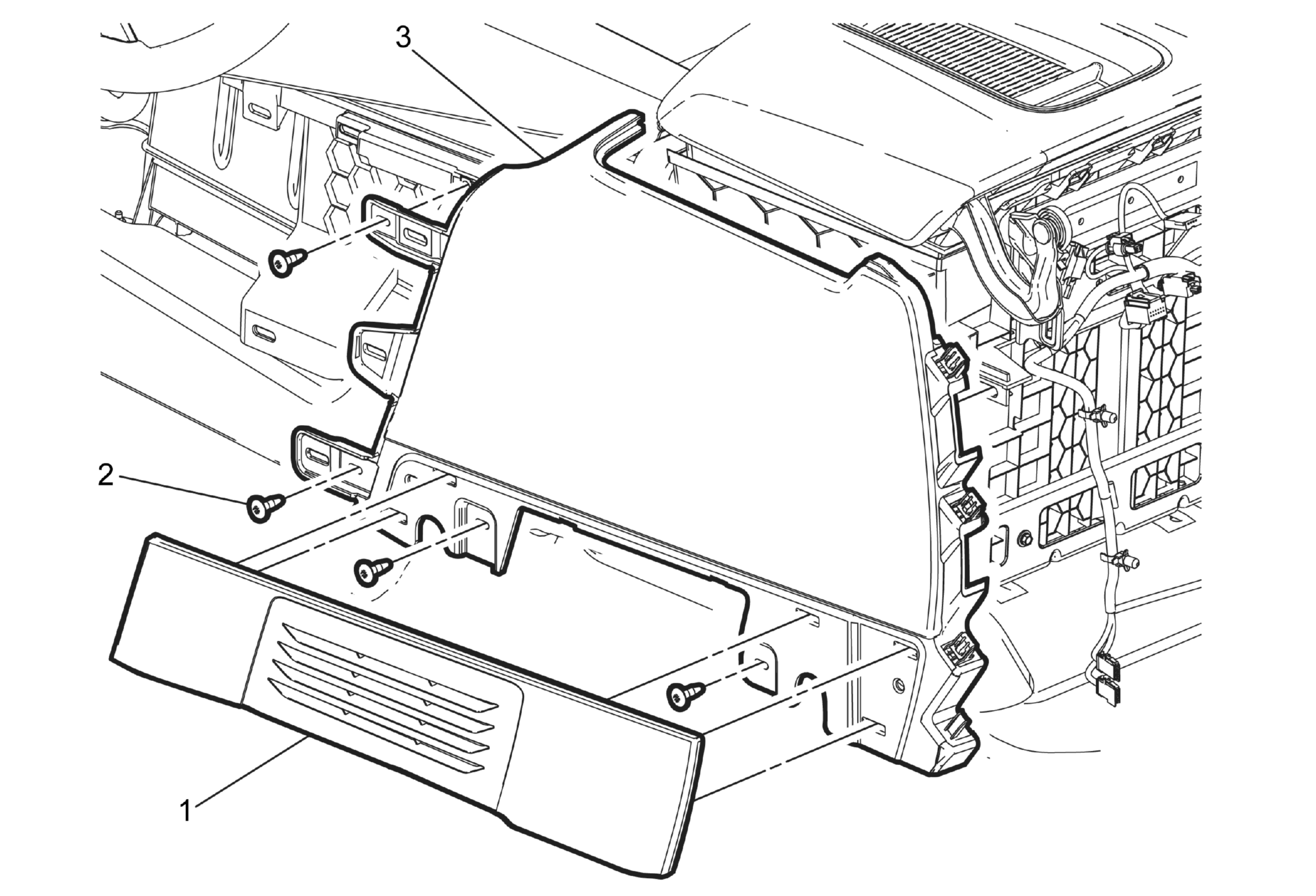

Callout	Component Name
Preliminary Procedure Front Seat Removal and Installation Front Floor Console Applique Replacement - Left Side (Cadillac) Front Floor Console Rear Trim Panel Replacement (Cadillac) . Front Floor Console Extension Panel Replacement - Left Side (Cadillac) .
1	Front Floor Console Side Trim Panel Vent Procedure Use a flat bladed plastic trim tool.
2	Front Floor Console Side Trim Panel Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Floor Console Side Trim Panel - Left Side
