Front Floor Console Rear Trim Panel Replacement (Cadillac)

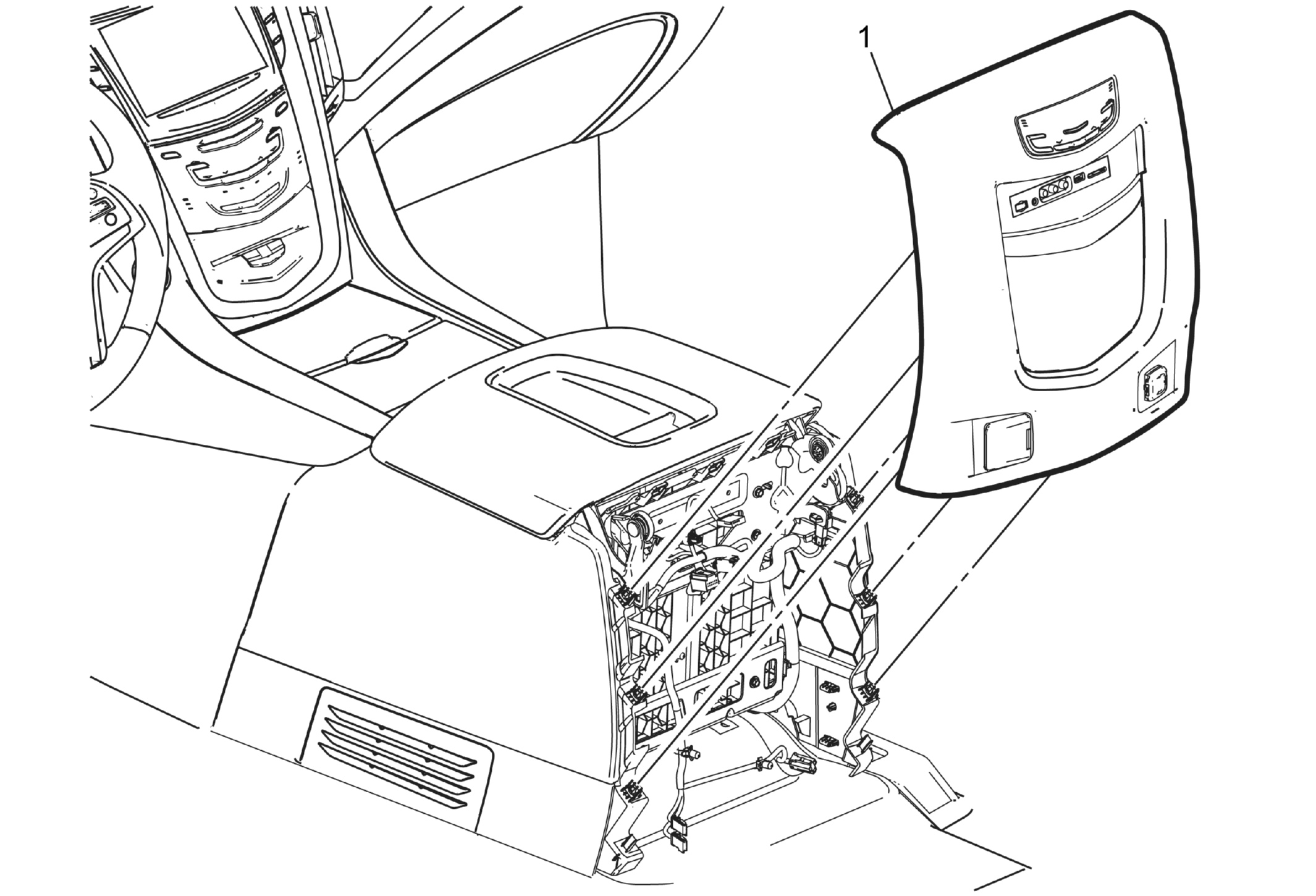

GM3641404Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Rear Trim Panel

Procedure

  1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim panel to the front floor console assembly.
  2. Disconnect the electrical connection.
  3. When replacing the trim panel, transfer all necessary components.
