Installation Procedure

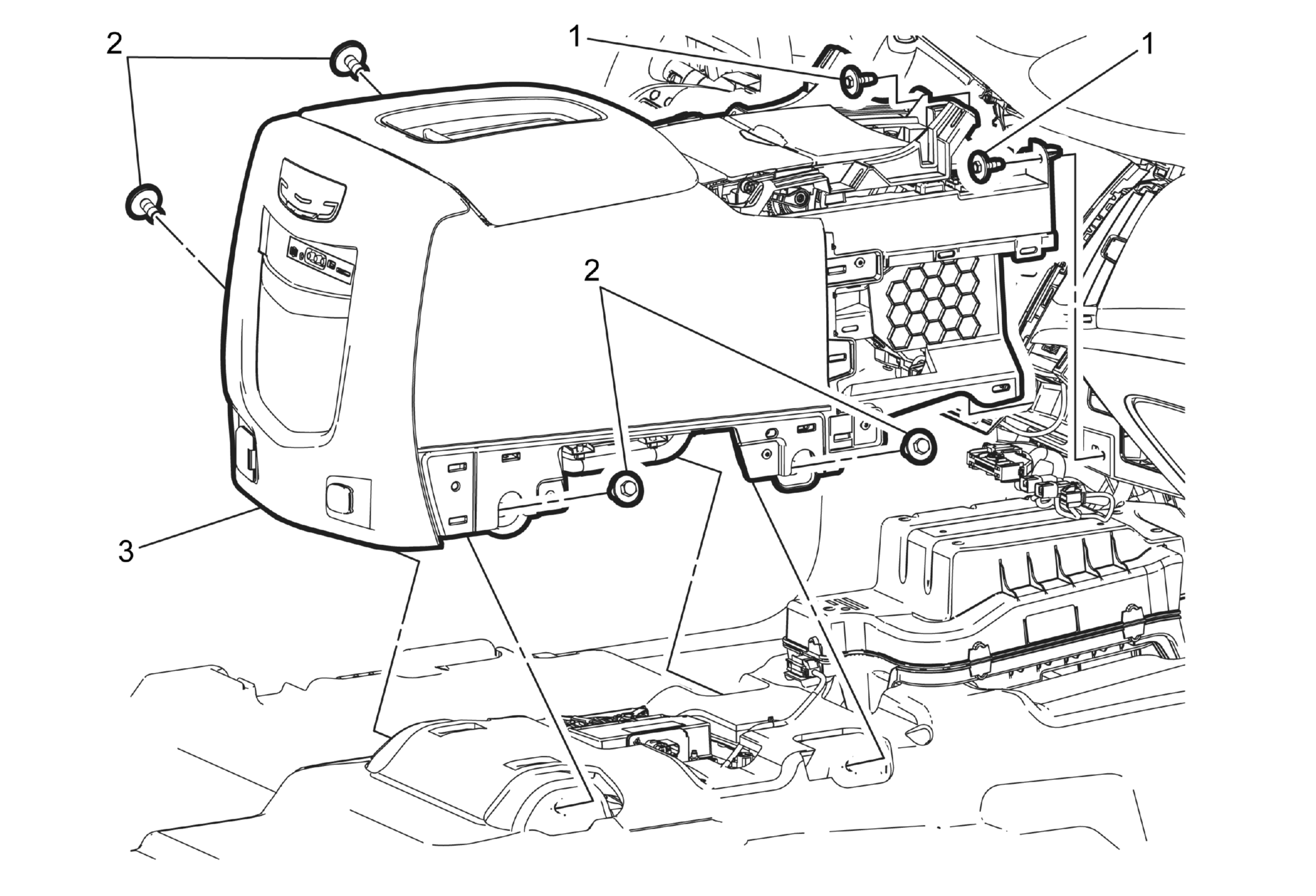

  1. GM3648998Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    With the aid of an assistant return the front floor console (3) to the vehicle.

  2. Connect all electrical connectors.
  3. Install the front floor console bolts @Instrument Panel (1) and tighten to 9 N.m (80 lb in).
  4. Install the front floor console bolts @Floor Tunnel (2) and tighten to 45 N.m (33 lb ft).

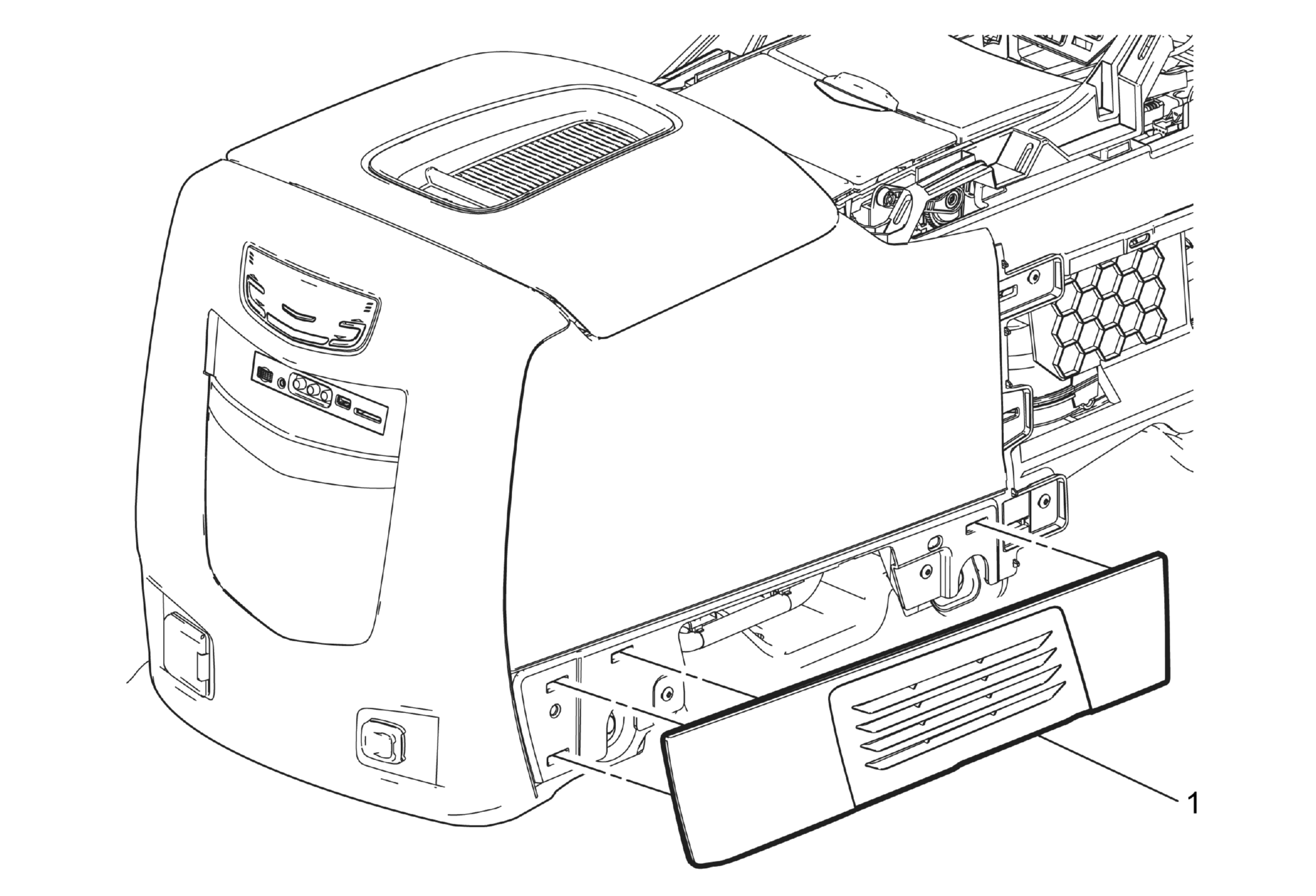

  5. GM3648997Courtesy of GENERAL MOTORS COMPANY

    Install the left and right front floor console side trim panel (1) to the front floor console assembly.

  6. Install the instrument panel lower trim plate applique. Refer to Instrument Panel Lower Trim Plate Applique Replacement (Cadillac) .
  7. Install the right front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Right Side (Cadillac) .
  8. Install the left front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side (Cadillac) .
  9. Install the driver and passenger seat. Refer to Front Seat Removal and Installation .
