Front Floor Console Extension Panel Replacement - Right Side (Cadillac)

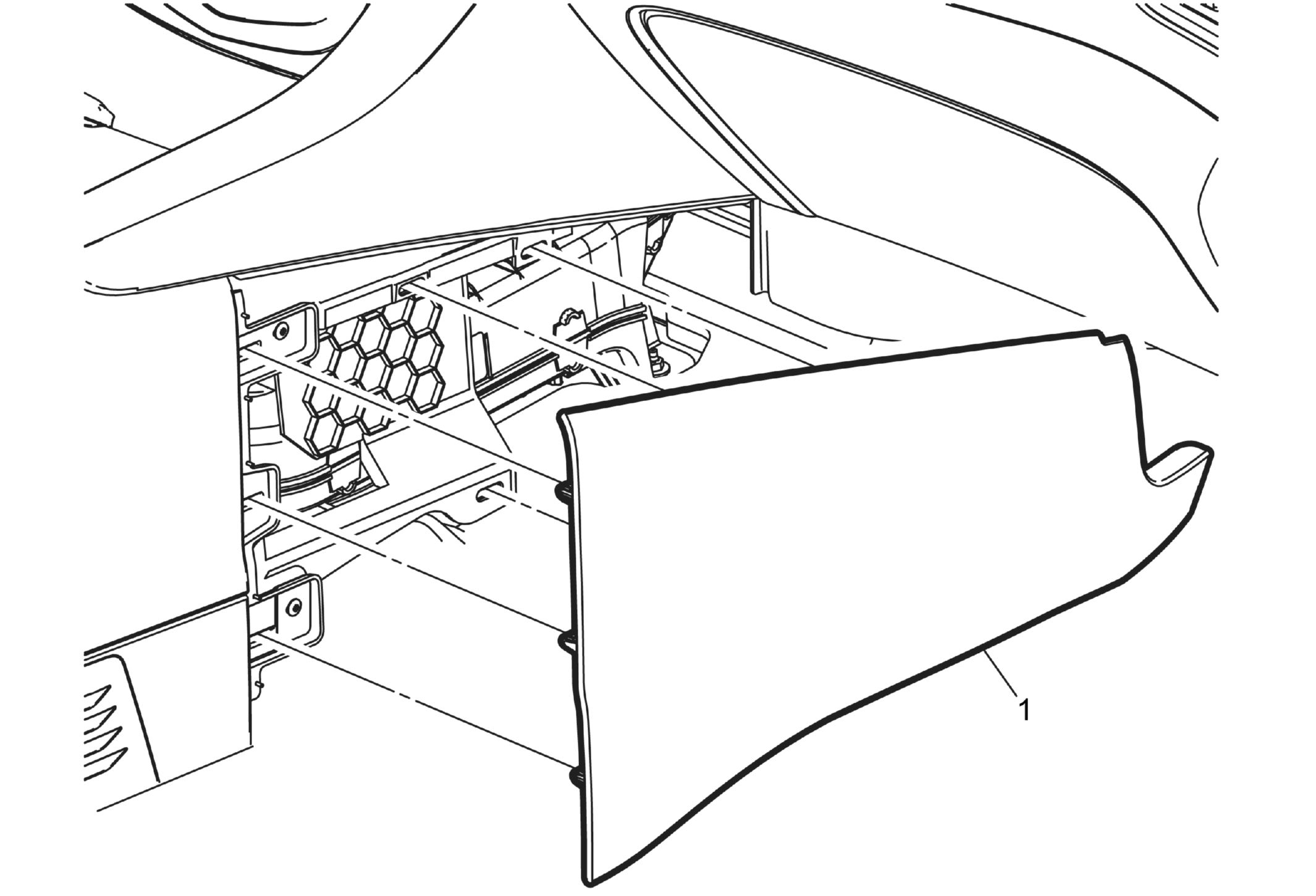

GM3632714Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Extension Panel - Right Side

Procedures

  1. Move the front seat rearward to access the retainers at the rear of the panel
  2. Use a flat bladed plastic trim tool in order to release the retainer clips securing the panel to the front floor console assembly.
