Air Conditioning Compressor Replacement (1.6L Diesel LH7)

Courtesy of GENERAL MOTORS COMPANY

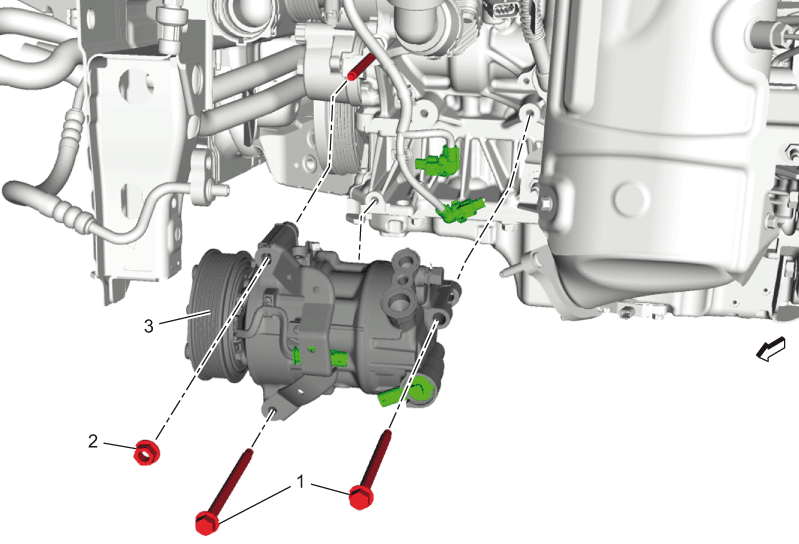

Callout	Component Name
Preliminary Procedures Battery Negative Cable Disconnection and Connection Refrigerant Recovery and Recharging (R-1234yf) Front Compartment Insulator Replacement Generator and Air Conditioning Compressor Belt Replacement Charge Air Cooler Inlet Air Hose Replacement Air Conditioning Compressor Hose @ Air Conditioning Compressor - Remove - Air Conditioning Compressor Hose Replacement (1.6L (LVL) Diesel)
1	Air Conditioning Compressor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Air Conditioning Compressor Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
3	Air Conditioning Compressor Procedure Disconnect the electrical connector. When replacing the A/C compressor, balance the compressor oil. Air Conditioning Compressor Oil Balancing Using the GE 50078 Electronic Leak Detector leak test A/C compressor fittings. Special Tools GE 50078 Electronic Leak Detector Equivalent regional tools: Special Tools
