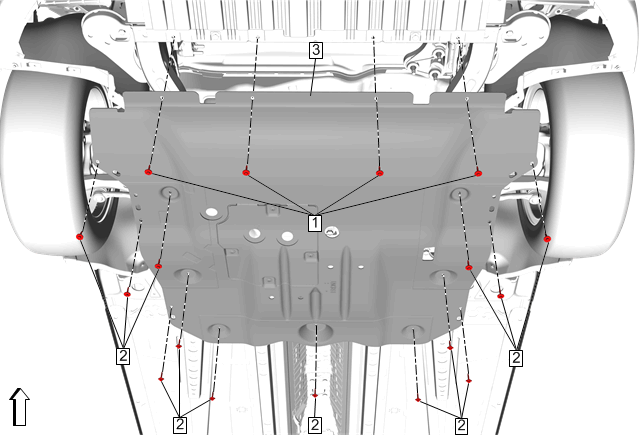

Front Compartment Insulator Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Front Bumper Extension Retaining Bolt [4x] CAUTION: Fastener Caution Tighten  2.5N.m (22 lb in)
2	Front Compartment Insulator Bolt [13x] Tighten  2.5N.m (22 lb in)
3	Front Compartment Insulator
