Installation Procedure

WARNING: This page is about a different variant/trim than selected.

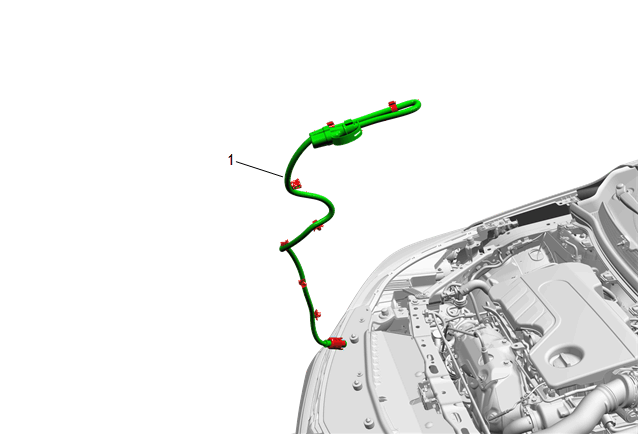

  1. GM5313660Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Heater Power Cable (1) - Install

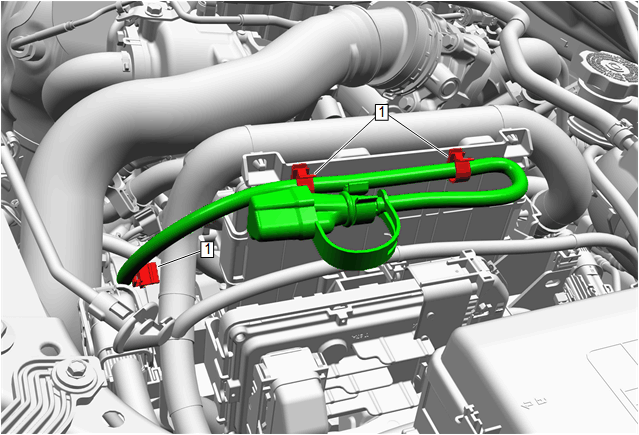

  2. GM5313658Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Heater Power Cable Clip (1) - Install [3x]

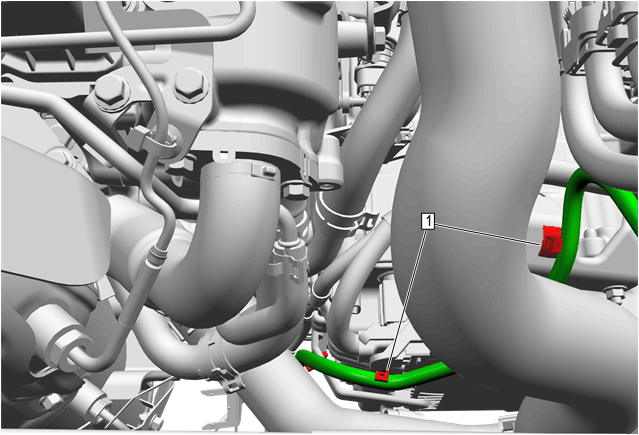

  3. GM5313659Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Heater Power Cable Clip (1) - Install [2x]

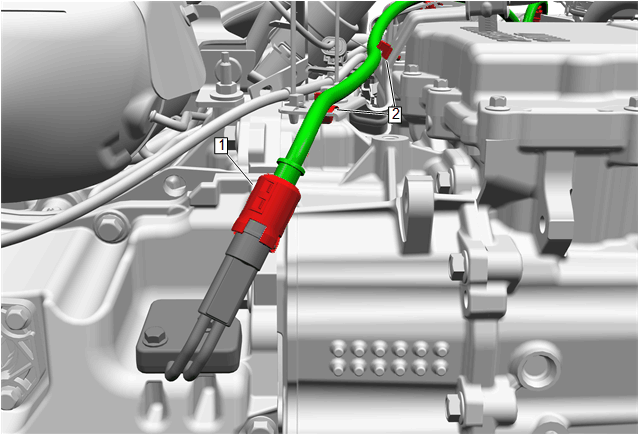

  4. GM5313657Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Heater Power Cable Clip (2) - Install [2x]

  5. Engine Oil Heater Power Cable Connector (1) - Connect
  6. Front Compartment Insulator - Install - Front Compartment Insulator Replacement
