Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Camshaft Housing Gasket (5) @ Camshaft Housing (4) - Install NEW
Camshaft Housing Bolt (2) @ Camshaft Housing (4) - Install [20x]
Inspect the correct seat of the camshaft housing bolt bushings (3) and the camshaft housing cover insulators (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Mind the different bolts.

Install the camshaft housing cover (3) along with the camshaft housing gasket (5) and the 20 camshaft housing bolts (1, 2, 4).
Camshaft Housing Bolt (1, 2, 4) - Hand tighten [20x]
Fig 1: Identifying Camshaft Housing Bolts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Camshaft Housing Bolt - Tighten in sequence [20x] 10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

Engine Oil Level Indicator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Engine Lift Bracket (1) - Install
Engine Lift Bracket Bolt (2) - Install and tighten 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Coolant Feed Pipe (4) - Reposition
Turbocharger Wastegate Actuator Pipe (2) - Reposition
Install the turbocharger wastegate actuator pipe nut (5) and tighten to 10 N.m (89 lb in)
Turbocharger Wastegate Actuator Pipe Bolt (1, 3) - Install and tighten [3x] 10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Heat Shield (2) - Install
Turbocharger Heat Shield (2) @ Clamp (3) - Install
Turbocharger Heat Shield Bolt (1) - Install and tighten [2x] 10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Heat Shield (2) - Install
Turbocharger Heat Shield Nut (3) - Install and tighten 9 N.m (80 lb in)
Turbocharger Heat Shield Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not bend the cable sharply at the base of either the sensing unit or sensor ECU in the final mounting position

Nitrogen Oxides Sensor (2) - Install and tighten 50 N.m (37 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Engine Control Module Wiring Harness Bracket (2) - Reposition
Engine Control Module and Engine Wiring Harness Bracket Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Engine Lift Bracket (1) - Install
Engine Lift Bracket Bolt (2) - Install and tighten 58 N.m (43 lb ft)
Wiring Harness Clip (3) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.

Air Cleaner Outlet Duct (3) - Install

CAUTION:

Fastener Caution

Air Cleaner Outlet Duct Clamp (1, 2) - Tighten [2x] 3.5 N.m (31 lb in)
Courtesy of GENERAL MOTORS COMPANY

Wiring Harness (3) - Reposition
Electrical Connector (2) @ Positive Crankcase Ventilation Heater (1) - Connect
Wiring Harness Clip (4) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
There must be a noticeable click noise.

Positive Crankcase Ventilation Heater (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Exhaust Temperature Sensor Electrical Connector Bracket (3) - Install
Exhaust Temperature Sensor Electrical Connector Bracket Bolt (1, 2) - Install and tighten [3x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Wiring Harness (3) - Reposition
Clip (2) @ Exhaust Temperature Sensor Bracket (4) - Install
Wiring Harness Clip (1) @ Exhaust Temperature Sensor Bracket (4) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Air Bleed Hose (1) - Reposition
Engine Coolant Air Bleed Hose (1) @ Retainer Clip (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness (3) - Reposition
Wiring Harness Clip (2, 4) - Install [3x]
Engine Wiring Harness Conduit Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

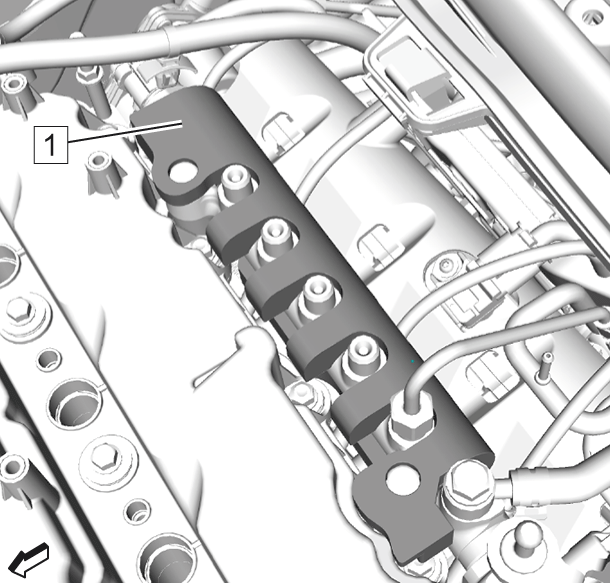

Fuel Injection Fuel Rail Noise Shield (1) - Install
Fuel Injector - Install [4x] - Fuel Injector Replacement
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Install the engine sight shield. Engine Sight Shield Replacement
