Engine Sight Shield Replacement

WARNING: This page is about a different variant/trim than selected.

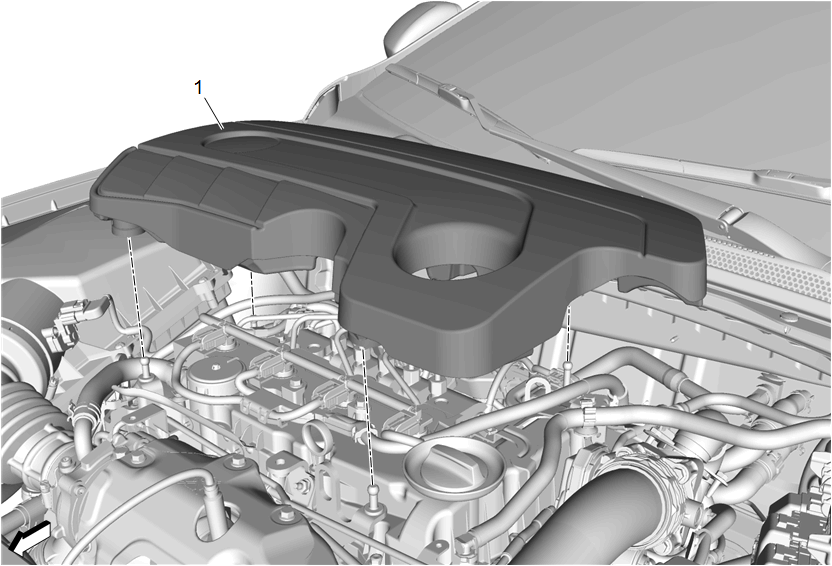

GM3252298Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine Sight Shield
Procedure
Release the engine sight shield retainers by pulling the engine sight shield upwards.
