Instrument Panel Center Air Outlet Replacement

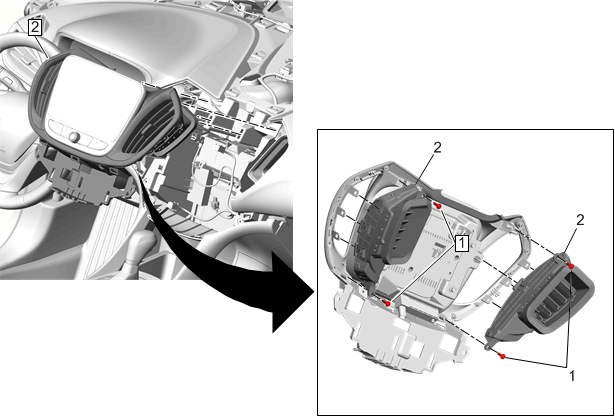

GM4083573Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Instrument Panel Extension Replacement
  2. Heater and Air Conditioning User Interface Control Replacement
  3. Instrument Panel Lower Center Trim Panel Replacement (Upper)Instrument Panel Lower Center Trim Panel Replacement (Lower) - Upper
1 Instrument Panel Center Air Outlet Bracket Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
0.5 N.m (4 lb in)
2 Instrument Panel Center Air Outlet

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Disconnect the electrical connectors.
  3. Release the plastic retaining tabs.
  4. Transfer components as necessary.
