Heater and Air Conditioning User Interface Control Replacement

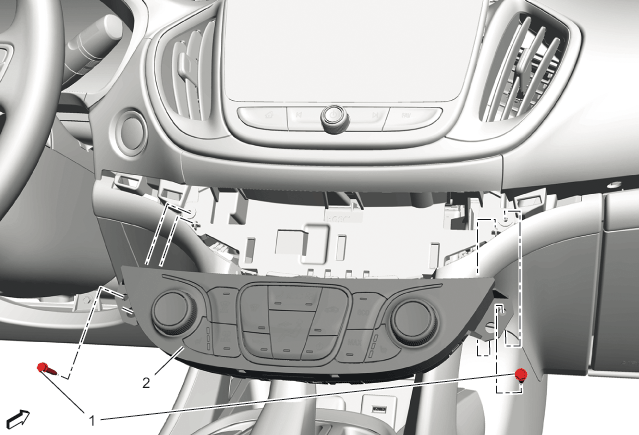

GM4084553Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Trim Plate Applique Replacement - Right Side
  2. Instrument Panel Lower Center Trim Panel Replacement (Upper)Instrument Panel Lower Center Trim Panel Replacement (Lower)
1 Heater and Air Conditioning User Interface Control Bolt [2x]
CAUTION:

Fastener Caution


Tighten
2.5N.m (22 lb in)
2 Heater and Air Conditioning User Interface Control

Procedure

    NOTE:

    Considerable force will be required to release the retainers.

  1. Release the three metal retainers securing the heater and air conditioning user interface control to the instrument panel center air outlet.
  2. Disconnect the electrical connector.
