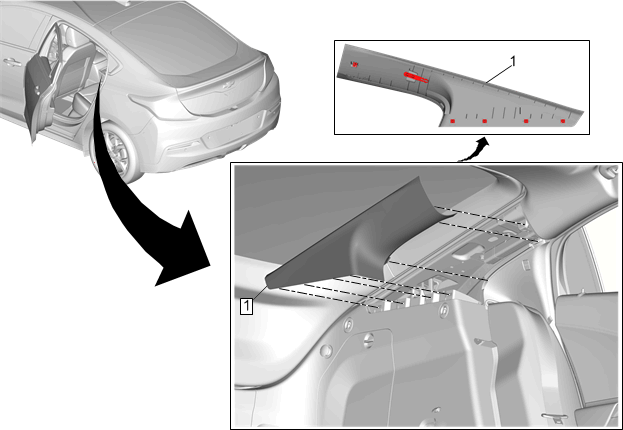

Body Lock Pillar Upper Trim Panel Replacement

GM4165915

Callout

Component Name

Preliminary Procedure
SIR Disabling and Enabling

1

Body Lock Pillar Upper Trim Panel

Procedure

Use a flat bladed plastic trim tool.
Pull outward from the top front to release the upper portion of the molding, then move upward to release the tabs.
Release the tether to remove.
The tether clip at the center portion of the body lock pillar upper trim panel MUST be replaced every time the body lock pillar upper trim panel is removed.
