Removal Procedure

WARNING: This page is about a different car, the 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Charge Air Cooler Outlet Air Hose Replacement - Remove
  2. Radiator Surge Tank - Reposition - Radiator Surge Tank Replacement (LUV, 2H0)Radiator Surge Tank Replacement (LE2)

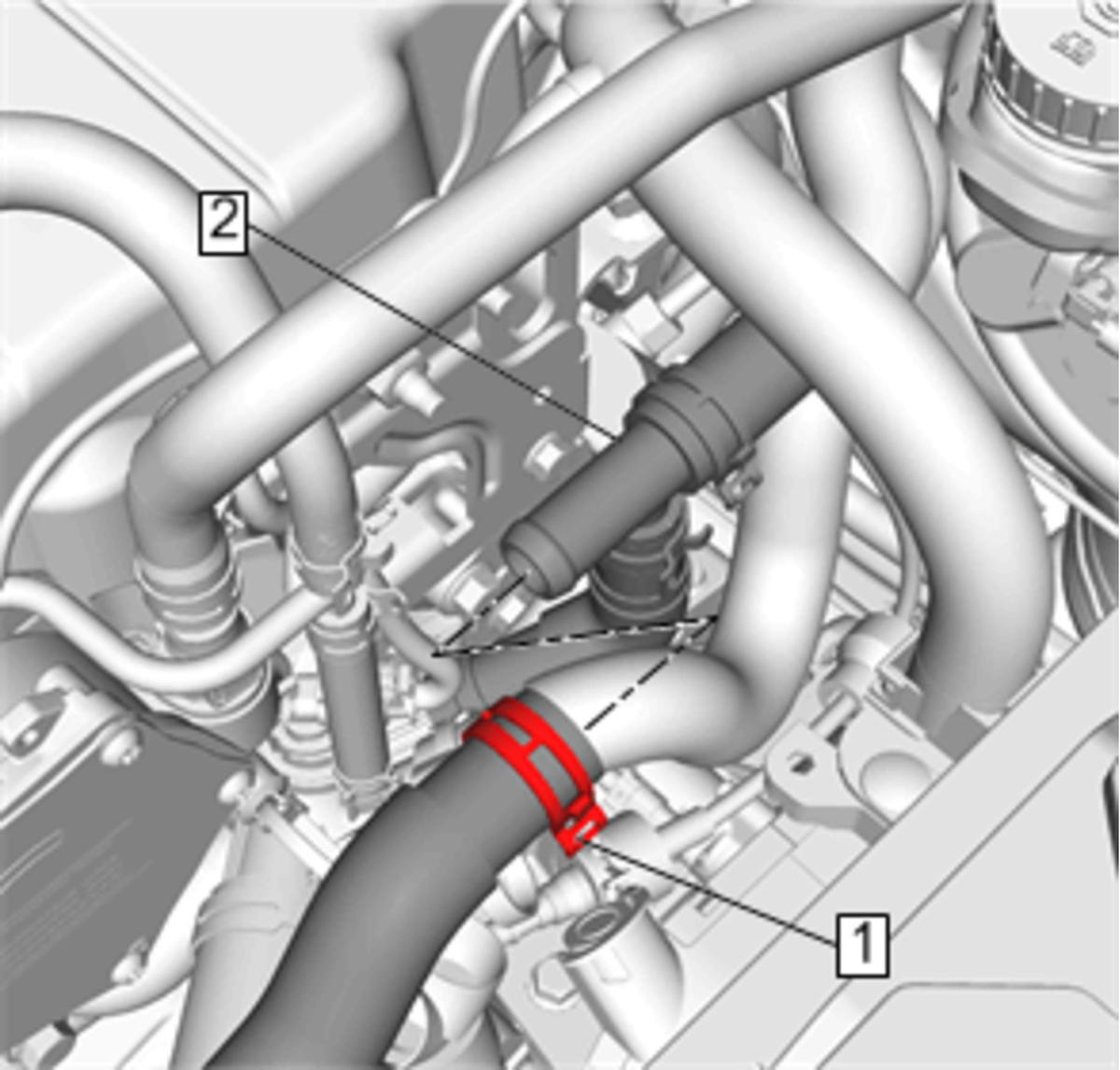

  3. GM4113411

    Radiator Surge Tank Outlet Hose - Reposition - Radiator Surge Tank Outlet Hose Replacement (LUV)Radiator Surge Tank Outlet Hose Replacement (2H0)Radiator Surge Tank Outlet Hose Replacement (LE2 Surge Tank Outlet Side)Radiator Surge Tank Outlet Hose Replacement (LE2 Intermediate Hose Piece)

  4. Reposition the three way connector and hose (2) as needed.

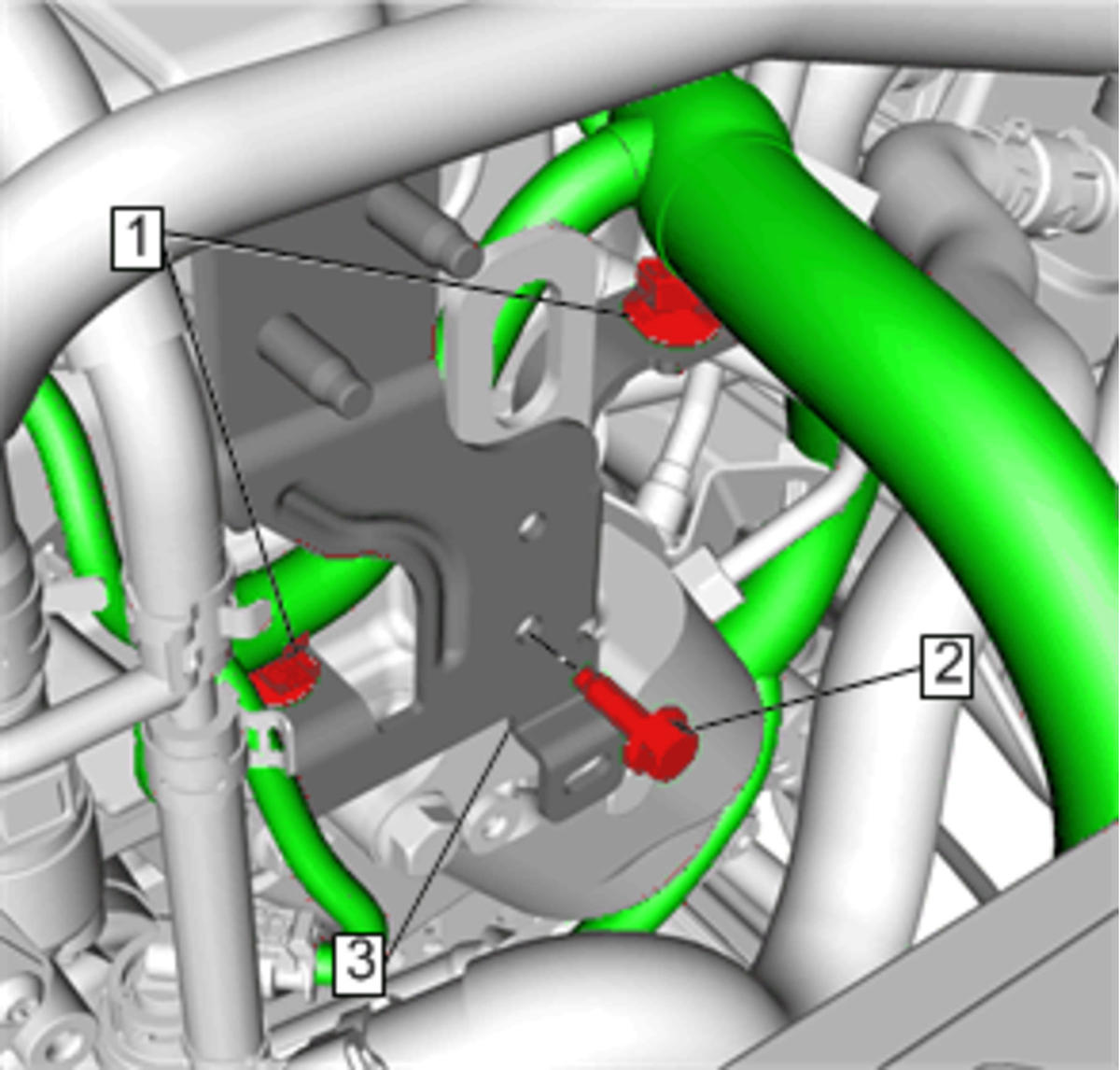

  5. GM4113735

    Engine Wiring Harness(1) - Unclip[2x]

  6. Engine Wiring Harness Bracket Bolt(2) - Remove
  7. Wiring Harness Bracket(3) - Remove

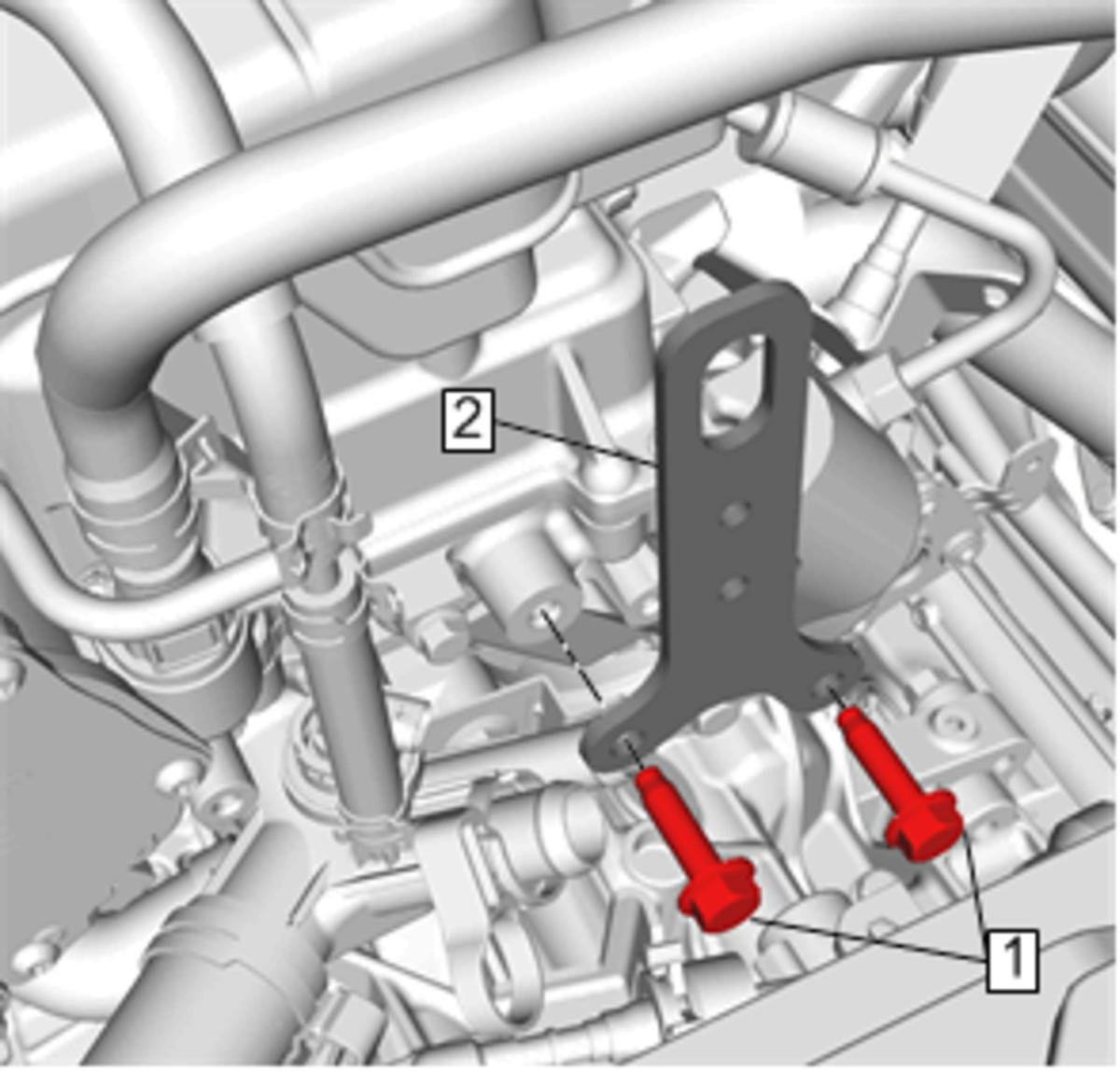

  8. GM4113675

    Engine Lift Bracket Bolt(1) - Remove

  9. Engine Lift Bracket(2) - Remove
