Radiator Surge Tank Outlet Hose Replacement (2H0)

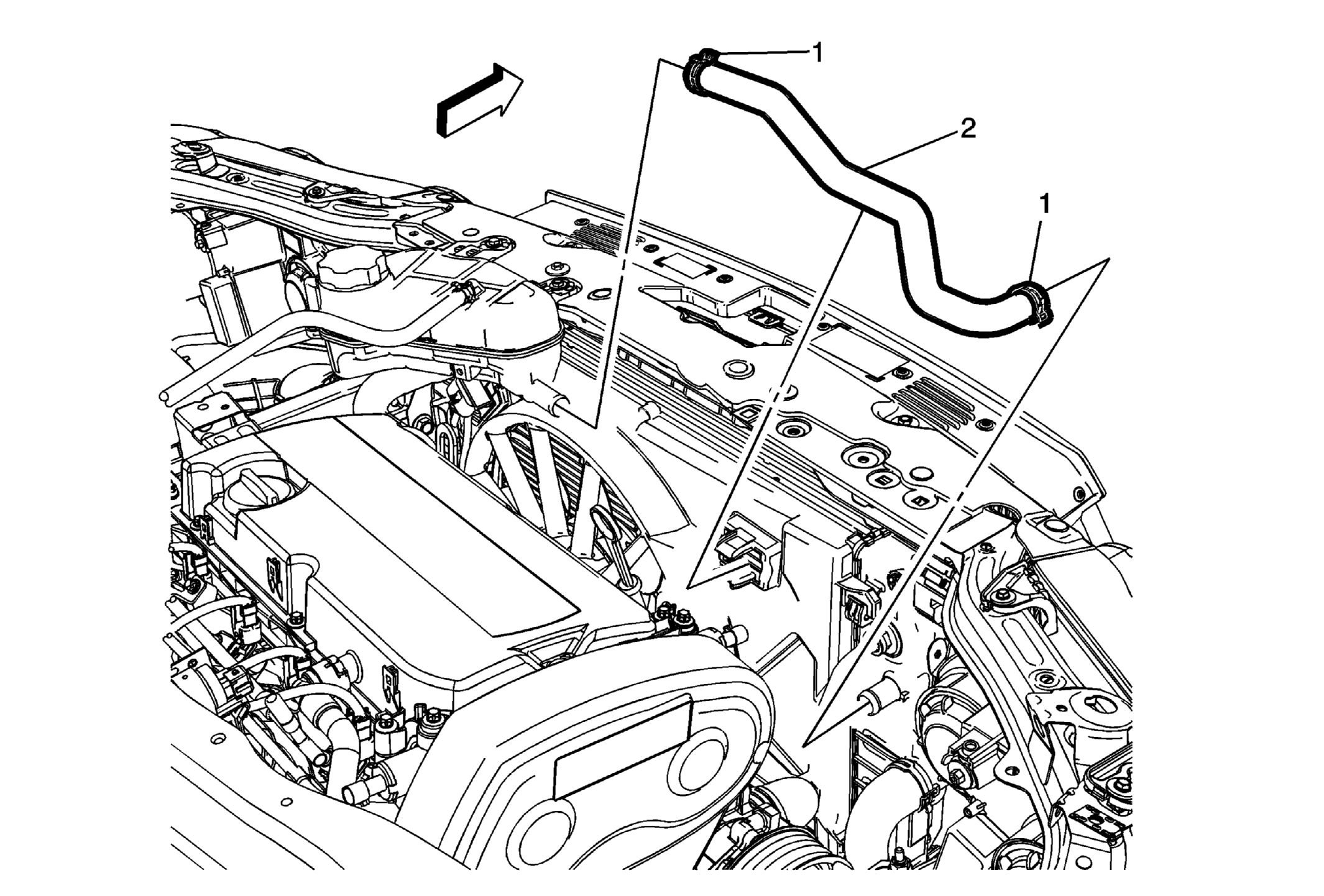

Callout	Component Name
Preliminary Procedure Drain the coolant. Refer to Cooling System Draining and Filling . Remove the air cleaner inlet duct assembly.
1	Radiator Surge Tank Outlet Hose Clamps (Qty: 2) Procedure Reposition the radiator surge tank outlet hose clamps using GE-47622 hose clamp pliers. Special Tools GE-47622 Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools .
2	Radiator Surge Tank Outlet Hose Procedure Unclip radiator surge tank outlet hose from fan shroud.

Callout

Component Name

Preliminary Procedure

Drain the coolant. Refer to Cooling System Draining and Filling .
Remove the air cleaner inlet duct assembly.

Radiator Surge Tank Outlet Hose Clamps (Qty: 2)
Procedure
Reposition the radiator surge tank outlet hose clamps using GE-47622 hose clamp pliers.
Special Tools
GE-47622 Hose Clamp Pliers
For equivalent regional tools, Refer to Special Tools .

Radiator Surge Tank Outlet Hose
Procedure
Unclip radiator surge tank outlet hose from fan shroud.
