Radiator Surge Tank Outlet Hose Replacement (LE2 Surge Tank Outlet Side)

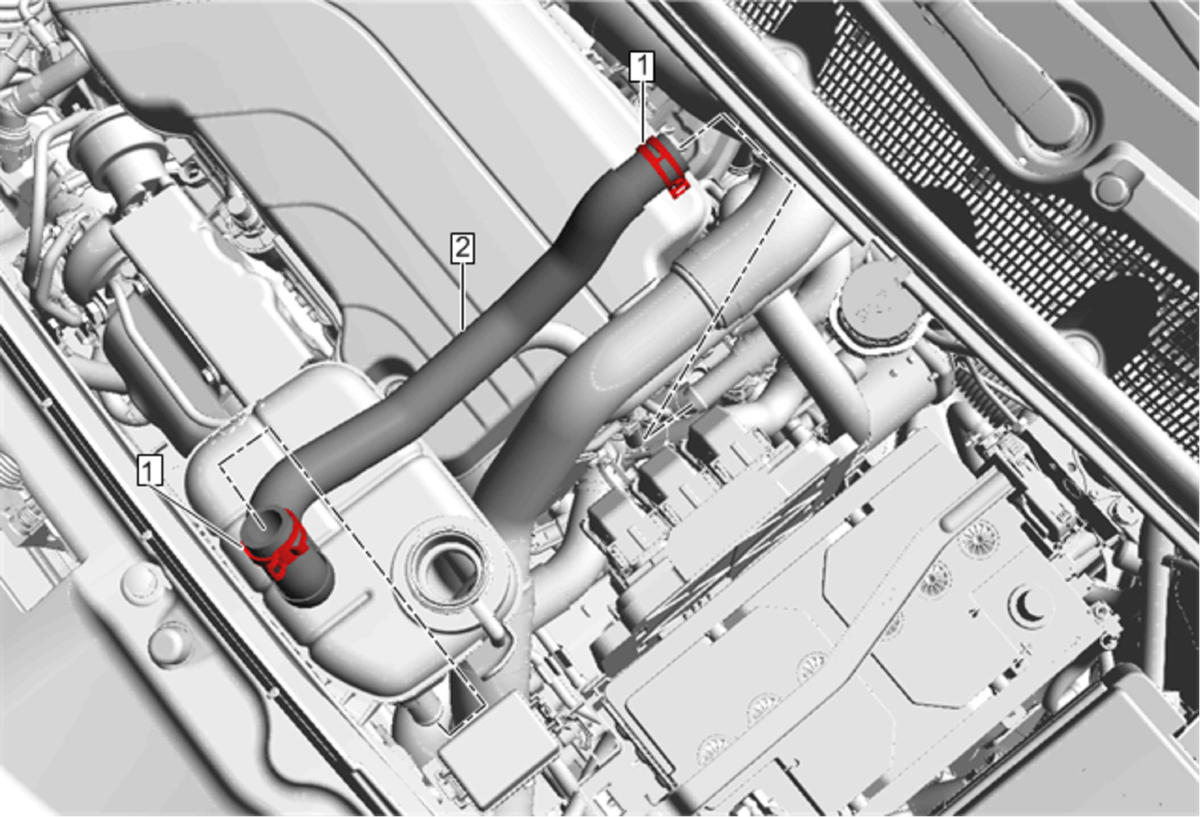

Callout	Component Name
Preliminary Procedure Cooling System Draining and Filling Radiator Surge Tank Replacement (LUV, 2H0) Radiator Surge Tank Replacement (LE2) - Reposition Charge Air Cooler Outlet Air Hose Replacement - Remove
1	Radiator Surge Tank Hose Clamp[2x] Procedure Reposition the radiator surge tank outlet hose clamps using BO-38185 Hose Clamp Pliers. Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools .
2	Radiator Surge Tank Outlet Hose Procedure Fill the engine coolant to the proper level. Cooling System Draining and Filling Check the cooling system for leaks.

Callout

Component Name

Preliminary Procedure

Cooling System Draining and Filling
Radiator Surge Tank Replacement (LUV, 2H0) Radiator Surge Tank Replacement (LE2) - Reposition
Charge Air Cooler Outlet Air Hose Replacement - Remove

Radiator Surge Tank Hose Clamp[2x]
Procedure
Reposition the radiator surge tank outlet hose clamps using BO-38185 Hose Clamp Pliers.
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, Refer to Special Tools .

Radiator Surge Tank Outlet Hose

Procedure

Fill the engine coolant to the proper level. Cooling System Draining and Filling
Check the cooling system for leaks.
