Warm Up Three-Way Catalytic Converter Replacement (LE2)

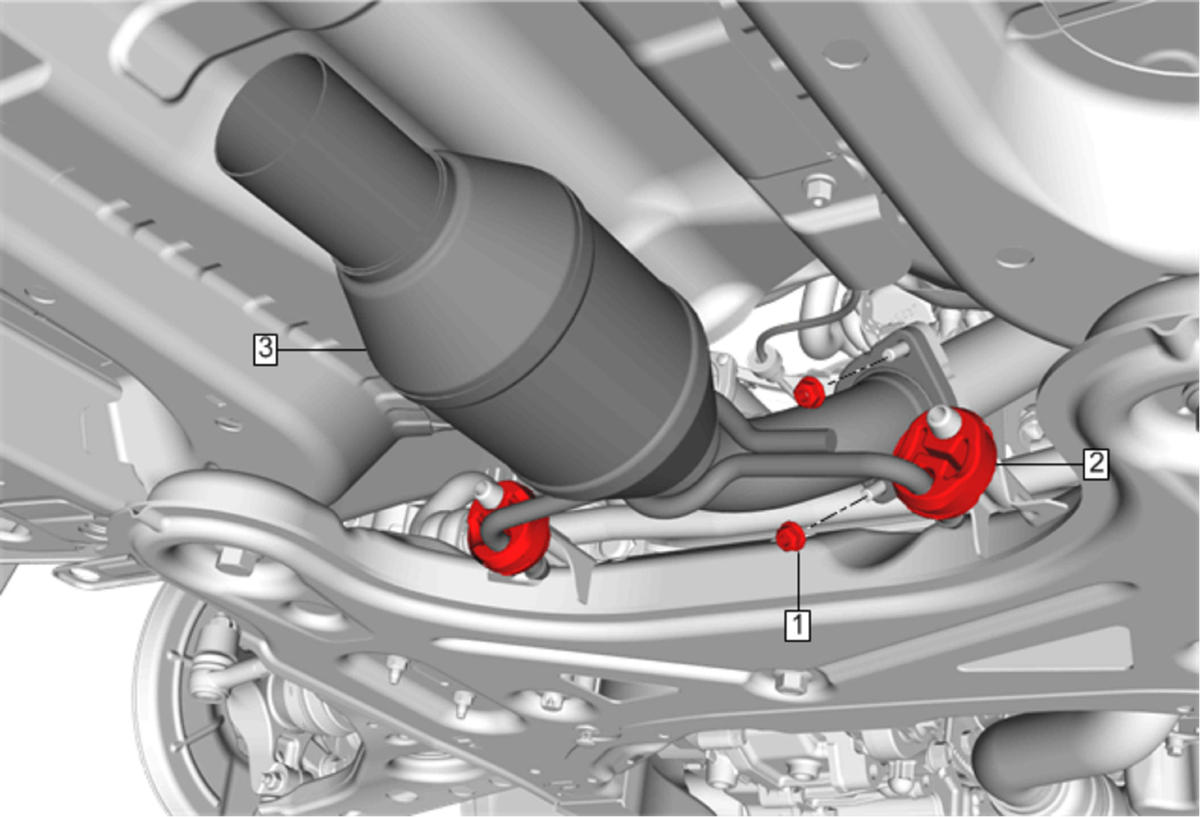

| Callout | Component Name |
|---|---|
|
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Preliminary Procedure Exhaust Muffler Replacement (2H0) Exhaust Muffler Replacement (LUV) Exhaust Muffler Replacement (LE2) Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. |
|
| 1 | Exhaust Front Pipe Nut[2x]
CAUTION:
Refer to Fastener Caution . Tighten 17 N.m (13 lb ft) |
| 2 | Exhaust Isolator[3x] Procedure Clean and lubricate the exhaust isolators for ease of installation. |
| 3 | Warm Up Three-Way Catalytic Converter Procedure Install a NEW gasket. |
