Exhaust Muffler Replacement (2H0)

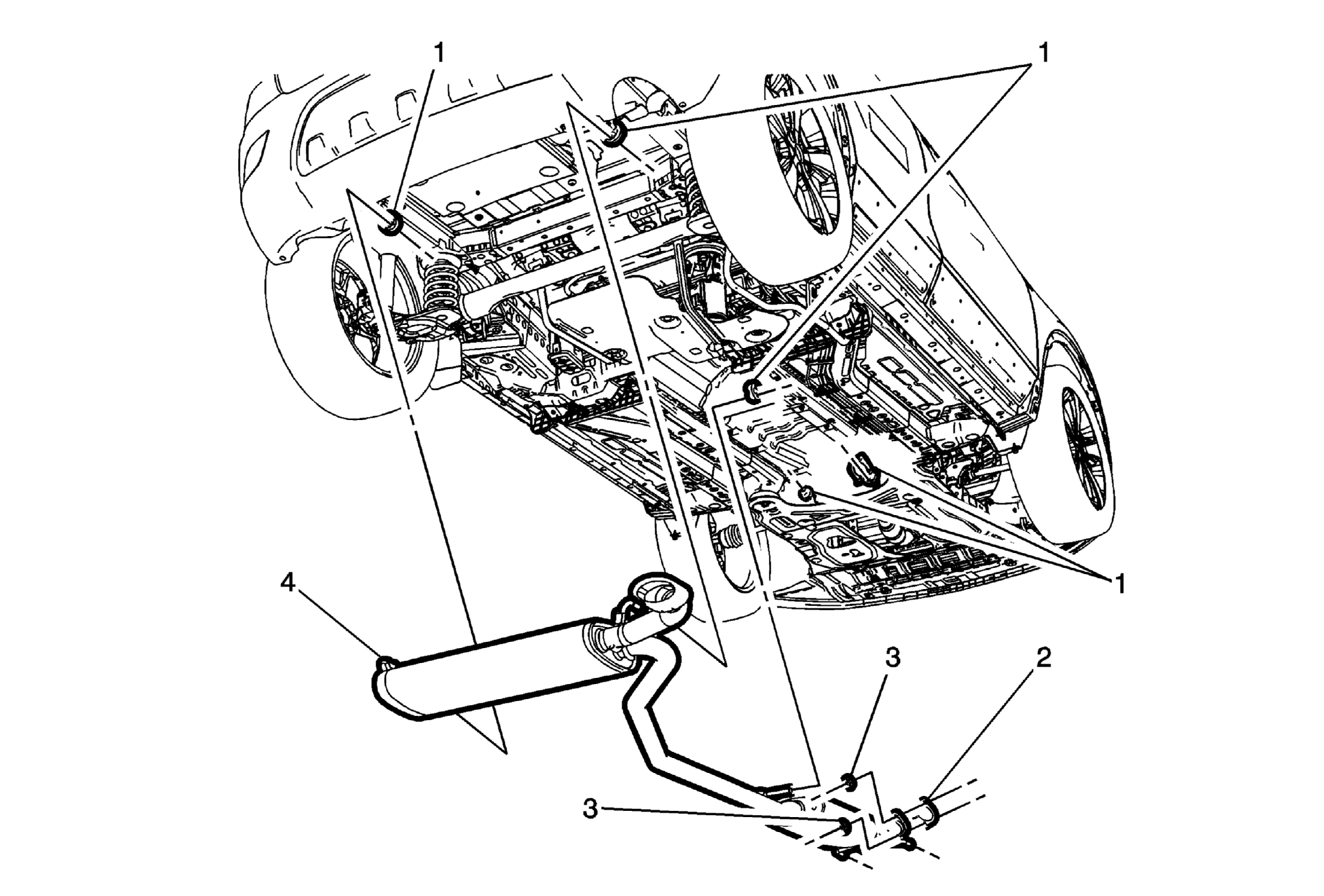

| Callout | Component Name |
|---|---|
|
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. |
|
| 1 | Exhaust Isolator (Qty: 5)
NOTE:
Clean and lubricate the exhaust isolator rods for ease of installation. |
| 2 | Exhaust Gasket
NOTE:
Replace with a NEW gasket. |
| 3 | Exhaust Muffler Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 17 N.m (13 lb ft) |
| 4 | Exhaust Muffler Procedure With the aid of an assistant, lower the exhaust system from the vehicle. |
