Exhaust Muffler Replacement (LE2)

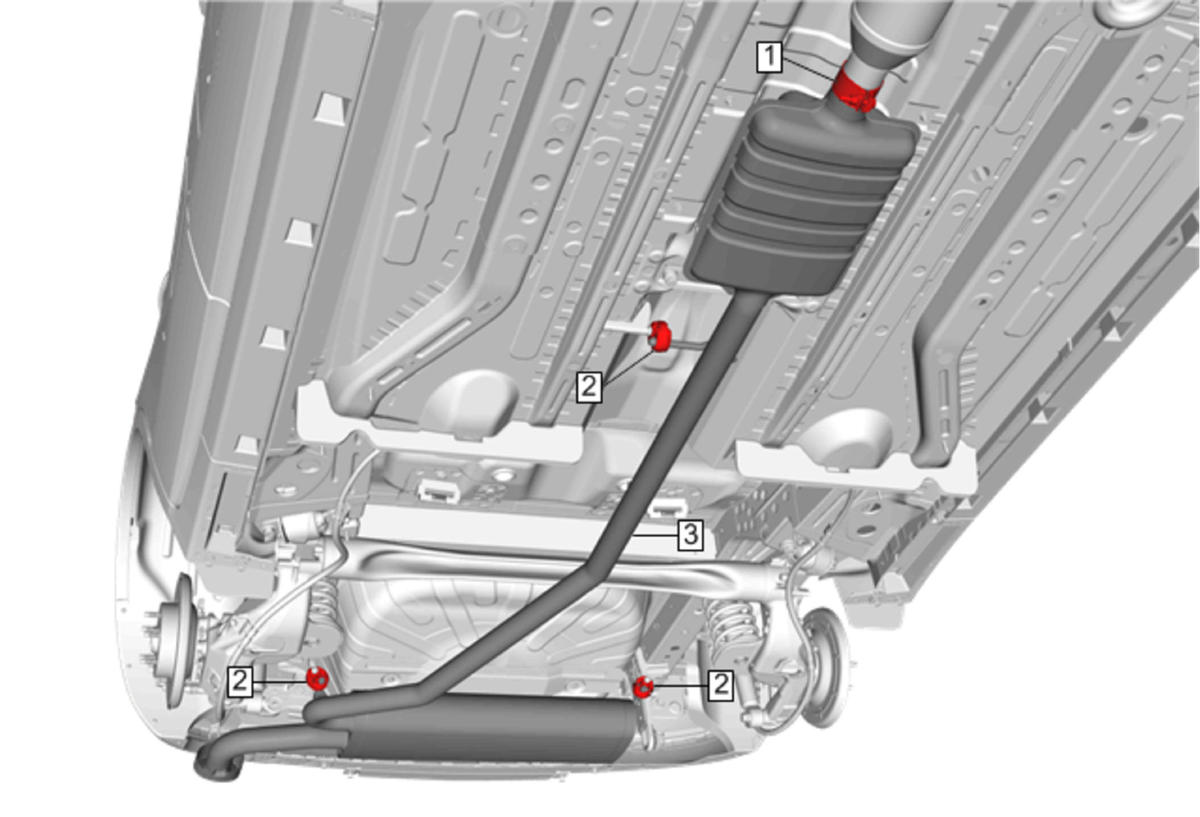

| Callout | Component Name |
|---|---|
|
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Preliminary Procedure Lifting and Jacking the VehicleAvoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. |
|
| 1 | Exhaust Pipe Clamp
CAUTION:
Refer to Fastener Caution . Tighten 50 N.m (37 lb ft) |
| 2 | Exhaust Isolator[3x] Procedure Clean and lubricate the exhaust isolators for ease of installation. |
| 3 | Exhaust Muffler Assembly Procedure Clean and lubricate the exhaust muffler isolator rods for ease of installation. |
