Liftgate Upper Side Trim Finish Panel Replacement

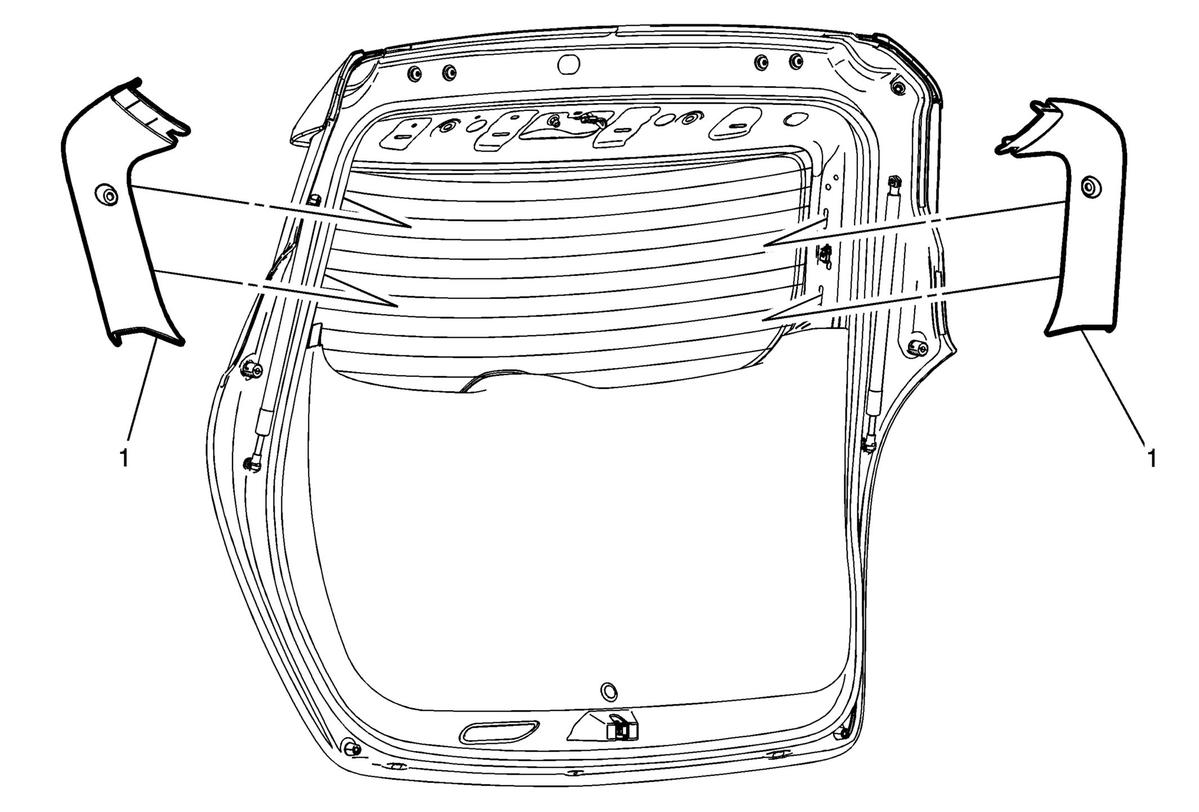

GM2788728

Callout

Component Name

Preliminary Procedure

Remove the liftgate upper center trim finish panel. Refer to Liftgate Upper Center Trim Finish Panel Replacement .
Remove the luggage shade pivot. Refer to Luggage Shade Pivot Replacement (Body Side) Luggage Shade Pivot Replacement (Luggage Shade) Luggage Shade Pivot Replacement (Liftgate) .

1

Liftgate Upper Side Trim Finish Panel Assembly (Qty: 2)
Procedure
The outboard lower end of the liftgate upper side trim finish panel snaps into the liftgate lower trim finish panel.
