Luggage Shade Pivot Replacement (Luggage Shade)

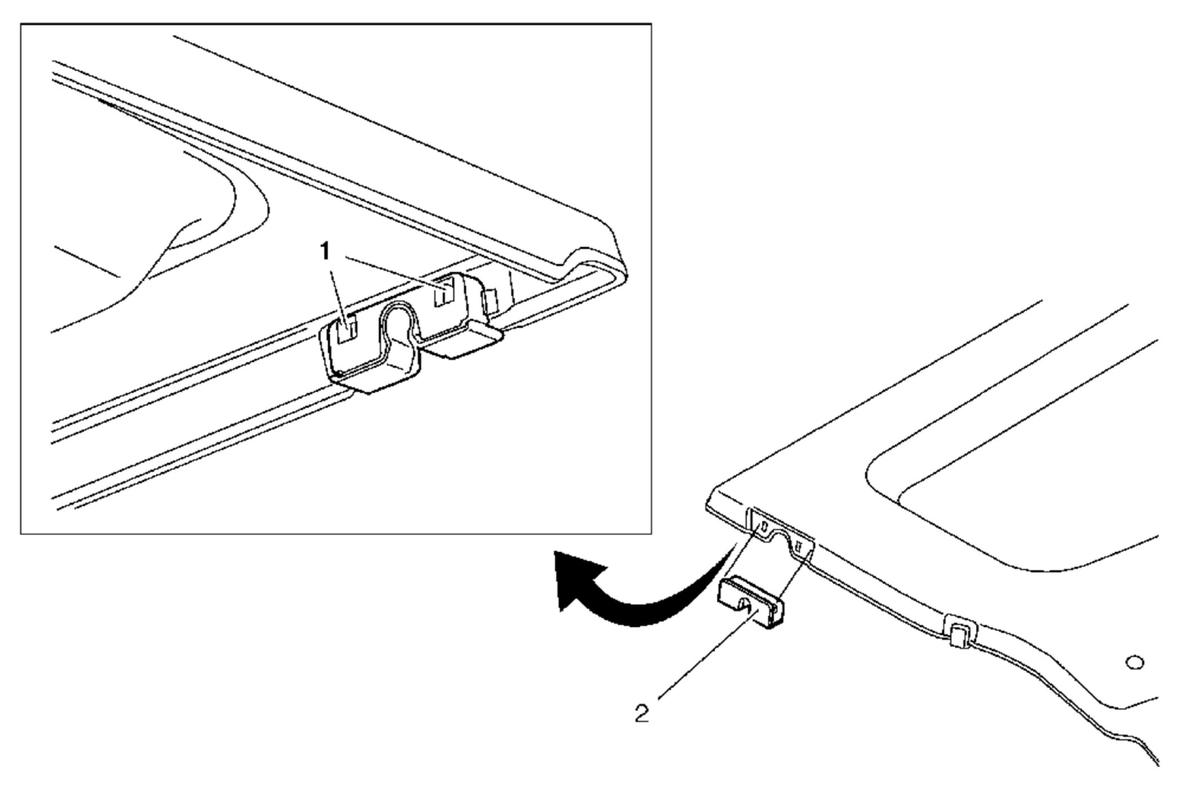

Luggage Shade Pivot Replacement (Luggage Shade)
Callout
Component Name
1
Luggage Shade Pivot Retainer (Qty: 2)
Procedure
Use a flat-bladed tool to release the luggage shade pivot locking retainer from the luggage shade.
2
Luggage Shade Pivot
Procedure
Pull gently the luggage shade pivot to disengage from the luggage shade.
