Luggage Shade Pivot Replacement (Liftgate)

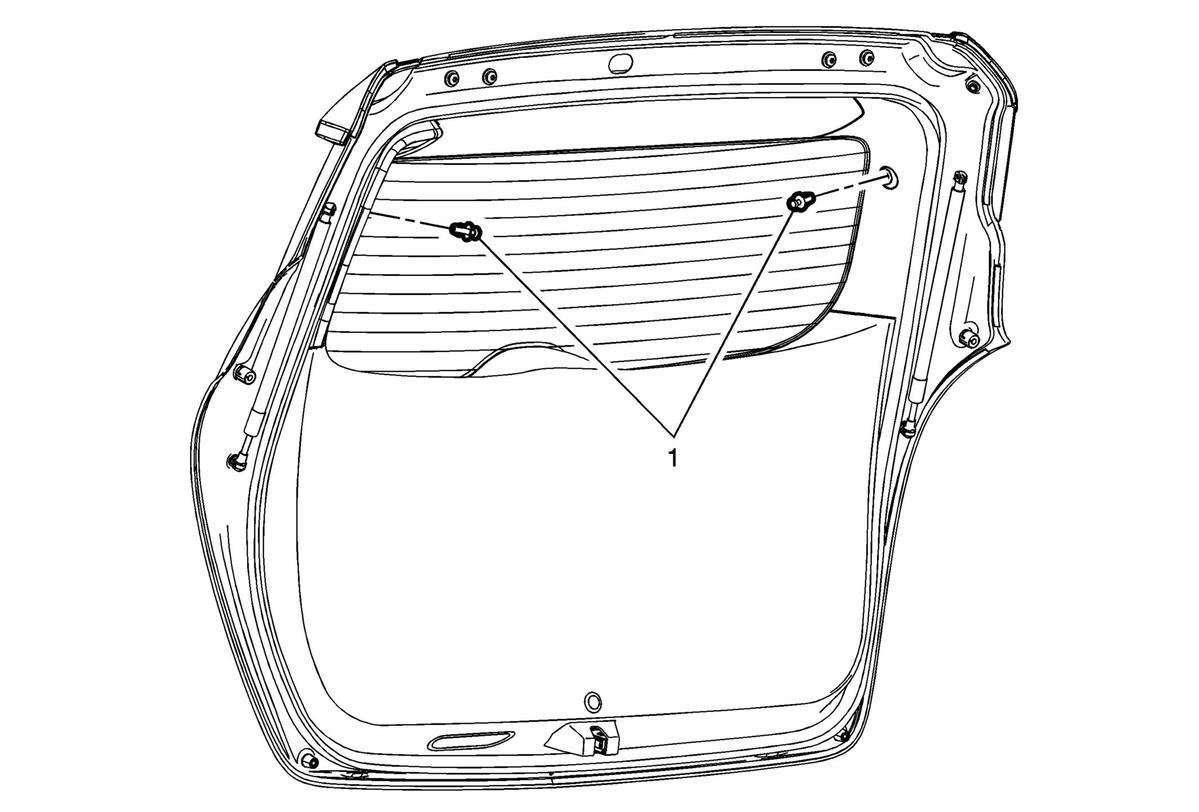

GM2788815
Callout Component Name
1 Luggage Shade Pivot
Procedure
Release the luggage shade strap.
NOTE:

The luggage shade pivots are a one-time use component and will break upon removal.
