Rear End Spoiler Replacement

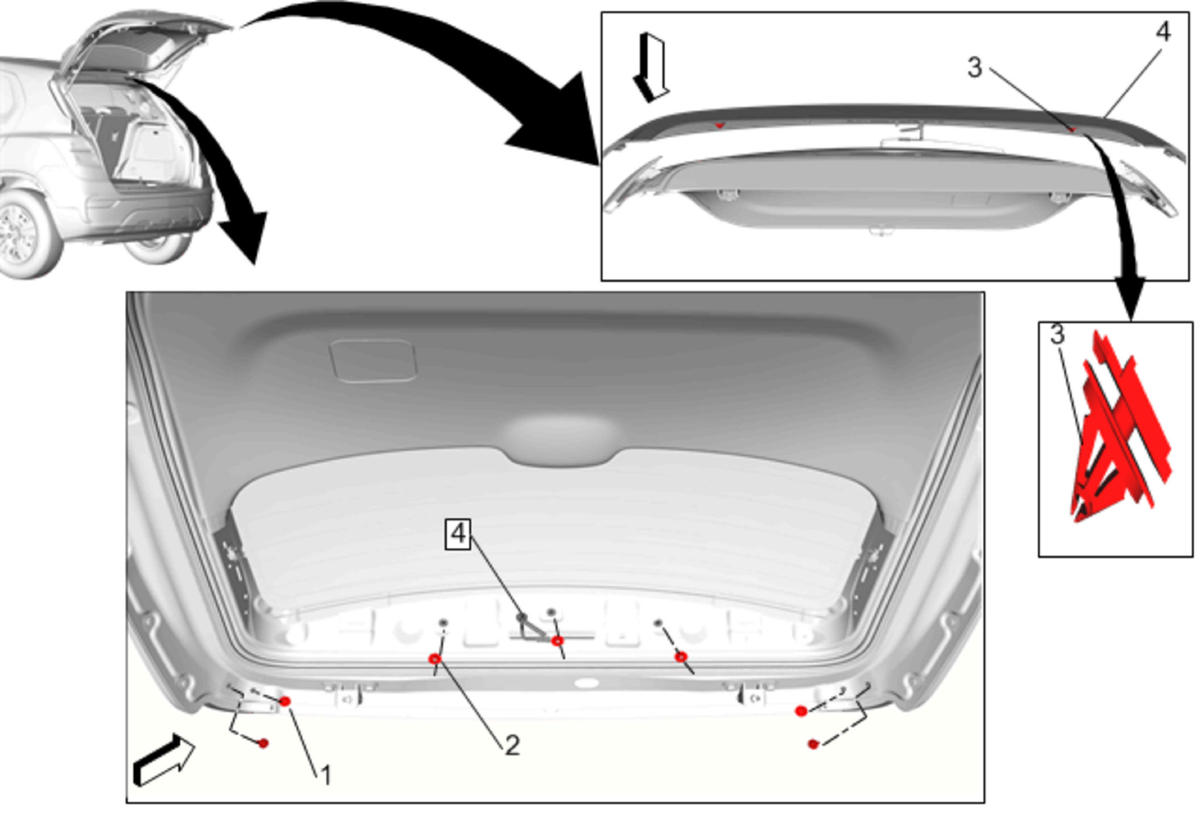

Callout	Component Name
Preliminary Procedures Liftgate Upper Side Trim Finish Panel Replacement Liftgate Side Applique Replacement (Chevrolet) Liftgate Side Applique Replacement (Buick)
1	Rear End Spoiler Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Rear End Spoiler Nut [3x] Tighten 5 N.m (44 lb in)
3	Rear End Spoiler Retainer[2x] Procedure Using the appropriate tool, release the 2 rear end spoiler retainers.
4	Rear End Spoiler Procedure Disconnect the electrical connector. Disconnect the rear window washer hose from the rear window washer nozzle. Transfer components as necessary.
