Liftgate Side Applique Procedure
- The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
- Apply a suitable tape around the liftgate side applique.
- Use a heat gun or equivalent to loosen the tape on the lower section of the liftgate side applique. Use a plastic flat bladed tool to assist in removal.

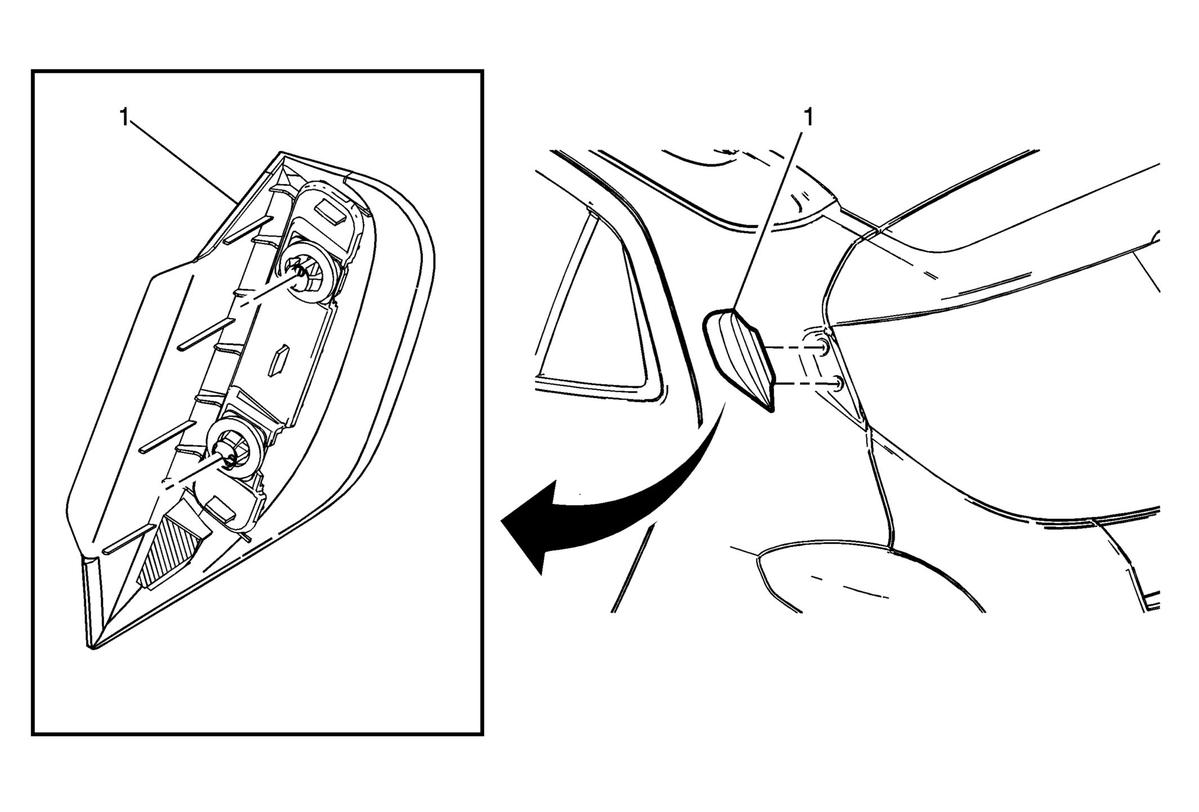

- Using a suitable trim-type release tool start from the top edge and release the 2 retainers.
- Clean any remaining residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe surface dry with a clean lint-free towel.
- When removing protective liner from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
- Using the palm of the hand, apply even pressure to the liftgate side applique to ensure the retainers are seated and full adhesion is made.
|
