Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban, and 2018 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

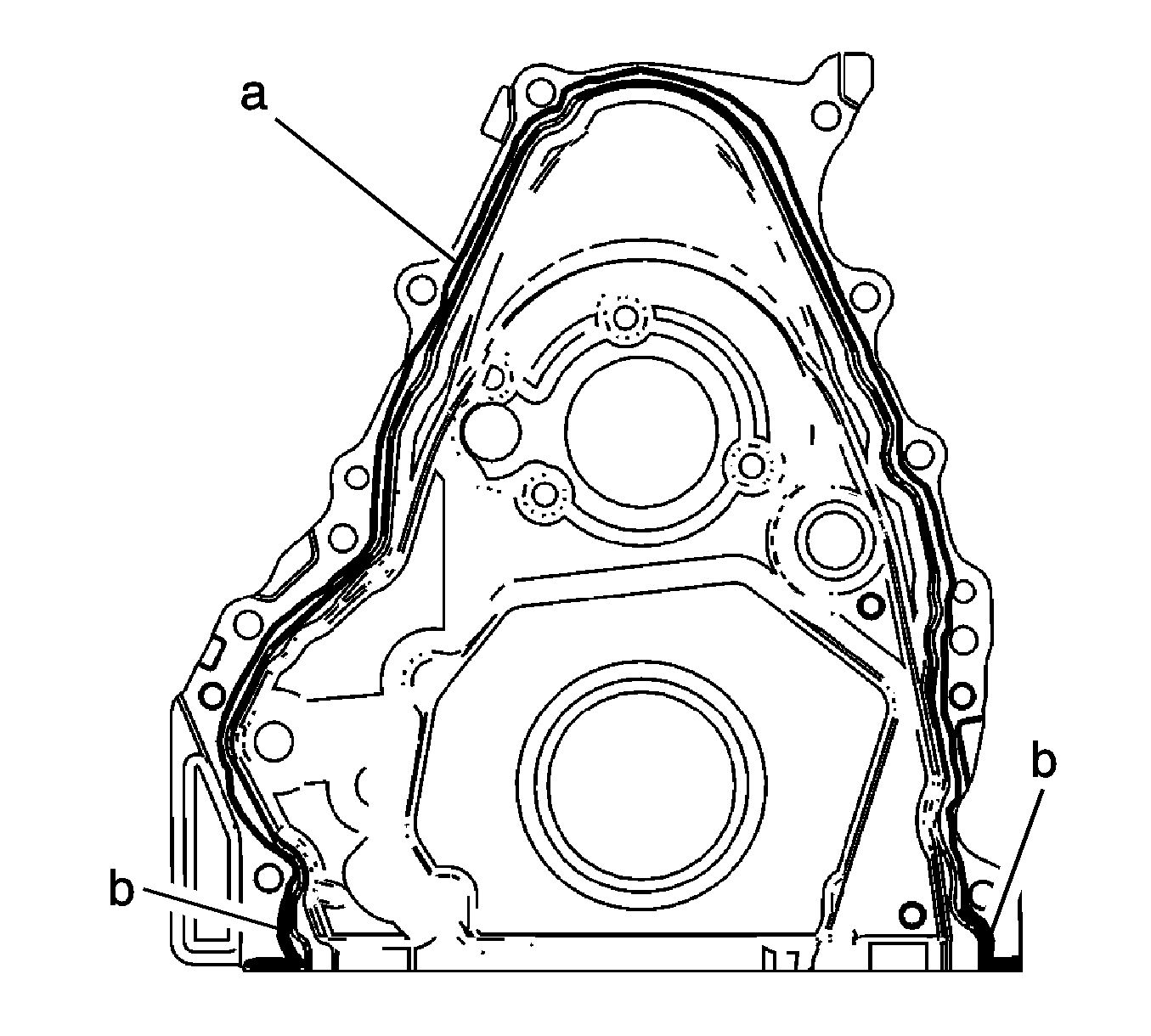

    Fig 1: RTV Sealant Application Areas
    GM3424721Courtesy of GENERAL MOTORS COMPANY
  1. Apply a 3 mm (0.118 in) bead of RTV sealant on the engine front cover as shown (a). Apply a 5 mm (0.197 in) bead of RTV sealant on the engine front cover as shown (b). Refer to Adhesives, Fluids, Lubricants, and Sealers .

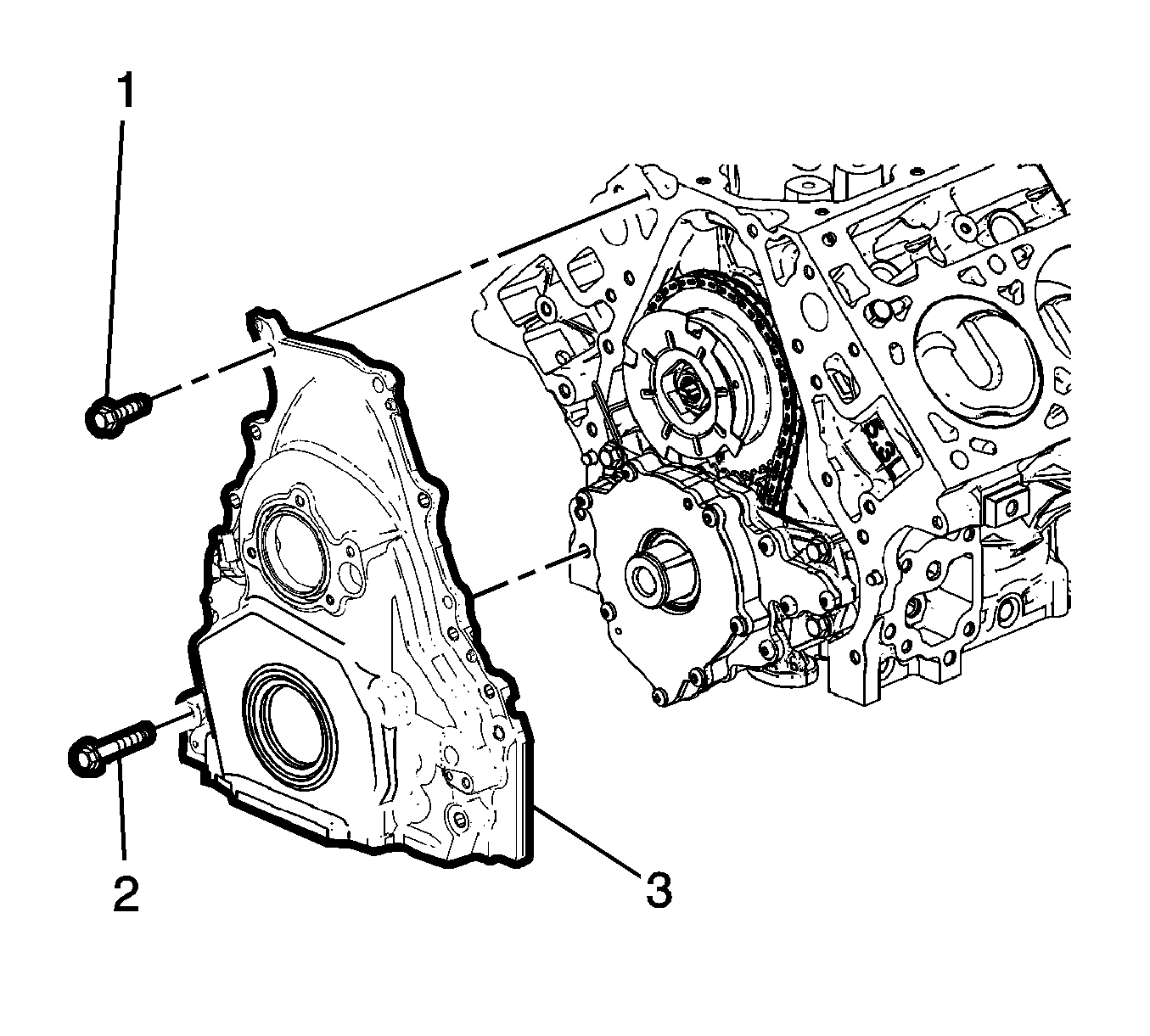

    2. Fig 2: Front Cover And Bolts
    GM3424726Courtesy of GENERAL MOTORS COMPANY
  2. Install the front cover (3).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the front cover bolts (1 and 2).

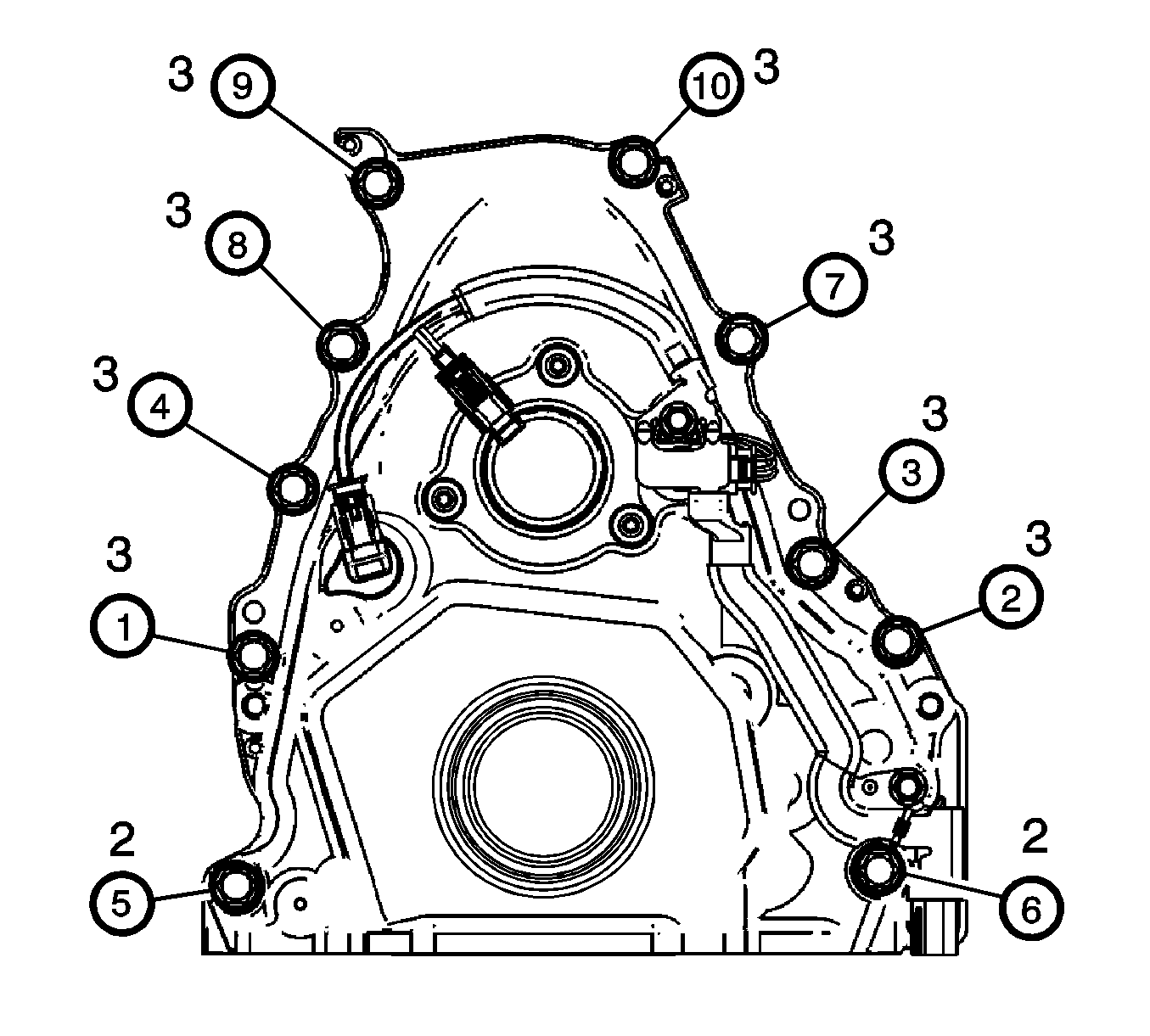

    4. Fig 3: Engine Front Cover Bolt Identification & Tightening Sequence
    GM3423688Courtesy of GENERAL MOTORS COMPANY
  4. Tighten bolts (2 and 3) in sequence as shown above to 25 N.m (18 lb ft).

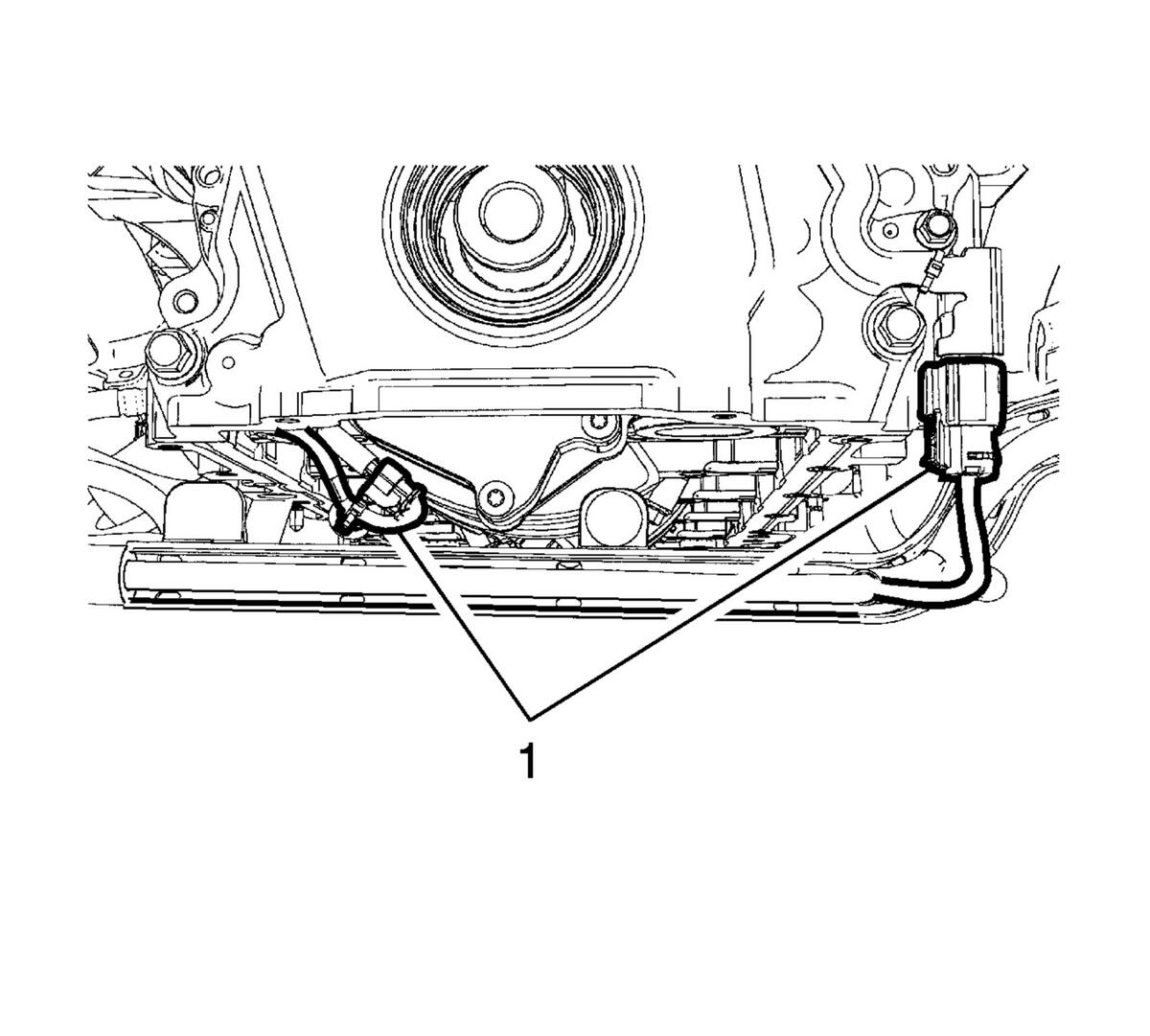

    5. Fig 4: Electrical Connectors
    GM3277662Courtesy of GENERAL MOTORS COMPANY
  5. Connect the electrical connectors (1).
  6. Install the engine coolant manifold. Refer to Engine Coolant Manifold Replacement (L83, L86) .
  7. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  8. Install the A/C compressor. Refer to Air Conditioning Compressor Replacement (L83 L86) .
  9. Install the vacuum pump. Refer to Vacuum Pump Replacement .
  10. Install the upper oil pan. Refer to Oil Pan Replacement .
