Air Conditioning Compressor Replacement (L83 L86)

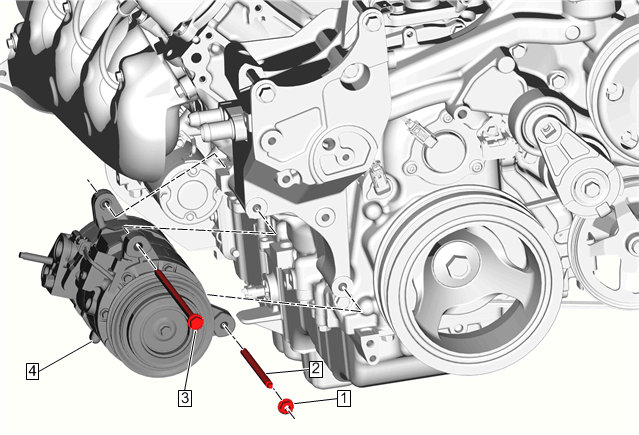

Fig 1: Air Conditioning Compressor, Nut, Bolt And Stud

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Refrigerant Recovery and Recharging (R-134A) Refrigerant Recovery and Recharging (R-1234yf) Air Conditioning Compressor Belt Replacement Remove Air Conditioning Compressor Hose@Air Conditioning Compressor - Air Conditioning Compressor Hose Replacement (L83, L86)
1	Air Conditioning Compressor Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Air Conditioning Compressor Stud Tighten 8 N.m (71 lb in)
3	Air Conditioning Compressor Bolt Tighten 22 N.m (16 lb ft)
4	Air Conditioning Compressor Procedure Disconnect all electrical connectors from the air conditioning compressor. When replacing the air conditioning compressor, balance compressor oil. Air Conditioning Compressor Oil Balancing
