1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate Retaining Ring Measurement

WARNING: This page is about a different car, the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Cadillac Escalade ESV, and 2018 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

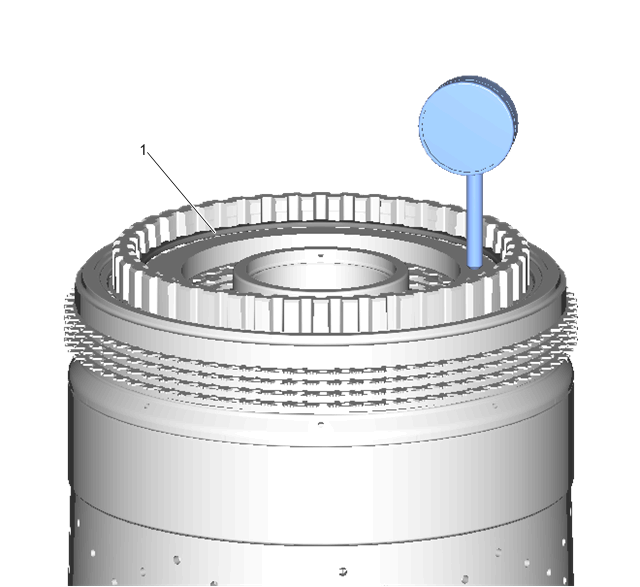

Fig 1: 1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate Retaining Ring

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate Retaining Ring-Selective Procedure Use all of the clutch plates. Using GE-8001 dial indicator, set up the measurement as shown. Zero out the dial indicator, then lift the clutch plate stack upwards and record the measurement. Repeat the measurement every 120 degrees from the measurement in step 2, completing 3 measurements. Find the average of these three measurements from step 2 and step 3. Record this as the clutch travel. Use this number to find the correct clutch backing plate. Clutch Backing Plate Retaining Ring Specifications Special Tools GE-8001 Dial Indicator Equivalent regional tools:Special Tools

Callout

Component Name

1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate Retaining Ring-Selective

Procedure

Use all of the clutch plates. Using GE-8001 dial indicator, set up the measurement as shown.
Zero out the dial indicator, then lift the clutch plate stack upwards and record the measurement.
Repeat the measurement every 120 degrees from the measurement in step 2, completing 3 measurements.
Find the average of these three measurements from step 2 and step 3. Record this as the clutch travel. Use this number to find the correct clutch backing plate. Clutch Backing Plate Retaining Ring Specifications

Special Tools
GE-8001 Dial Indicator
Equivalent regional tools:Special Tools
