Generator Bracket Replacement (L83, L86)

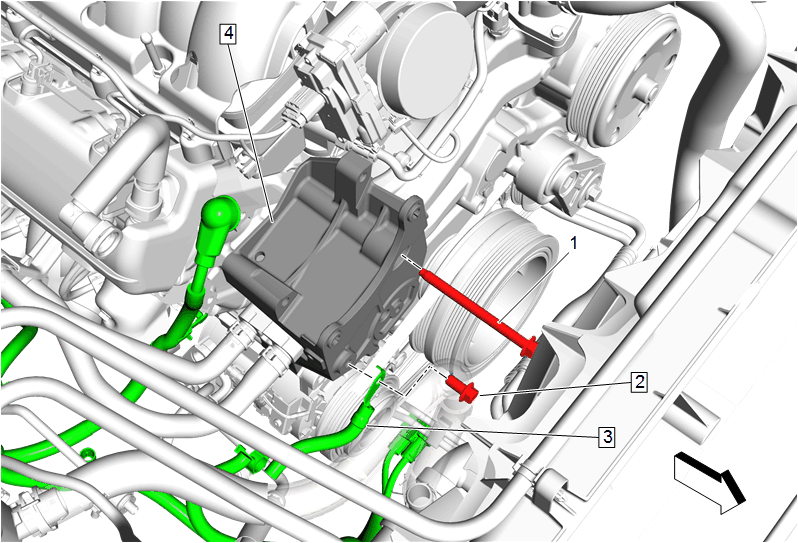

Fig 1: Generator Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Generator Replacement (L83, L86) Reposition the air conditioning compressor from the mounted position. Air Conditioning Compressor Replacement (L83 L86)
1	Generator Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Generator Battery Control Wiring Harness Ground Cable Fastener Tighten 45 N.m (33 lb ft)
3	Generator Battery Control Wiring Harness Ground Cable
4	Generator Bracket
