Generator Replacement (L83, L86)

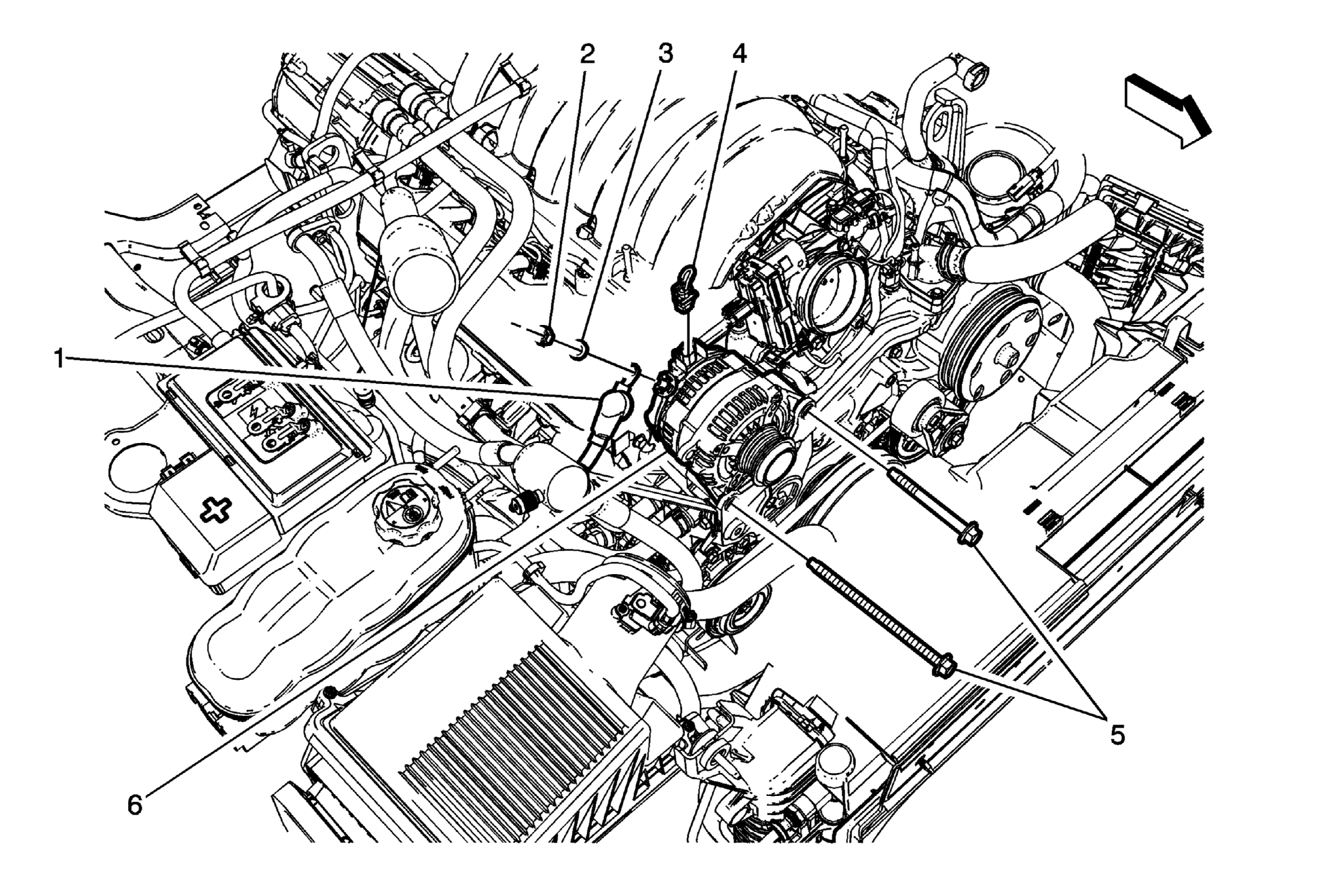

Fig 1: Generator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery) Battery Negative Cable Disconnection and Connection (Single Battery) . Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
1	Protective Boot
2	Generator Battery Control Wiring Harness Cable Fastener CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
3	Generator Battery Control Wiring Harness Cable
4	Engine Wiring Harness Connector
5	Generator Mounting Fasteners Tighten 50 N.m (37 lb ft)
6	Generator
