Front Seat Center Armrest Hinge Finish Cover Replacement

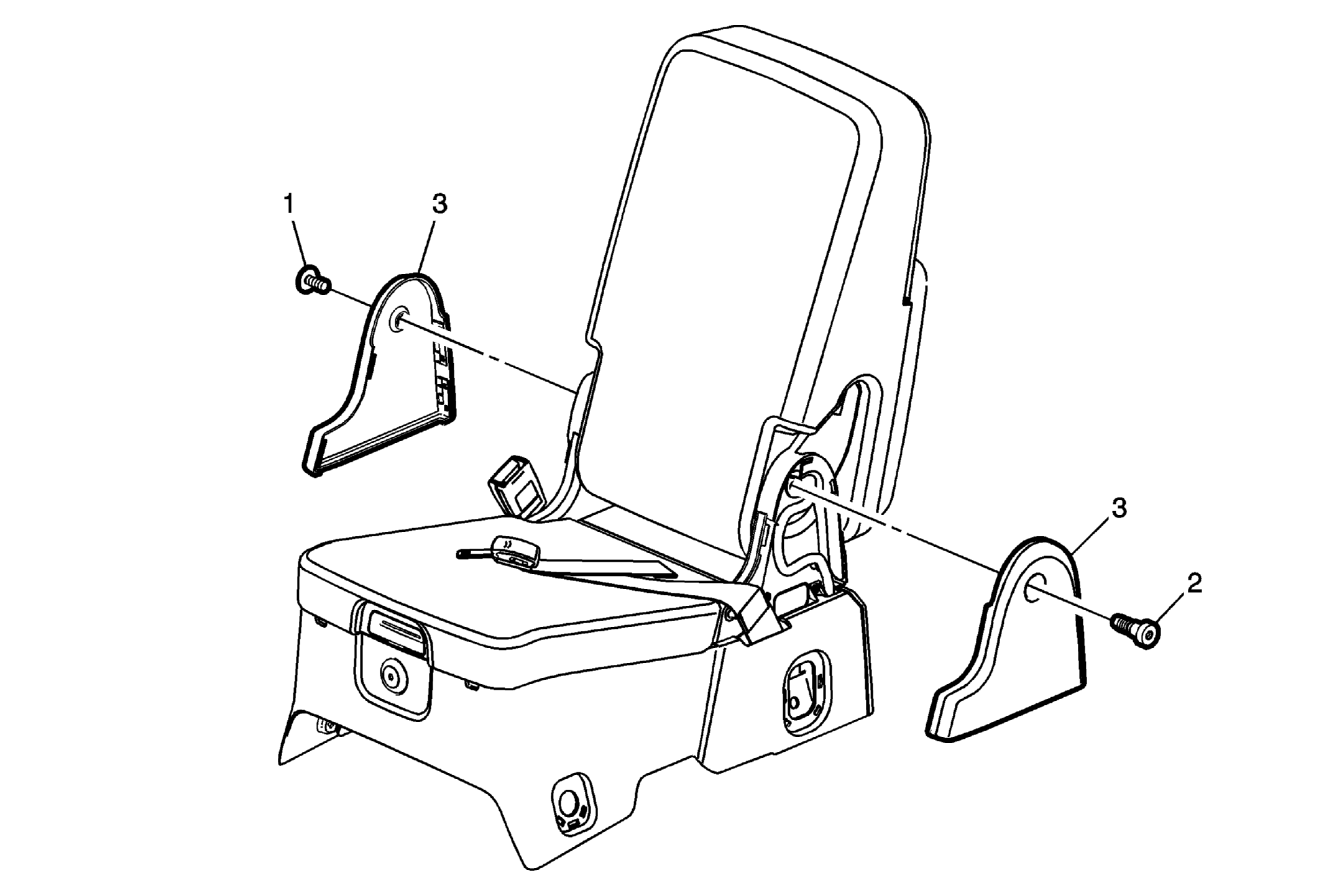

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front center seat. Refer to Front Center Seat Removal and Installation . |
|
| 1 | Front Seat Center Armrest Hinge Finish Cover Cap
NOTE:
Use a trim tool to aid in the removal of the push in cap. |
| 2 | Front Seat Center Armrest Hinge Finish Cover Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Front Seat Center Armrest Hinge Finish Cover (Qty: 2) Procedure Use a flat bladed tool to release the plastic tabs attaching the finish cover to the inner finish cover. |
