Front Seat Cushion Center Pad Replacement

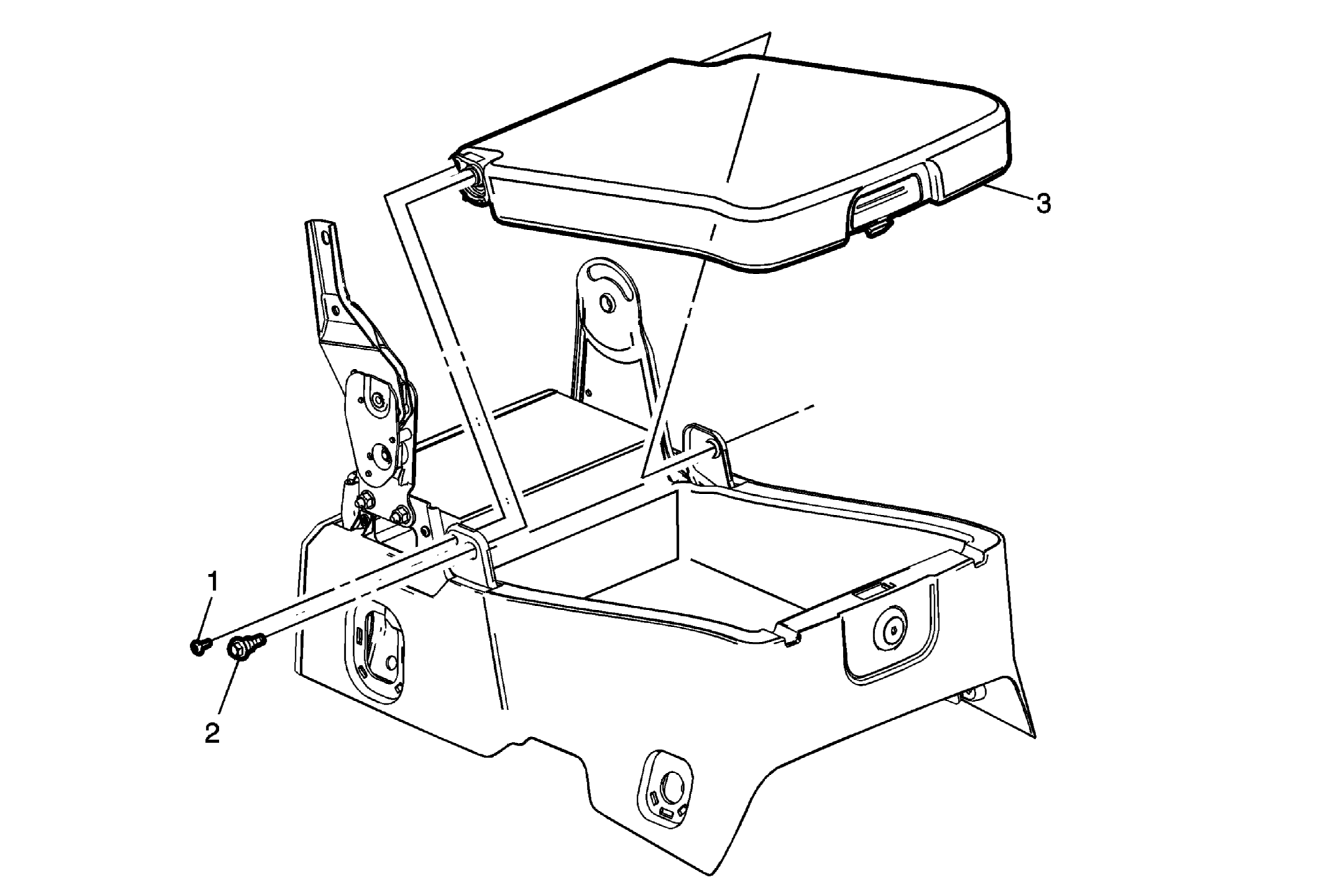

Fig 1: Front Seat Cushion Center Pad

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front seat center armrest hinge finish inner cover. Refer to Front Seat Center Armrest Hinge Finish Inner Cover Replacement .
1	Front Seat Cushion Center Pad Screw CAUTION: Refer to Fastener Caution .
2	Front Seat Cushion Center Pad Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
3	Front Seat Cushion Center Pad
